4.8.2 Structure

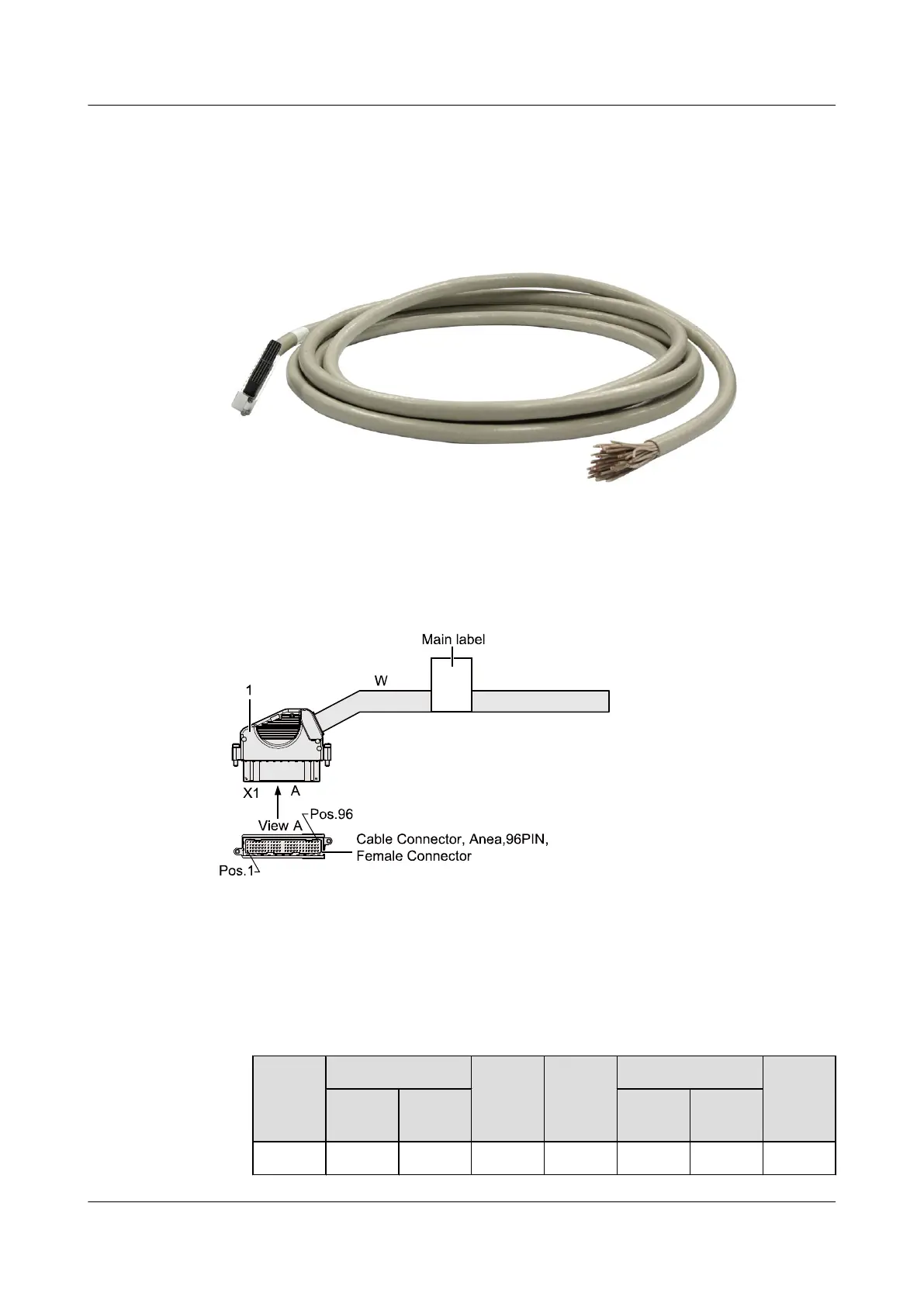

The 16xE1 cable uses the Anea 96 connector on one end, as shown in Figure 4-7.
Figure 4-7 Appearance of the 16×E1 cable
Figure 4-8 shows the structure of the 16xE1 cable.
Figure 4-8 Structure of the 16×E1 cable
l 75-ohm 16×E1 cable wiring
Table 4-17 describes the wiring of the 75-ohm 16xE1 cable. In the table, Tip indicates the
anode and Ring indicates the cathode, and the pairs are numbered from 1 to 32.
Table 4-17 75-ohm 16×E1 cable wiring
Pin
Cable Remar
ks
Pin Cable Remar
ks
Wire Pair
No.
Wire Pair
No.
1 Tip 1 R0 25 Tip 2 T0
