7.2.2.11.1 Adding a Female Fast
Connector(Pressfit Type) to the RRU Power
Cable on the RRU Side
This section describes the procedure for adding a female fast connector(Pressfit Type) to the RRU
power cable on the RRU side.
Context
Figure 1 shows the cable diagram on labels.

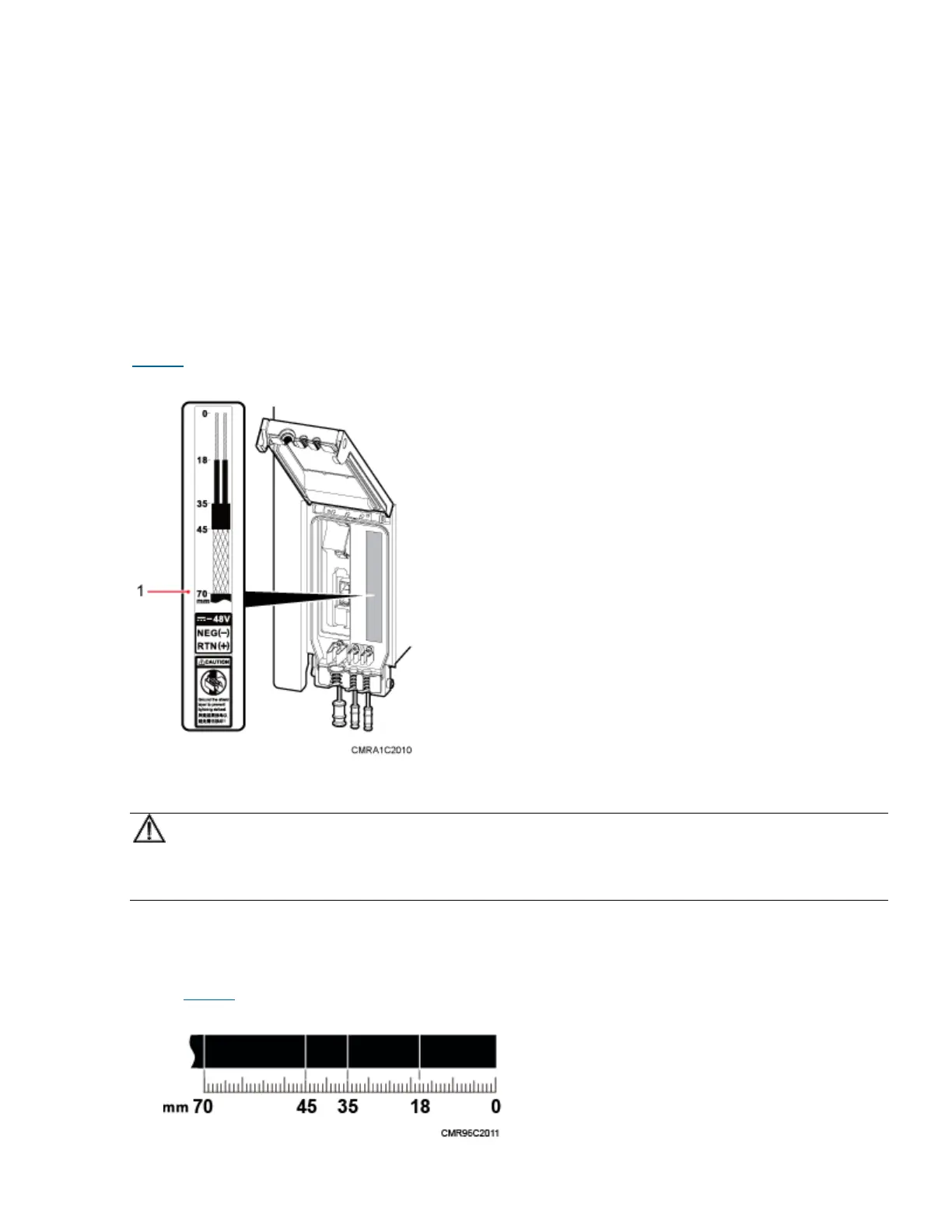

Figure 1 Cable diagram on labels
(1) Cable diagram on labels
NOTICE:
Prepare a female fast connector (Pressfit Type) to the RRU power cable on the RRU side by strictly
following the following operations. Otherwise, damage to the RRU or personal injury may occur.
Procedure
1. Determine the length of the power cable for different operations based on the labels, as shown
in Figure 2.
Figure 2 Determining the length of the power cable
