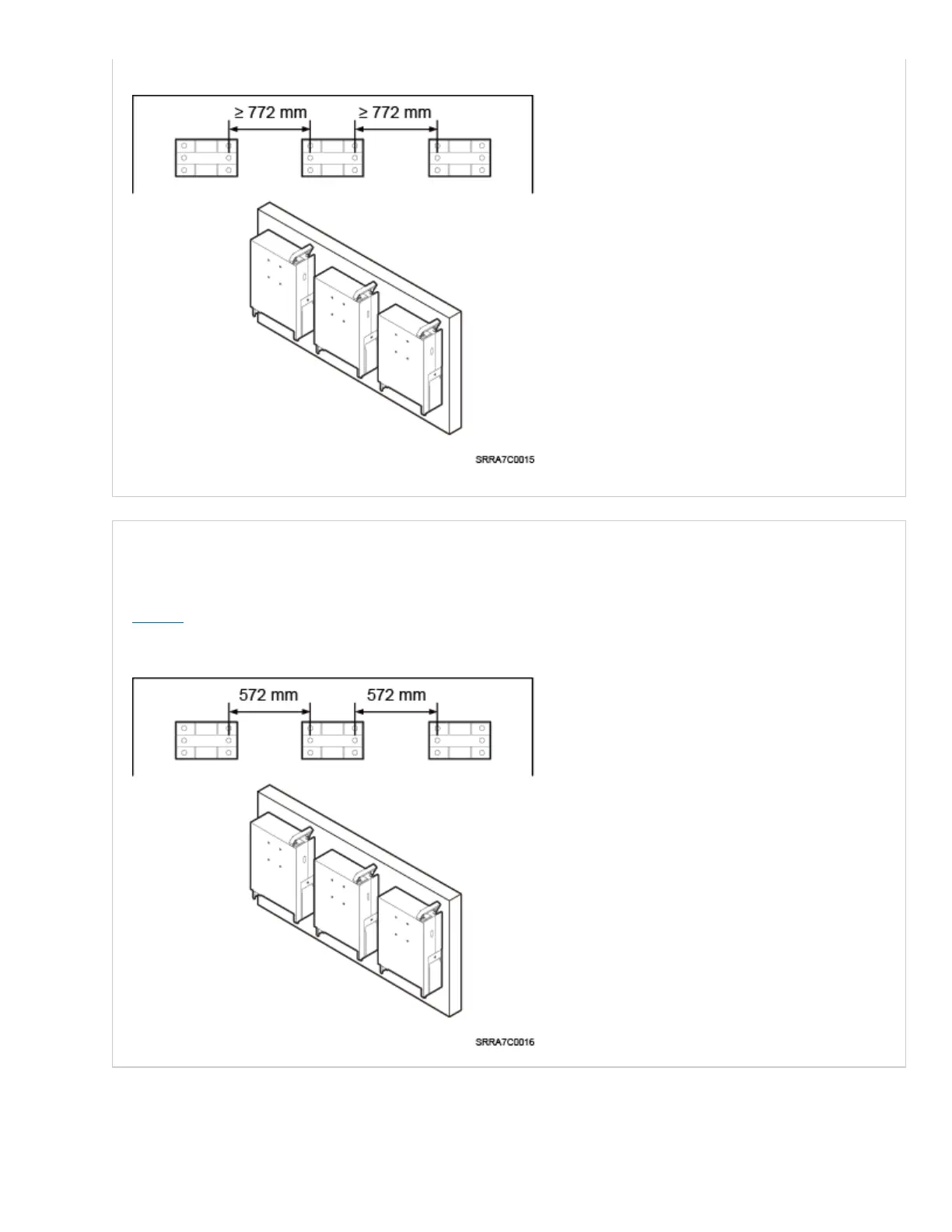

Figure 3 Recommended clearances for multiple RRUs installed in standard or reverse mode on a wall

Minimum Clearances for Multiple RRUs Installed in Standard or Reverse Mode on

a Wall

Figure 4 shows the minimum clearances for multiple RRUs installed in standard or reverse mode on a

wall.

Figure 4 Minimum clearances for multiple RRUs installed in standard or reverse mode on a wall
