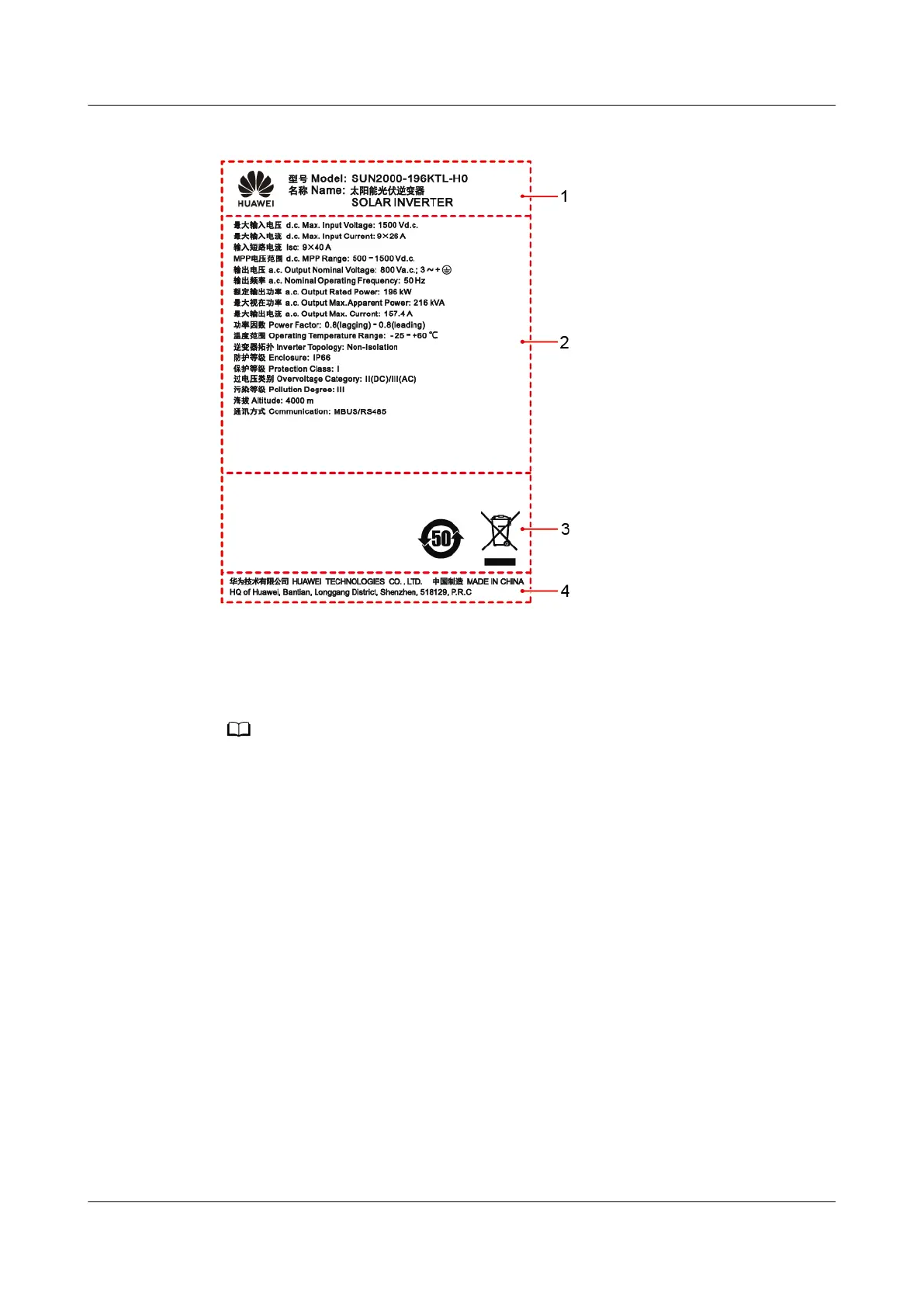

Figure 2-5 Nameplate (SUN2000-196KTL-H0 is used as an example)
(1) Trademark and product model (2) Important technical specications
(3) Compliance symbols (4) Company name and country of
manufacture
The nameplate gure is for reference only.
2.4 Working Principles
2.4.1 Circuit Diagram
The inverter receives inputs from 18 PV strings. Then the inputs are grouped into
nine MPPT circuits inside the inverter to track the maximum power point of the PV
strings. The DC power is then converted into three-phase AC power through an
inverter circuit. Surge protection is supported on both the DC and AC sides.
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 2 Overview
Issue 07 (2021-07-08) Copyright © Huawei Technologies Co., Ltd. 14
