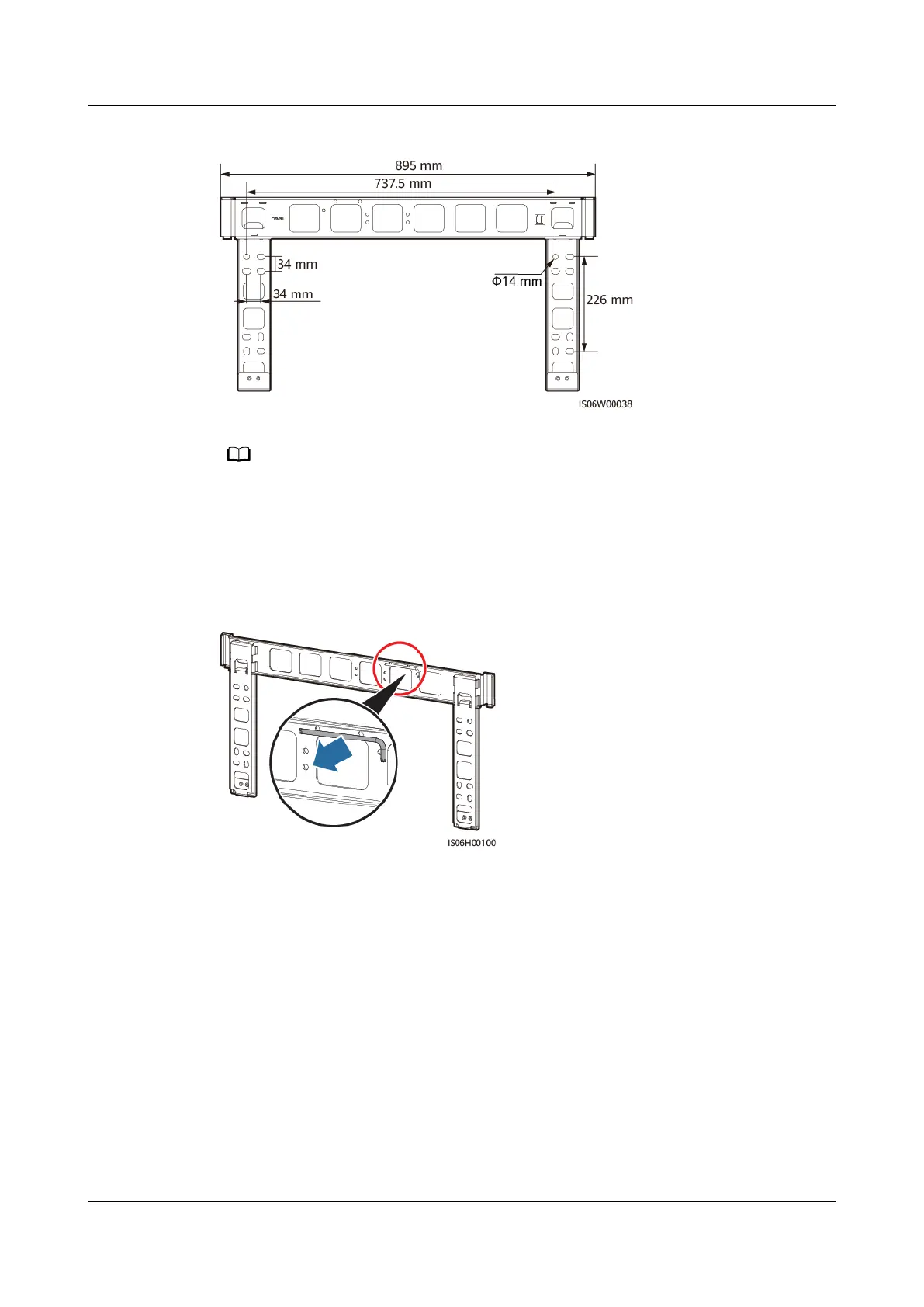

Figure 4-7 Mounting bracket dimensions
The inverter mounting bracket has four groups of tapped holes, each group containing four
tapped holes. Mark any hole in each group based on site requirements and mark four holes
in total. The two round holes are recommended.
Before installing the mounting bracket, remove the security torx wrench from the
mounting bracket and set it aside.
Figure 4-8 Removing a security torx wrench
4.4.1 Support-mounted Installation
Support-mounted Installation
Step 1 Install the mounting bracket.
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 4 Installation
Issue 07 (2021-07-08) Copyright © Huawei Technologies Co., Ltd. 25
