WA603DE & WA653DE
Fat AP Configuration Guide 3 Service Configuration
Issue 02 (2012-04-19) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
12

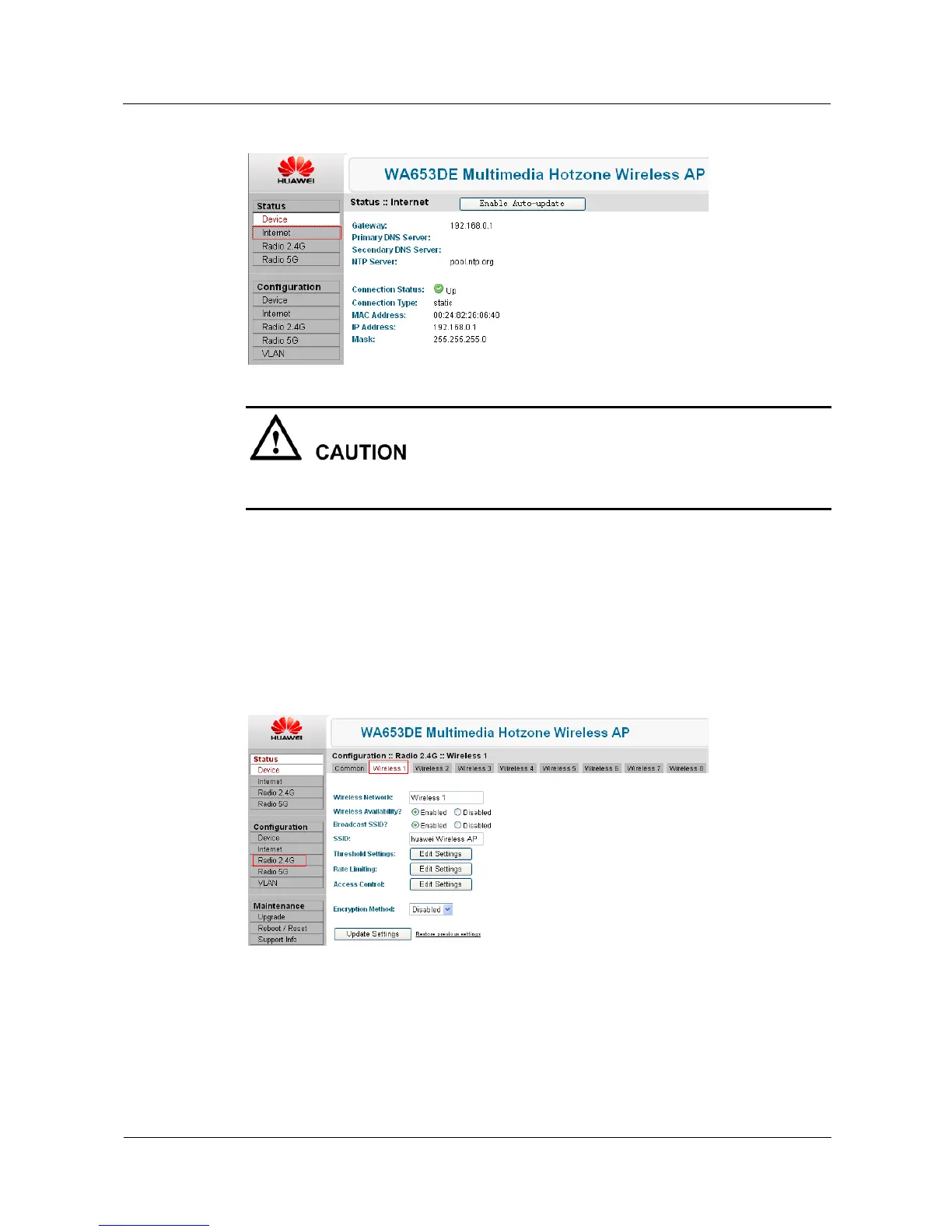

Figure 3-6 Viewing the IP settings
You can click Release DHCP to release the current IP address and click Renew DHCP to
obtain another IP address from the DHCP server only when the connection mode is DHCP.
3.3 Configuring the WLAN
Choose Configuration > Radio 2.4G (or Radio 5G) from the left navigation tree, click a
Wireless # tab, and configure the parameters, as shown in Figure 3-7.
The symbol # represents 1 to 8 for a single-frequency AP and 1 to 16 for a dual-frequency AP.
Figure 3-7 Configuring wireless parameters
3.3.1 (Optional) Configuring the Threshold Parameters
If you change a threshold parameter to an improper value, connecting to the wireless network
may fail. Therefore, do not change the default threshold settings unless you are an
experienced administrator.
