WA603DE & WA653DE
Fat AP Configuration Guide 3 Service Configuration
Issue 02 (2012-04-19) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
19
The symbol # represents 1 to 8 for a single-frequency AP and 1 to 16 for a dual-frequency AP.
You can click Enable Auto-update to enable the function of automatically updating the
settings.

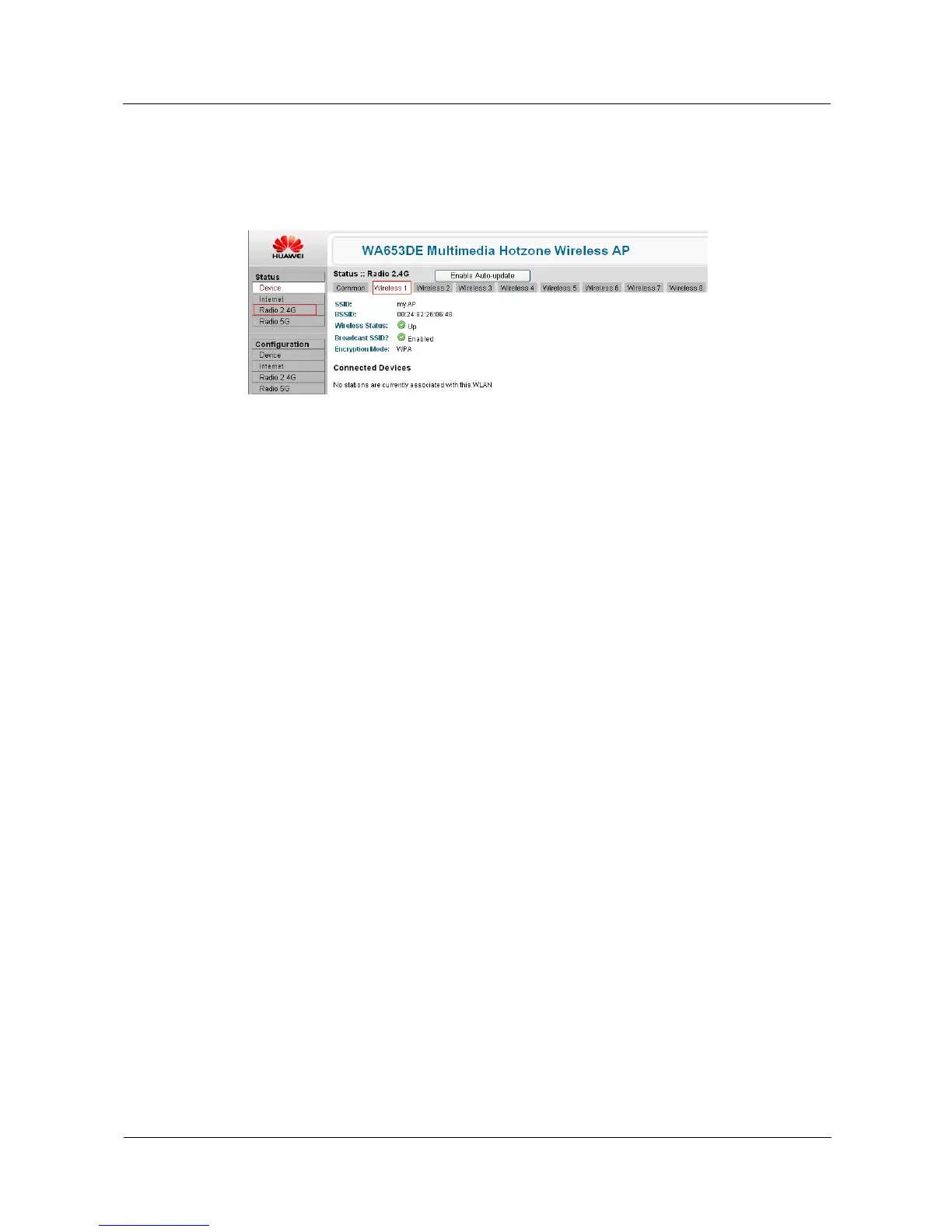

Figure 3-14 Viewing the radio settings
3.4 Configuring VLAN IDs
APs access network resources according to the VLAN to ensure access security.
STAs that are connected to APs are added to different VLANs.
z
The VLAN ID for the STAs using IEEE 802.1X authentication is configured on the port
of the Radius server.
z
The VLAN ID for the STAs that do not use IEEE 802.1X authentication is allocated by
the VAP.
z
The default VLAN ID for STAs is 1.
z
When the VLAN function is enabled on a WLAN network, VLAN IDs in the received
and sent packets must be the same and packets without VLAN ID or with an unknown
VLAN ID are discarded.
z
If the VLAN function is disabled, the AP does not add any VLAN ID to transmitted
packets and ignore the VLAN ID in the received packets.
To configure the VLAN, perform the following operations:
1. Choose Configuration > VLAN from the left navigation tree, as shown in Figure 3-15.
