24 Husqvarna service manual 104 72 30-26

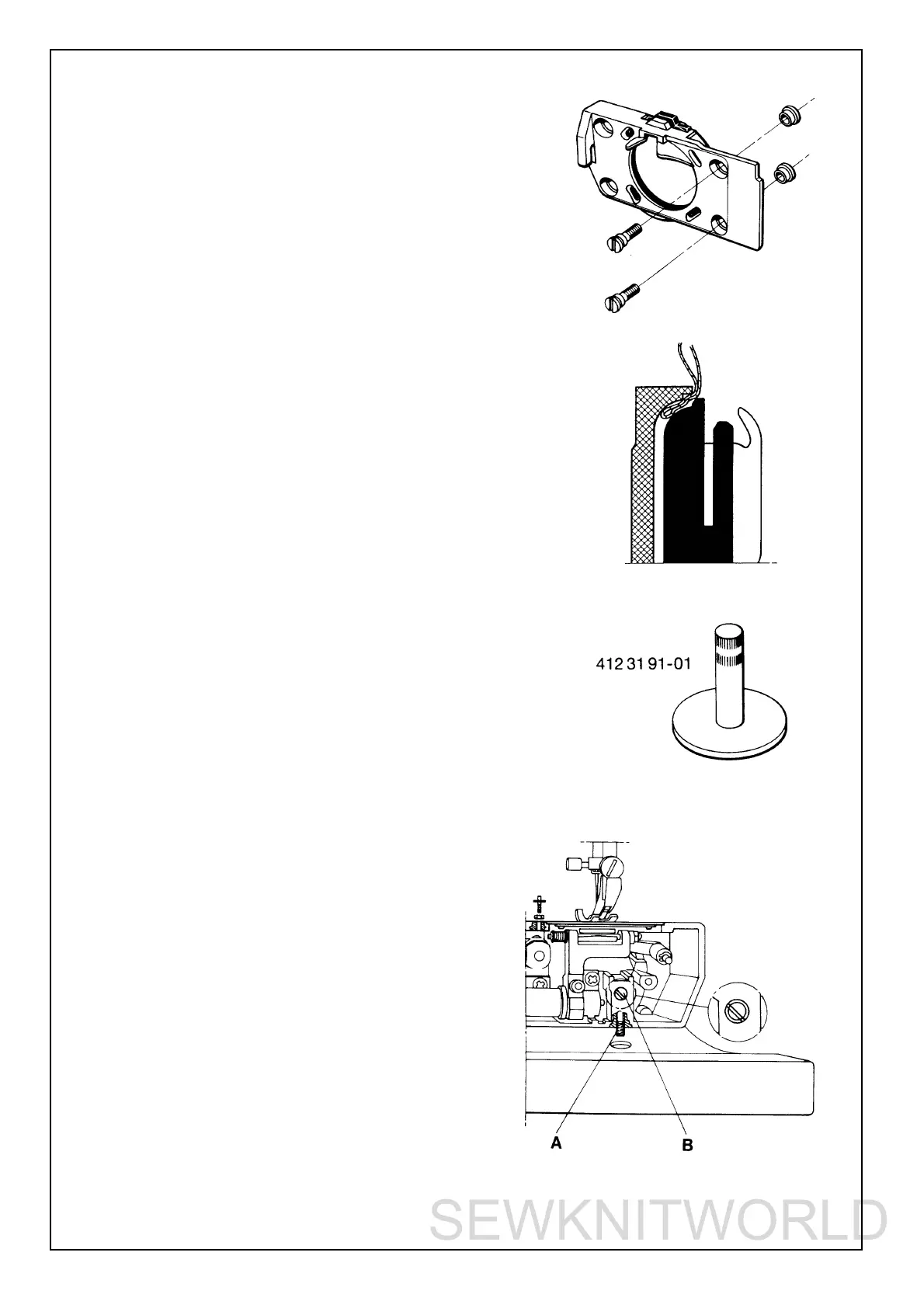

2 The gap between the hook cover and driver
The hook cover is mounted on four fixed supports in
the arm. On those two on the right there are distance
washers.
The distance between the hook cover and the driver
should be so big that the thread can pass freely on both
sides of the hook.
Requirements
The gap between the hook cover and the driver should
be such that when the hook is exchanged for the gauge
411 16 49-01, the gauge should have no play but must
be turnable.
Adjustment
Undo the screws which hold the hook cover.
Exchange the hook for the gauge and replace
the hook cover.
Undo the screw (A) for the hook shaft and shift
the shaft (B), without turning it, to the correct position.
Tighten the screw.
Comment
The shaft (B) is eccentrically mounted and if it is
turned it will affect the play in the hook gear.
Thereafter check:
The gap between the hook and the needle (P.28).
Setting of the stitch plate in relation to the needle, (P.29).
