104 72 30-26 Husqvarna service manual 29

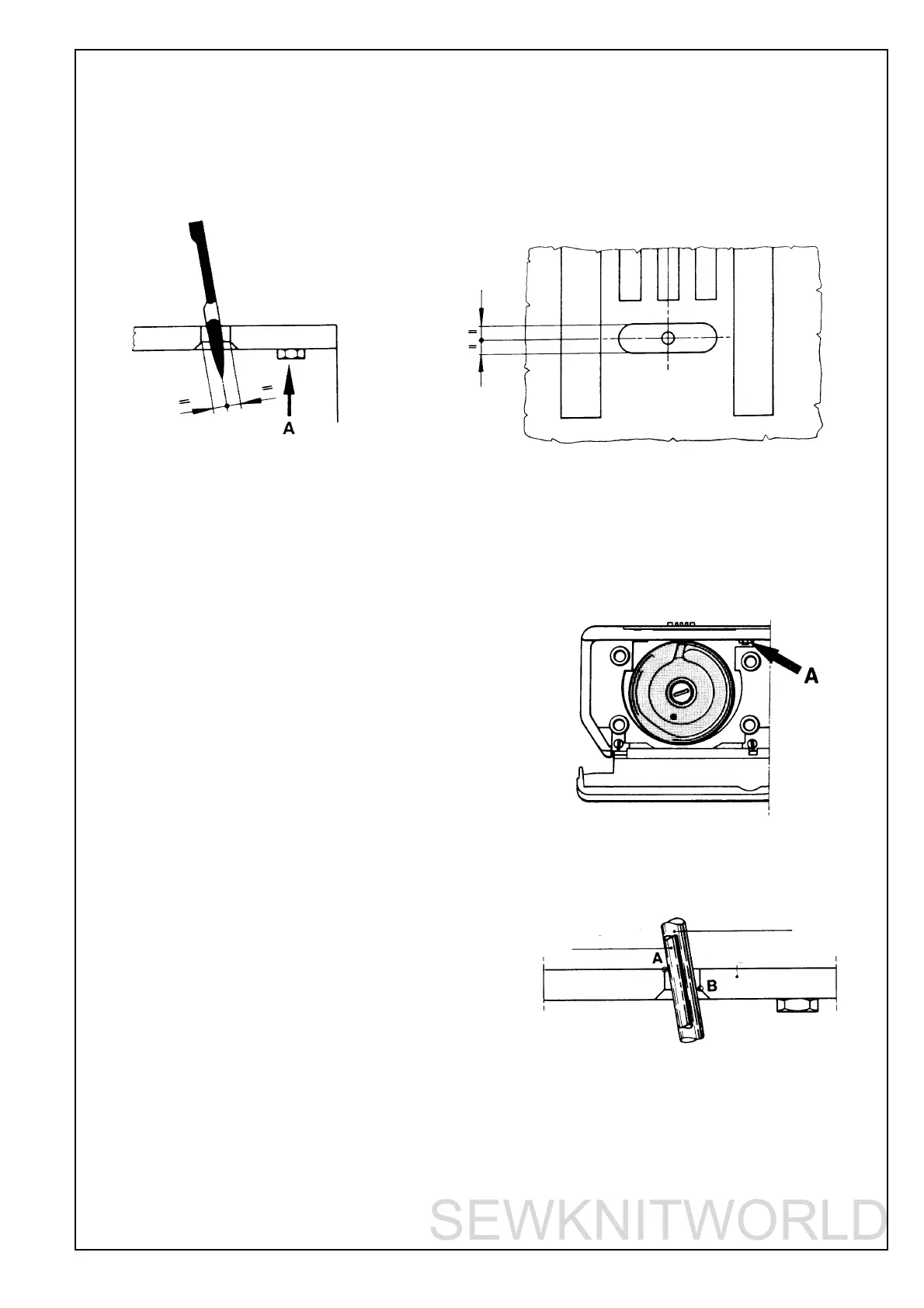

8Setting the stitch plate in relation to the needle (in the feeding direction)
Requirements
The stitch plate must be centred in relation to the needle in the feeding direction.
Adjustment
Insert a new needle 90.
Adjust the stitch plate to the needle.
Loosen the nut (A) on the underneath of the arm.
Adjust the stitch plate to the correct position.
Fix the stitch plate by hand and tighten the nut.
Comments Needle 120
The gap between the centre line of the needle and the Needle 80
flat part of the needle base varies with the thickness of Stitch plate
the needle.
To enable the needle 120 to move freely from the front
edge of the underneath of the needle hole, set the stitch
plate so that the needle 90 is between points (A) and (B).
Needle 80 will lie slightly behind the centre of the needle
hole.
NOTE! The angled position of the needle.
