INSTALLATION
4. Check that all parts for the installation are
included. The numbers in brackets refer to the
component illustration. See 2.1 What is what? on
page 11.
• Robotic lawnmower
• Charging station (10)
• Loop wire for boundary loop and
guide wire (22)
• Power supply (21)
• Low voltage cable (31)
• Pegs (24)
• Connectors for the loop wire (23)
• Screws for the charging station (26)
• Measurement gauge (27)
• Couplers for the loop wire (25)
• Cable markers (29)

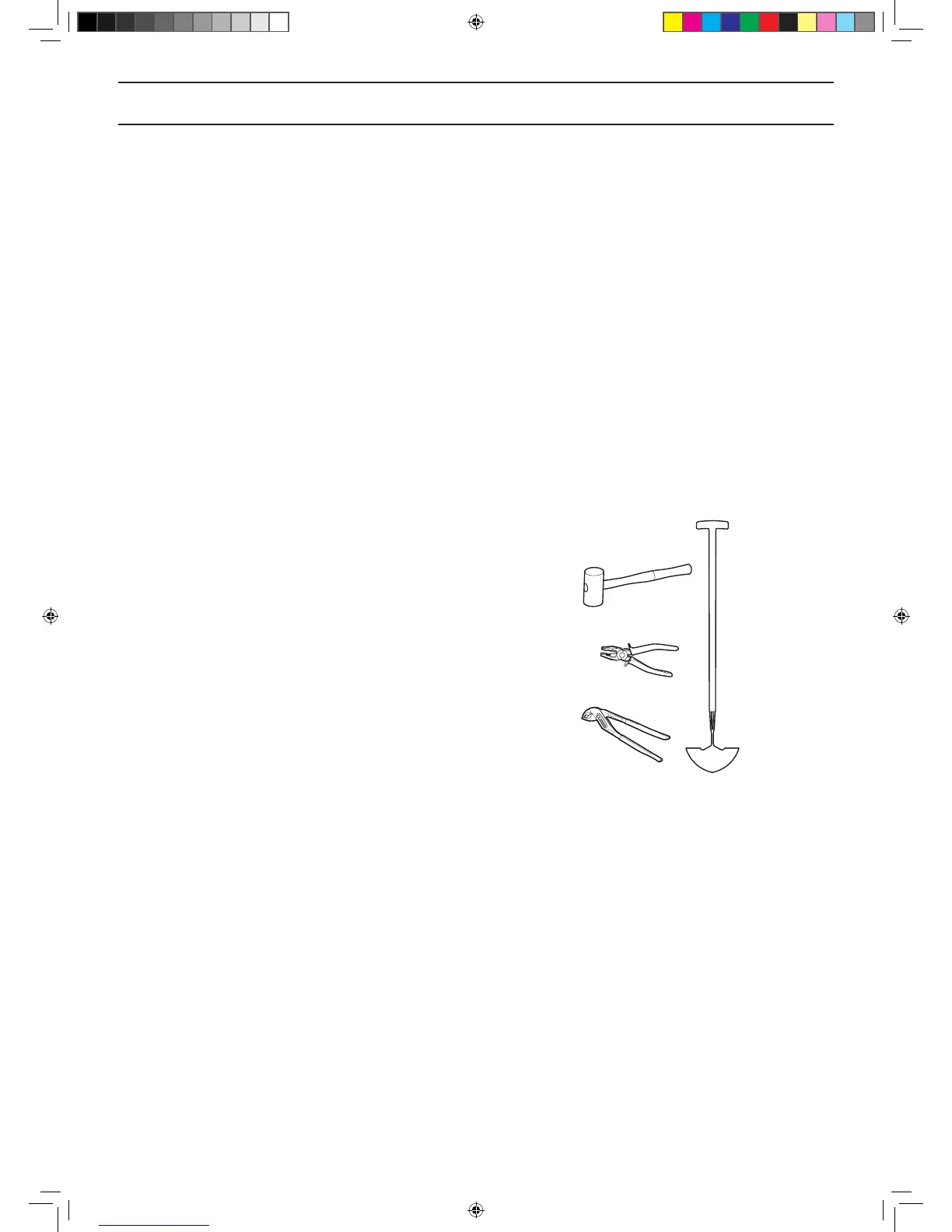

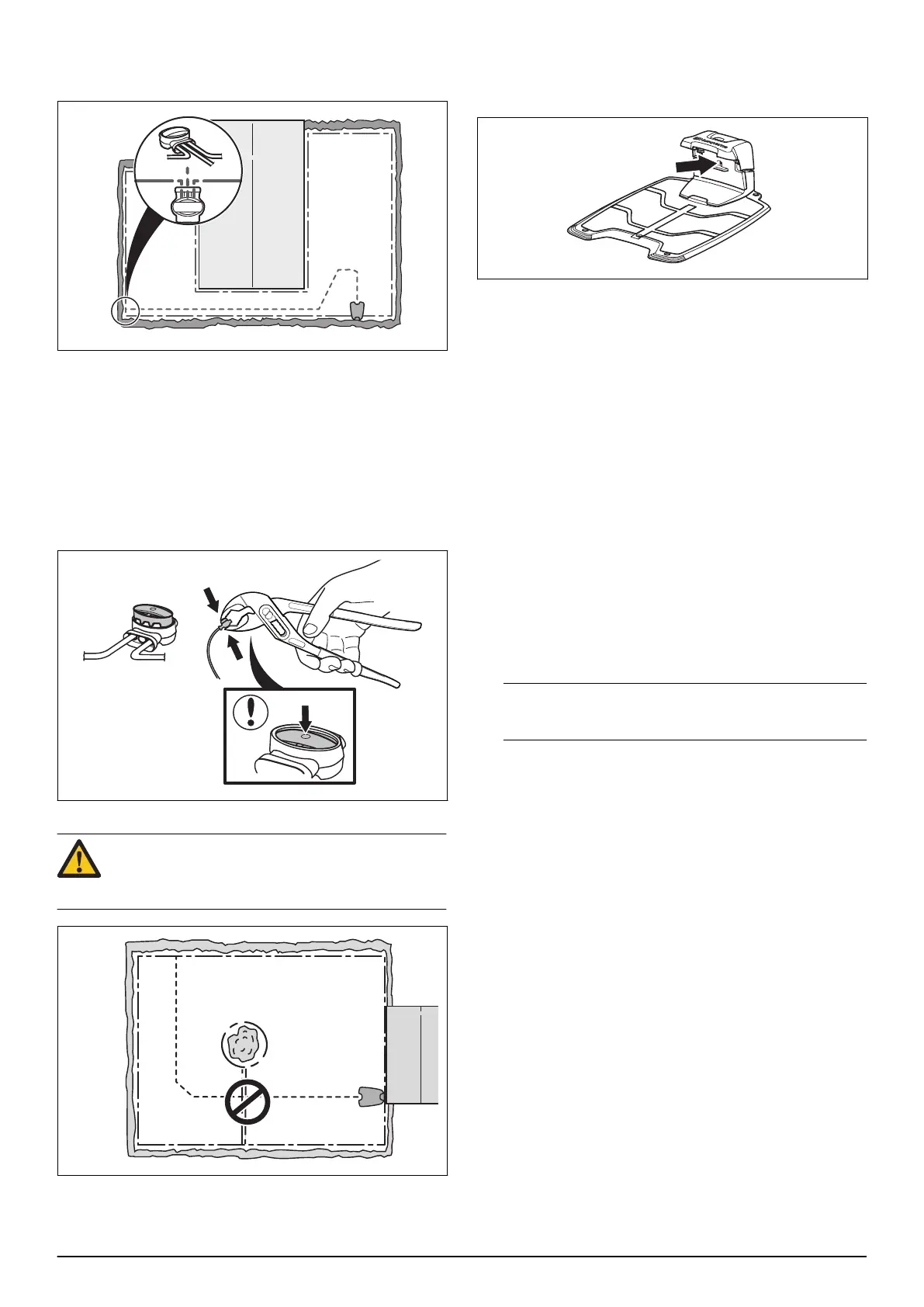

During installation you will also need:
• Hammer/plastic mallet (to simplify putting the
pegs in the ground).
• Combination pliers for cutting the boundary wire
and pressing the connectors together.
• Polygrip (for pressing the couplers together).
• Edge cutter/straight spade if the boundary wire
must be buried.
3.2 Installation of the charging station
Best charging station location
Take the following aspects into consideration when
identifying the best location for the charging station:
• Allow for at least 3 metres of free space in front of
the charging station.
• It must be close to a wall socket. The supplied low
voltage cable is 10 metres long.
• A level surface free from sharp objects to place
the charging station on.
• Protection from water spray for instance from
irrigation.
• Protection from direct sunlight.
• Possible requirement to keep the charging station
out of sight for outsiders.
