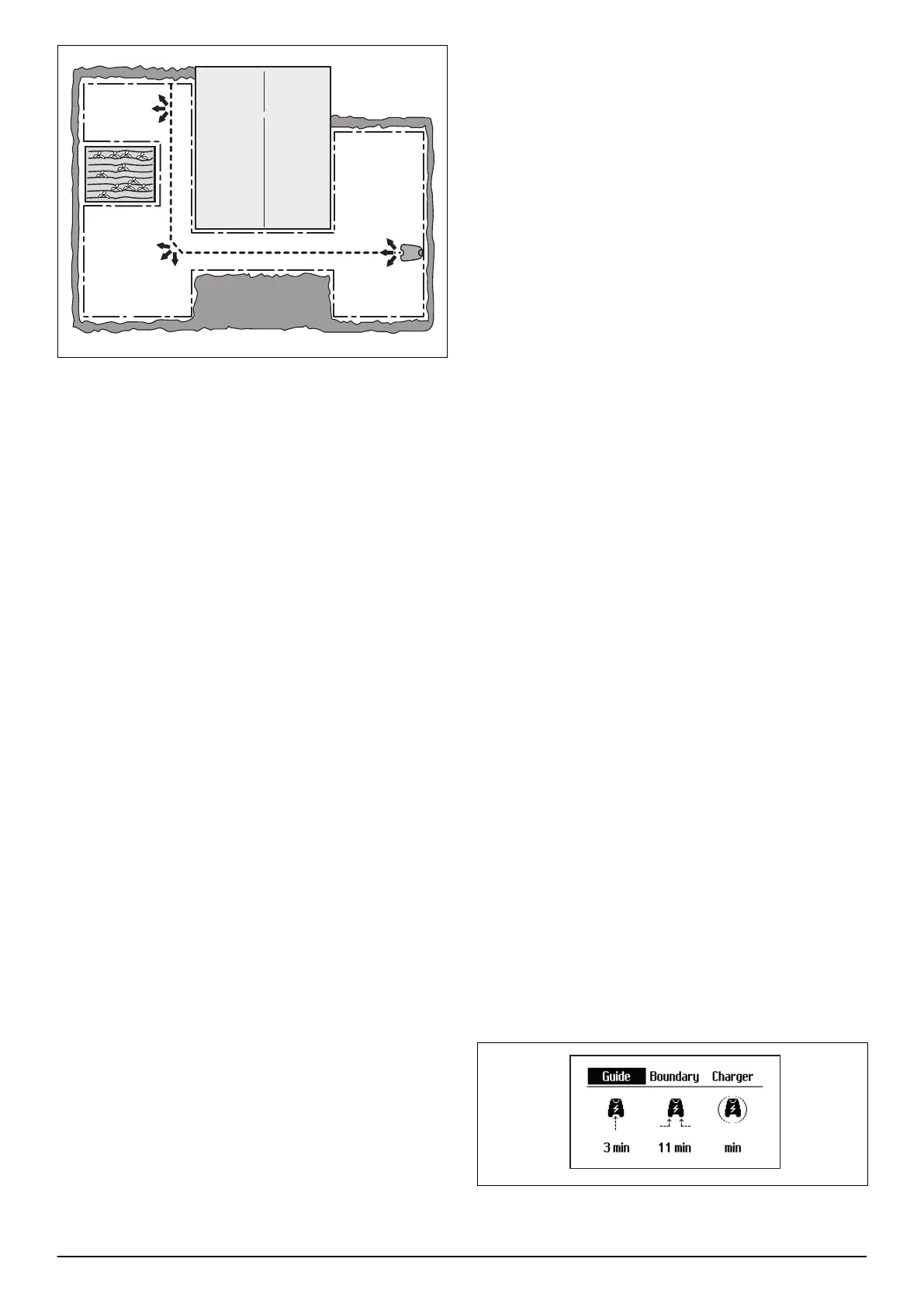

INSTALLATION

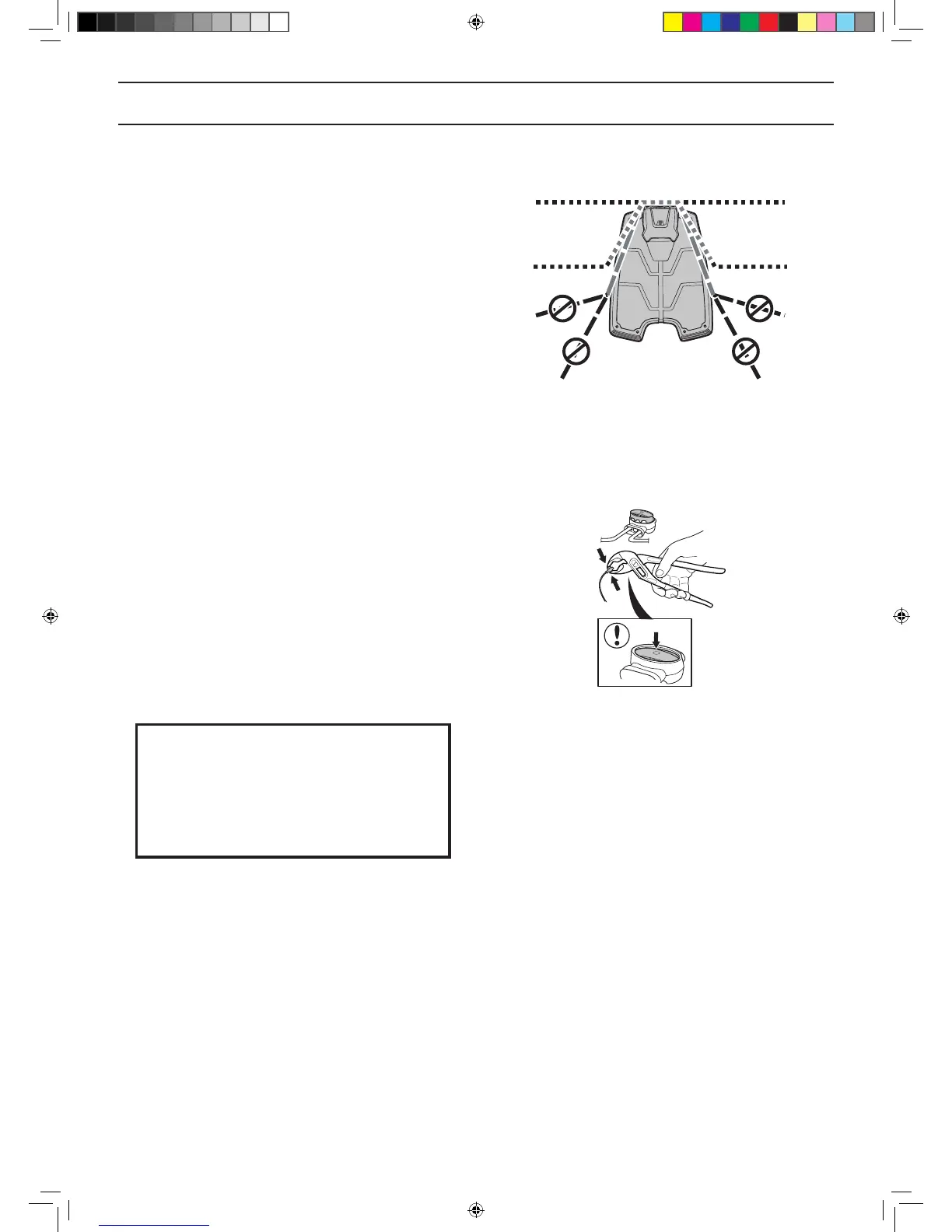

Laying the boundary wire in towards the charging
station
On its way toward the charging station, the boundary wire
can be laid completely outside the charging station (see
option 1 in the gure). If there is a need to partly locate
the charging station outside the working area, it is also
possible to lay the wire under the charging station plate
(see option 2 in the gure).
However most of the charging station must not be placed
outside the working area as the robotic lawnmower
can then nd it difcult to nd the charging station
(see gure).
Splicing the boundary wire
Use an original coupler if the boundary wire is not long
enough and needs to be spliced. It is waterproof and
gives a reliable electrical connection.
Insert both wire ends in the coupler. Check that the wires
are fully inserted into the coupler so that the ends are
visible through the transparent area on the other side
of the coupler. Now press down the button on top of the
coupler fully. Use a polygrip to completely press down the
button on the coupler.
IMPORTANT INFORMATION
Twinned cables, or a screw terminal block
that is insulated with insulation tape are
not satisfactory splices. Soil moisture will
cause the wire to oxidise and after a time
result in a broken circuit.
