Hydac RFCS Series User Manual

Installation and maintenance manual
H.I.B Hydac International Page 31 of 36
Version: G/DV
Date: 11.01.2023

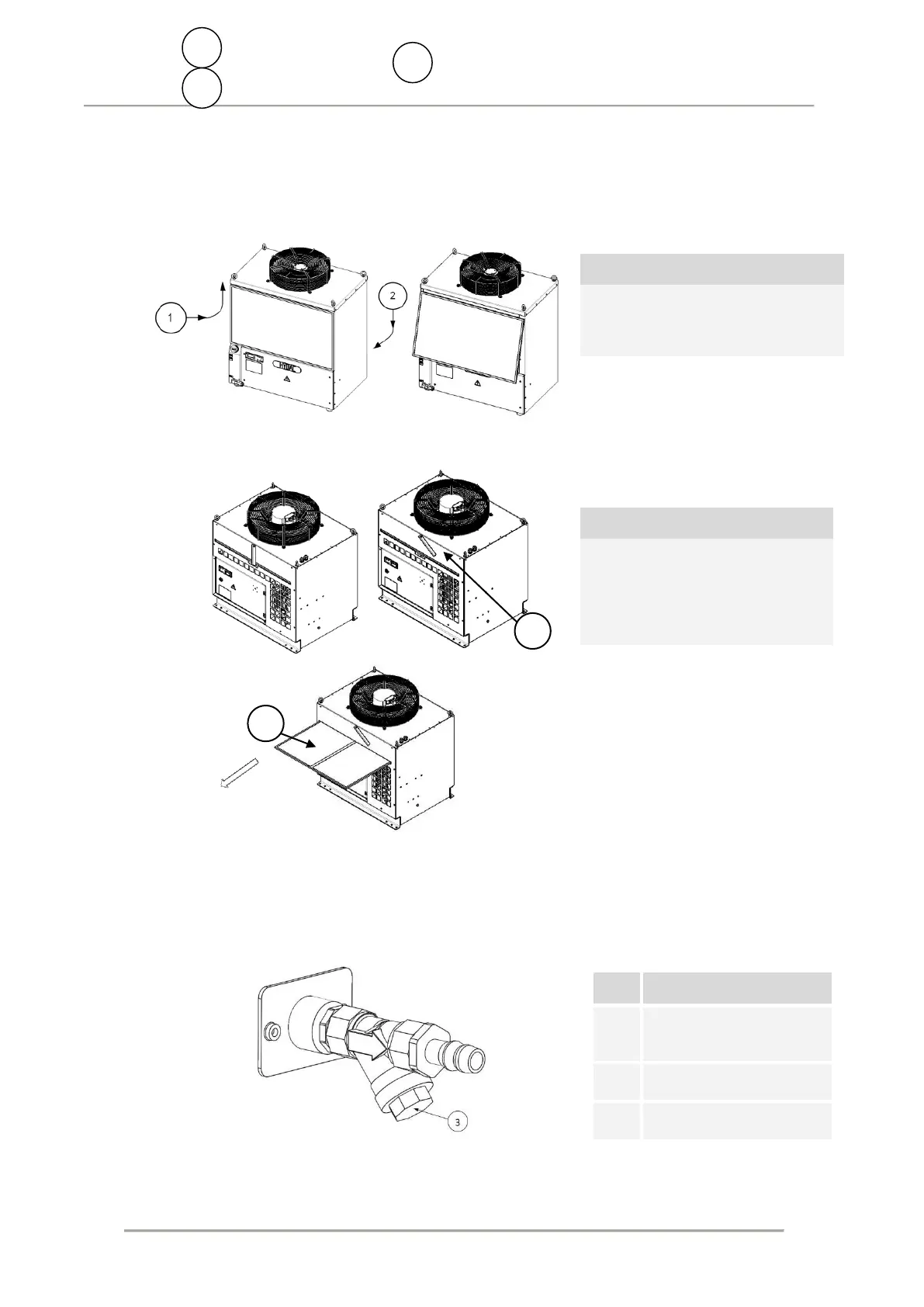

Schematic diagrams G3 with filter mat
Pos.
Description
1.
Push the filter upwards
2.
Pull the filter away from
the chiller and downwards
Schematic diagrams G2,G3 with metal mesh filter
Pos.
Description
1.
Push the sheet metal
angle to the side.
2.
Pull the filter away from
the cooler and
downwards.
Schematic diagrams Fluid chiller
13.5 Cleaning the dirt trap - external water (optional)
Pos.
description
1.
Turn the chiller off and
secure it against
inadvertent
2.
Make sure the water
supply is blocked.
3.
Screw out, clean and
reinsert the strainer
1
2
1
1
2
