Installation and maintenance manual
H.I.B Hydac International Page 33 of 36
Version: G/DV
Date: 11.01.2023
13.6 Replacing the particle filter (optional)
Check the particle filter for soiling at regular intervals (also see maintenance schedule) Replace
the filter cartridge in time, before the flow volume is reduced.

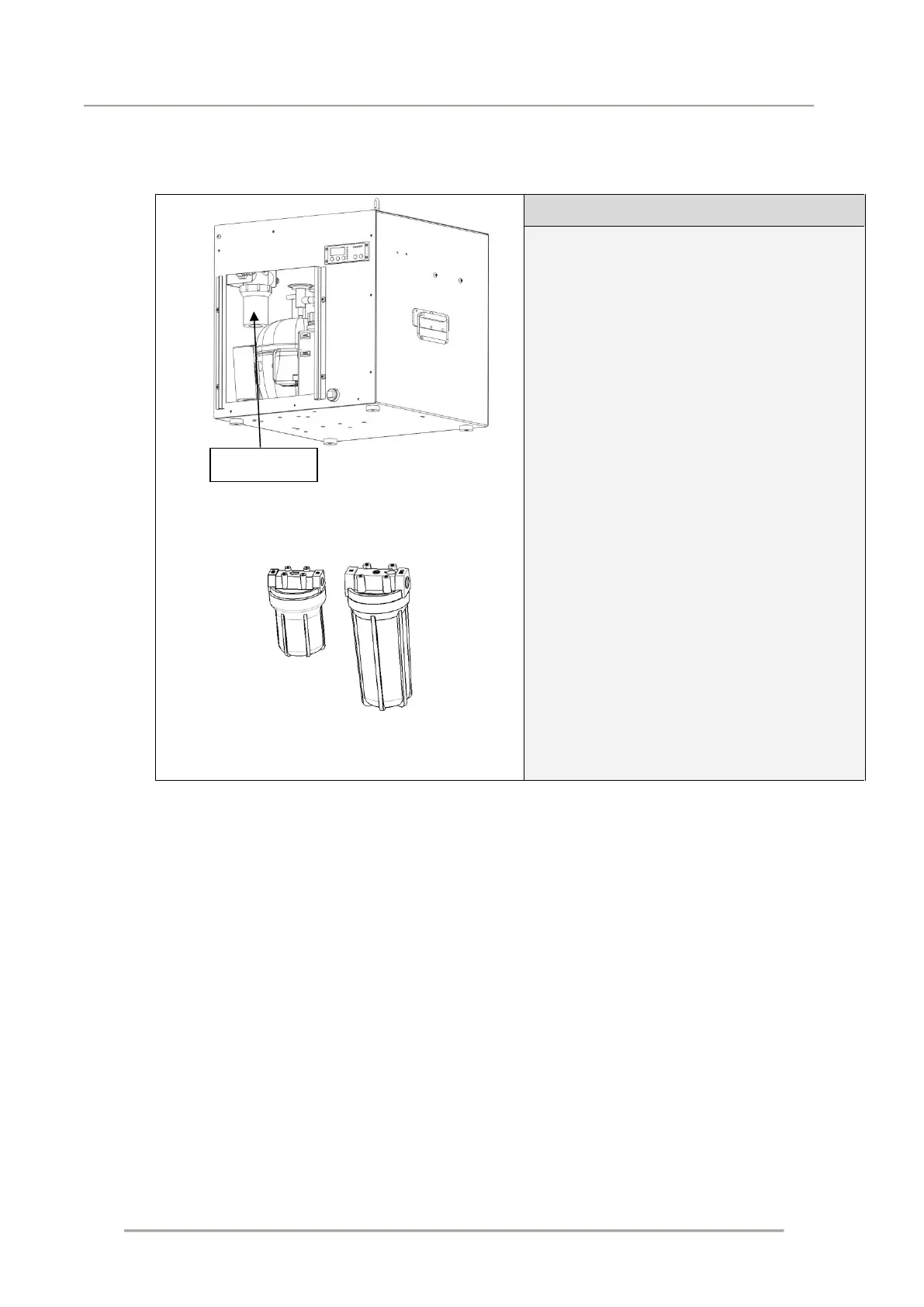

schematic diagram
schematic diagram of the particle filters
1. Turn it off and secure it against
inadvertent
2. Remove metal mesh filter / cover
3. Unscrew the filter bowl (lower part)
4. Remove the filter cup
5. Clean the filter cup
6. Insert a new filter cartridge
7. Mount the filter cup
8. Insert metal mesh filter / cover
9. Deaerate the coolant circuit
14.0 Guarantee terms and conditions
For the warranty provided by us, please refer to the General Conditions of Sale and Delivery of
HYDAC Cooling GmbH. You will find these under www.hydac.com / AGB (General terms and
conditions).
Damage and functional faults caused by incorrect handling or failure to observe the operating
instructions do not full within the terms of the guarantee. The guarantee is extinguished if the
system structure has been interfered with or the serial number on the chiller has been changed
or made illegible.
The chiller has been carefully tested and set in the factory. If you nevertheless have a complaint,
please contact your contract partner with confidence. Please do not forget to tell us the name of
your specialist or technician responsible in case of further enquiries.
