OperatiOn

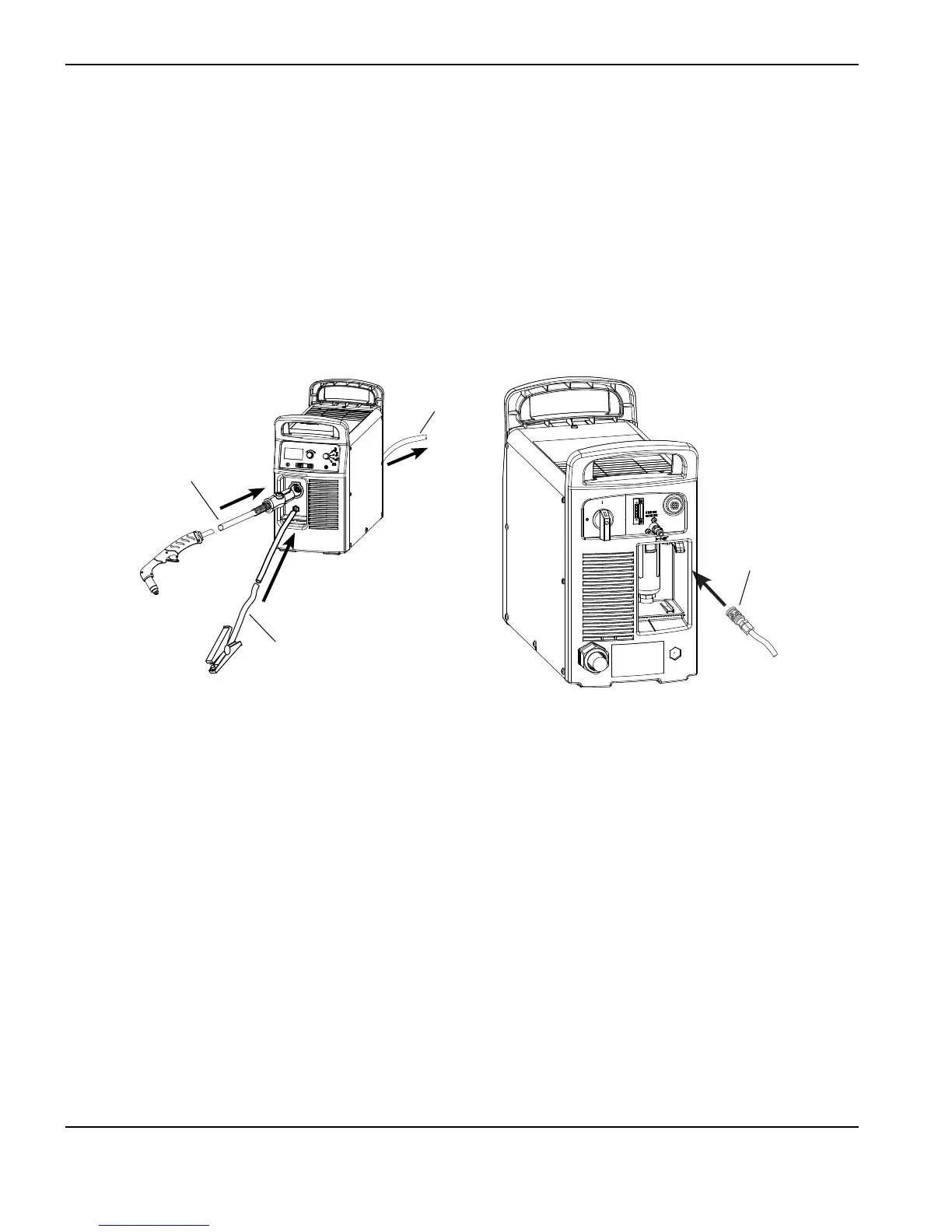

4-4 powermax 65/85 Service Manual
Gas pressure indicators
In manual mode, the gas pressure is displayed in bar and psi. The gas pressure bar is also a visual indicator of the gas
pressure.
Status screen
The status screen shows system status and fault information.
Torch started
Indicates that the torch has received a start signal and has initiated a pilot arc.
Torch is cutting
Indicates that the cutting arc has transferred to the metal and the torch is cutting.
Remote control
Indicates that a remote control is controlling the power supply. All local controls are disabled.
System status icons
The screen displays icons to indicate the system’s status.
Gas pressure bar
When the arrow is centered in the vertical bar (the reference pressure of the automatic pressure setting), the
gas pressure is set to the preset (factory-defined) value. If the pressure is higher than the preset value, the
arrow appears above the mid-point of the bar. If the pressure is lower than the preset value, the arrow appears
below the mid-point of the bar.
Note: In automatic mode, the power supply adjusts the pressure to the preset value. You can use manual
mode to adjust the pressure to satisfy the needs of a particular cutting job. Refer to 4-10 Manually
adjusting the gas pressure.
Torch started
Fault icon
Fault code
Torch is
cutting
Remote
connected
Current
setting
(amps)
Current selection cursor
Pressure selection cursor
Pressure
setting
Visual pressure
setting
