Parts
powermax
65/85
Service Manual 7-5
WORK
LEAD
J13
J2
J1
J18J19
J27
J30
J23
J24
TP13
J29
TP11
TP12

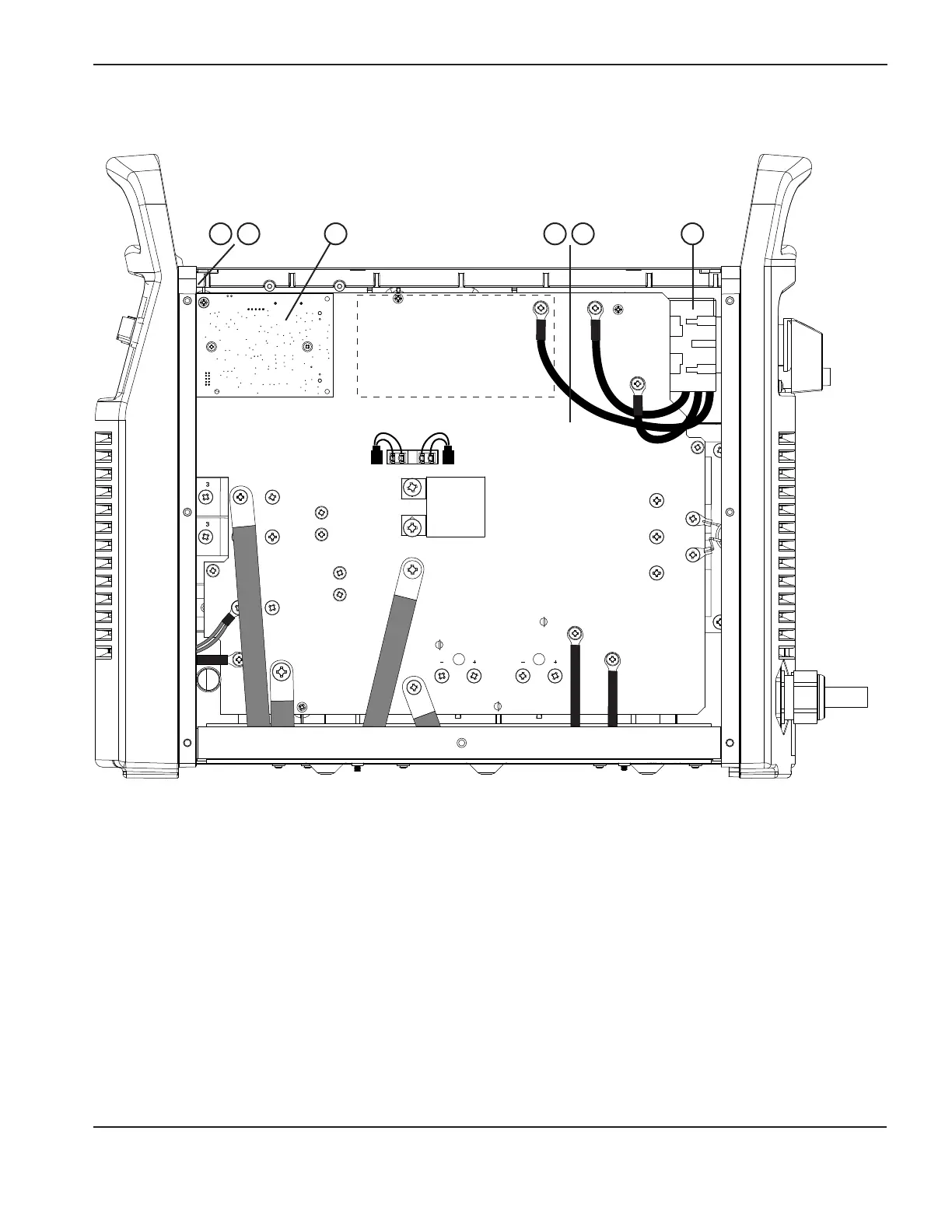

Interior, power board side (380/400V CE)
1
2
3
4
5
6
Item Part number Description
1 228657 Kit: Powermax65 control board
2 228658 Kit: Powermax85 control board
3 228656 Kit: Powermax65 and Powermax85 DSP board
4 228708 Kit: Powermax65 Power board CE
5 228672 Kit: Powermax85 Power board CE
6 228671 Kit: Powermax65 and Powermax85 CE Power Switch
228698 Kit: Powermax65 CE wire group
228677 Kit: Powermax85 CE wire group
228705 Kit: Powermax65 and Powermax85 Mylar barrier
