TroubleshooTing and sysTem TesTs
powermax 65/85 Service Manual 5-47

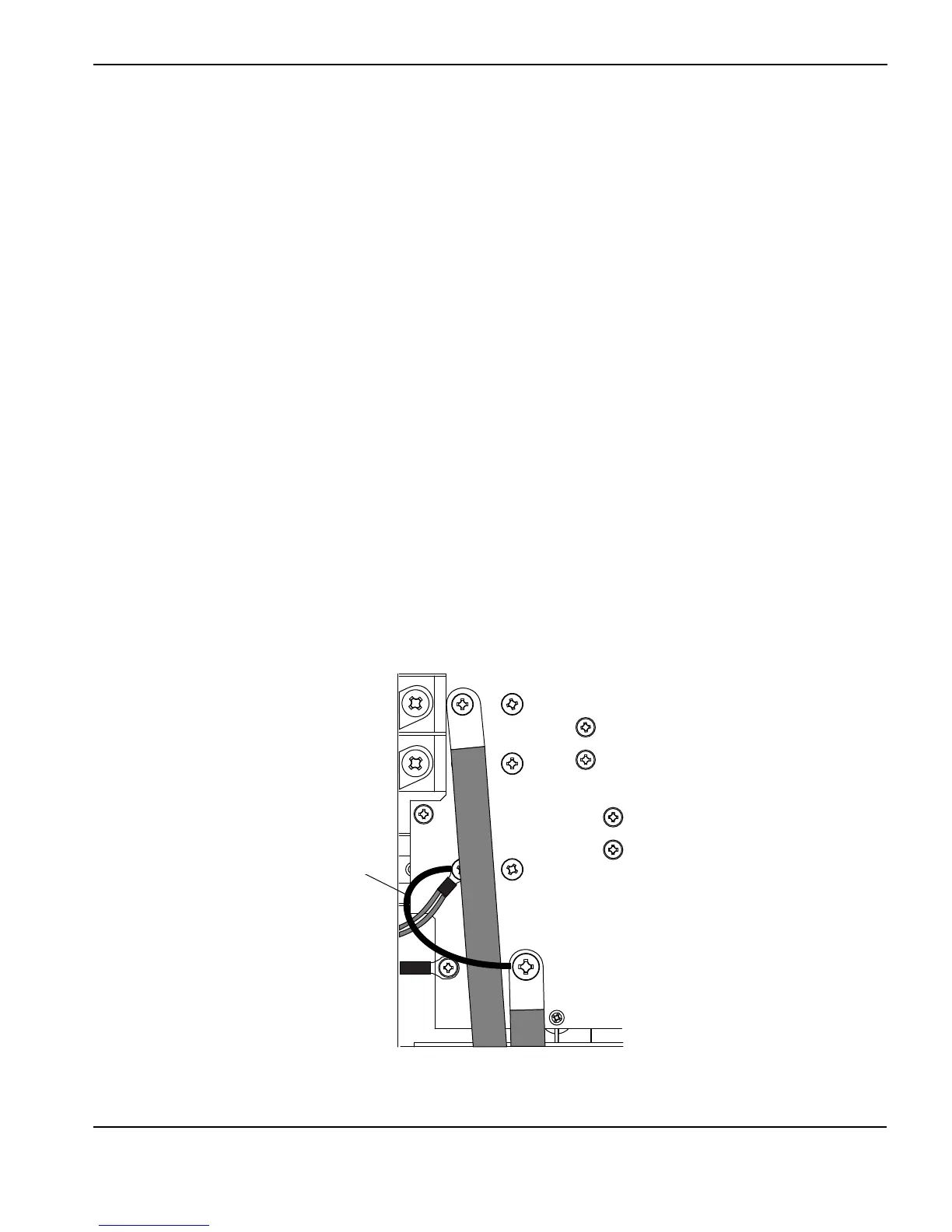

If the +48 VDC value is incorrect:
• Remove the fan connector (J3 for standard units or J5 for CE units) and repeat the test.
• If the value is now correct, replace the fan.
• If the value is still incorrect, replace the power board.
If the +3.3 VDC value is incorrect:
• Remove the fan connector (J3 CSA or J5 for CE units) and repeat the test.
• If the value is now correct, replace the fan.
• If value is still incorrect, remove the DSP board and repeat the test.
• If the value is now correct, replace the DSP board.
• If the value is still incorrect, replace the power board.
If the +5 VDC value is incorrect:
• Remove the pressure sensor connector (J5 CSA or J7 for CE units) and repeat the test.
• If the value is now correct, replace the pressure sensor.
• If the value is still incorrect, remove the DSP board and repeat the test.
• If the value is now correct, replace the DSP board.
• If the value is still incorrect, replace the power board.
If the +24 VDC value is incorrect:
• Remove the pressure switch connector (J1 CSA or J3 for CE units) and repeat the test.
• If the value is now correct, replace the pressure switch.
• If the value is still incorrect, replace the pressure switch connector, remove the solenoid valve connector
(J4CSA and J6 for CE units) and repeat the test. If the value is now correct, replace the solenoid valve. If the
value is still incorrect, replace the power board.
