torch setup
3-4
powermax
45
Service Manual

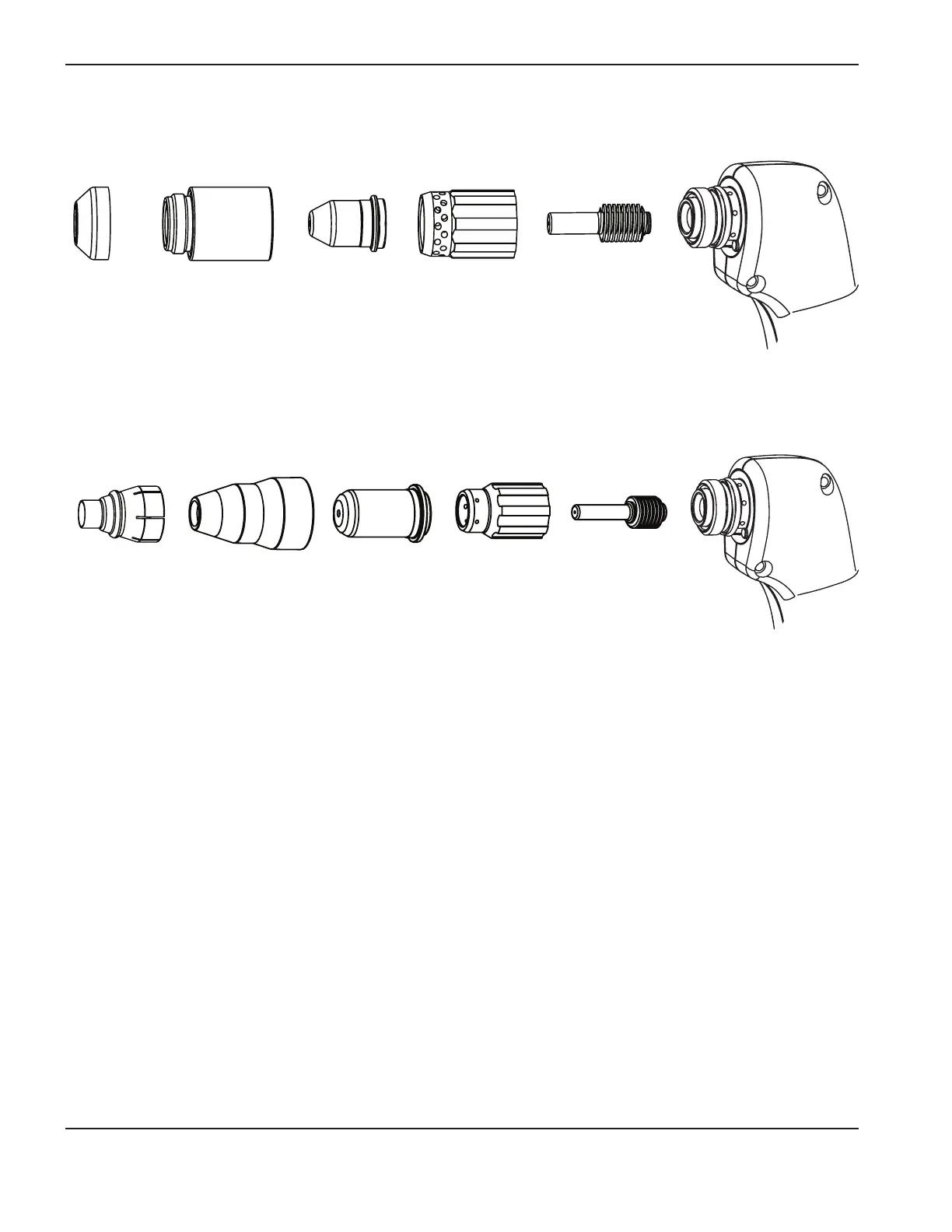

T45v unshielded consumables*
* Unshielded consumables are not available for use in CE-regulated countries.
T30v (Powermax30) 30 A consumables
220713
Retaining cap
220670
Swirl ring
220669
Electrode
220717
Deflector
220718
Nozzle
220483
Retaining cap
220480
Nozzle
220478
Electrode
220479
Swirl ring
220569
Optional deflector
33
35
