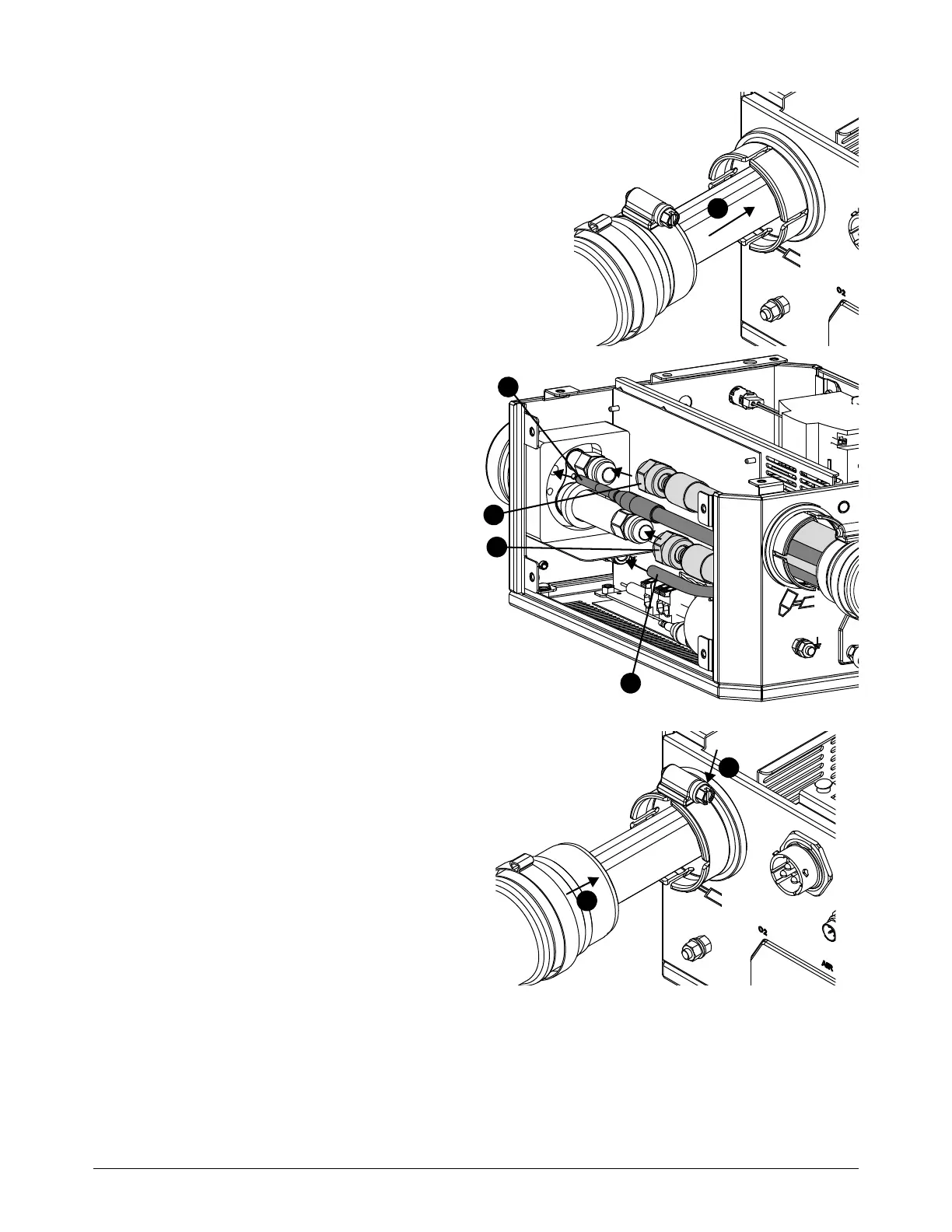

2. Connect the lead assembly to the TorchConnect
console:
a. Put the hoses and lead through the hole in the
TorchConnect console.
b. Push the water hose into the
connector until it stops, approximately
13 mm (0.5 inch).
c. Connect the coolant return hose (red)
to the coolant return fitting (red).
d. Connect the coolant supply hose
(green) to the coolant supply fitting
(green).
e. Connect the pilot arc lead.
f. Remove the hose clamp from the lead
and put it into the groove on the
console collar.
g. Push the coupler into the console collar
and tighten the clamp.
a
e
d
c
b
f
g
