GROUP 3 DISASSEMBLY AND ASSEMBLY
1. STEERING UNIT

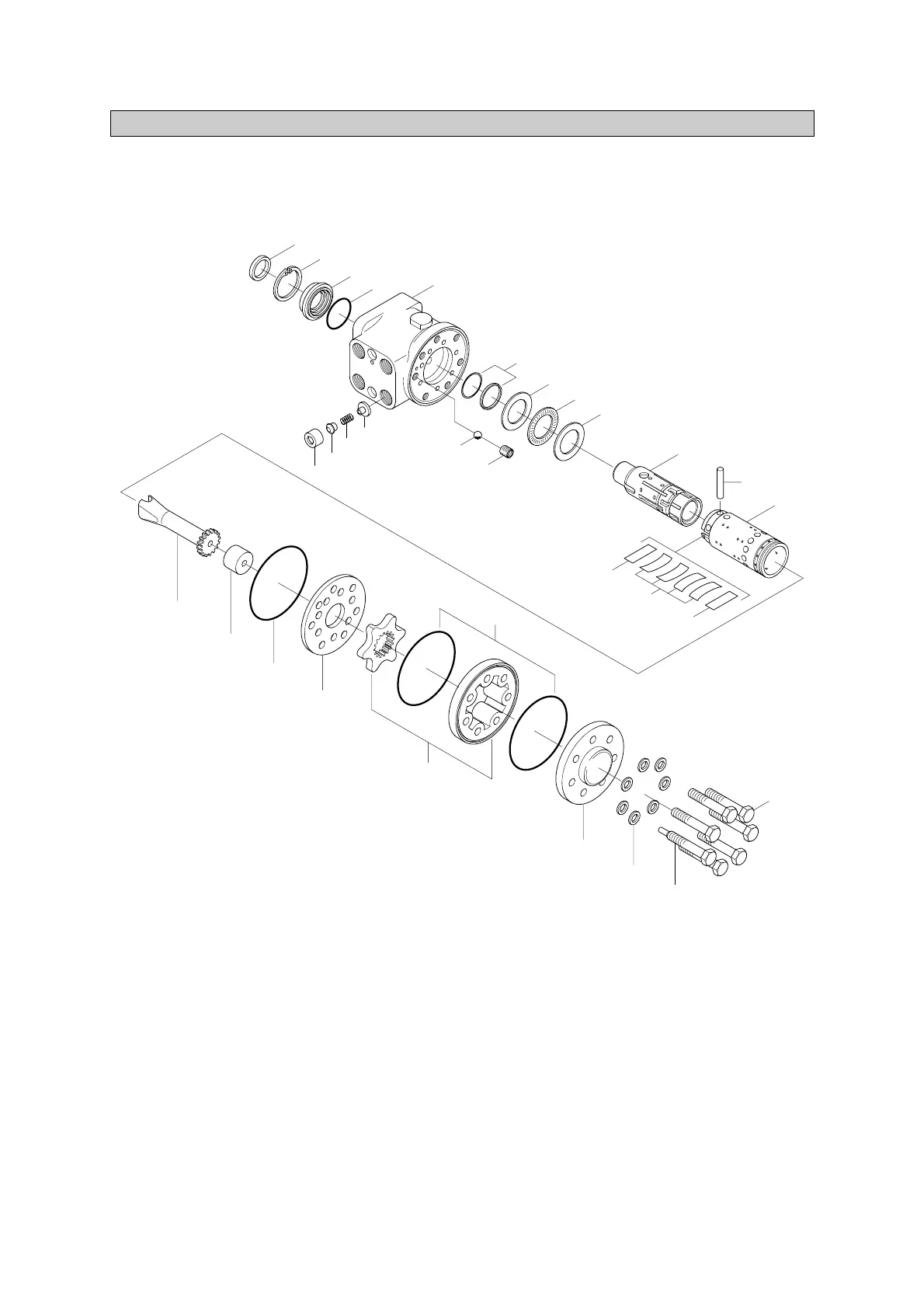

STRUCTURE
1)
3
4
14
6
1
5
8
16
7
10
19
13
10
17
9
20
18
22
23
11
25-3
25-1
25-4
25-2
12
14
24
24
15
2
21
D357SE05
1 Dust seal
2 Retaining ring
3 Cap seal
4 Thrust bearing
5 Ball
6 Pin
7 Spacer
8 Center spring
9 Washer
10 O-ring
11 O-ring
12 Rolled screw
13 Gerotor set
14 Bearing race
15 Bore screw
16 Drive shaft
17 End cap
18 Grand bushing
19 Plate
20 Cap screw
21 Housing
22 Spool
23 Sleeve
24 Plate spring
25 P-Port check valve
25-1 Plug
25-2 Poppet
25-3 Spring seat
25-4 Spring
