GROUP 1 STRUCTURE AND OPERATION
Engine
12 3 4
8
9
6
7
10
11
5
From cooler
Down regulator valve
To cooler
D357TA01

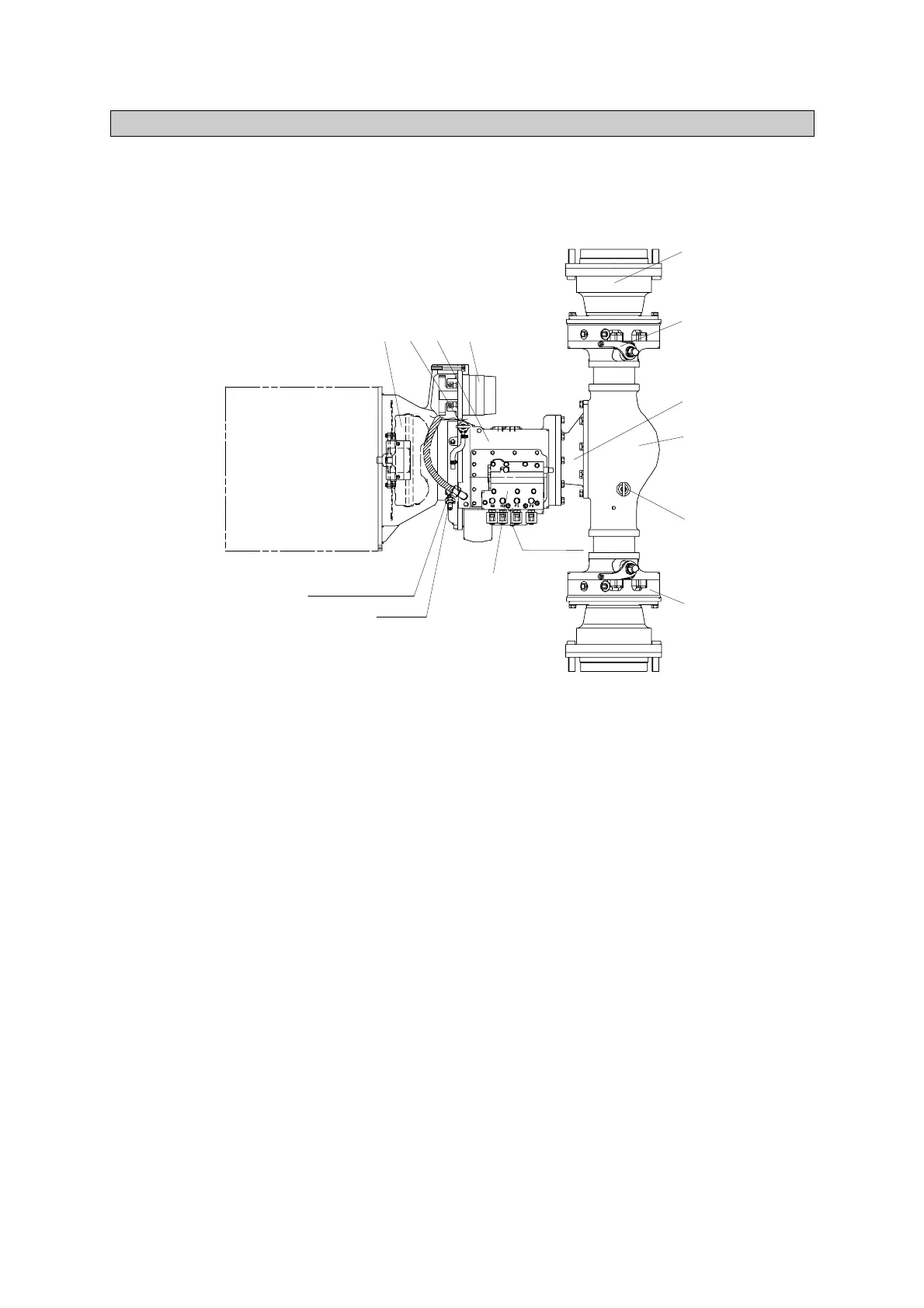

Power train system consists of engine , torque converter(1) , transmission(3) , drive axle(7) , drive
wheel(8).
Engine power is transmitted to the transmission(3) through the torque converter(1).
Transmission(3) which operates as a type of regularly and continuously engaged counter shaft
shifting by 2 stage both forward and reverse consists of 4 hydraulic clutch packs.
Clutch piston is released by tension of spring.
The power is transmitted to spiral gear and bevel gear set of differential through the output gear and
then goes to the drive wheel via drive axle.
1. POWER TRAIN COMPONENT OVERVIEW
1 Torque converter
2 T/M oil level gauge
3 Transmission
4 T/M oil pump
5 T/M control valve
6 Differential
7 Drive axle
8 Drive wheel
9 Parking lever
10 Drive axle oil level gauge
11 Disk brake
STRUCTURE
1)
OPERATION
2)
