AOPS (Abnormal Operator Position Sensing)
This machine has a built in OPS(Operator Presence Sensing)
unit and can be started only
when the operator is on the driver's seat correctly.
7-1

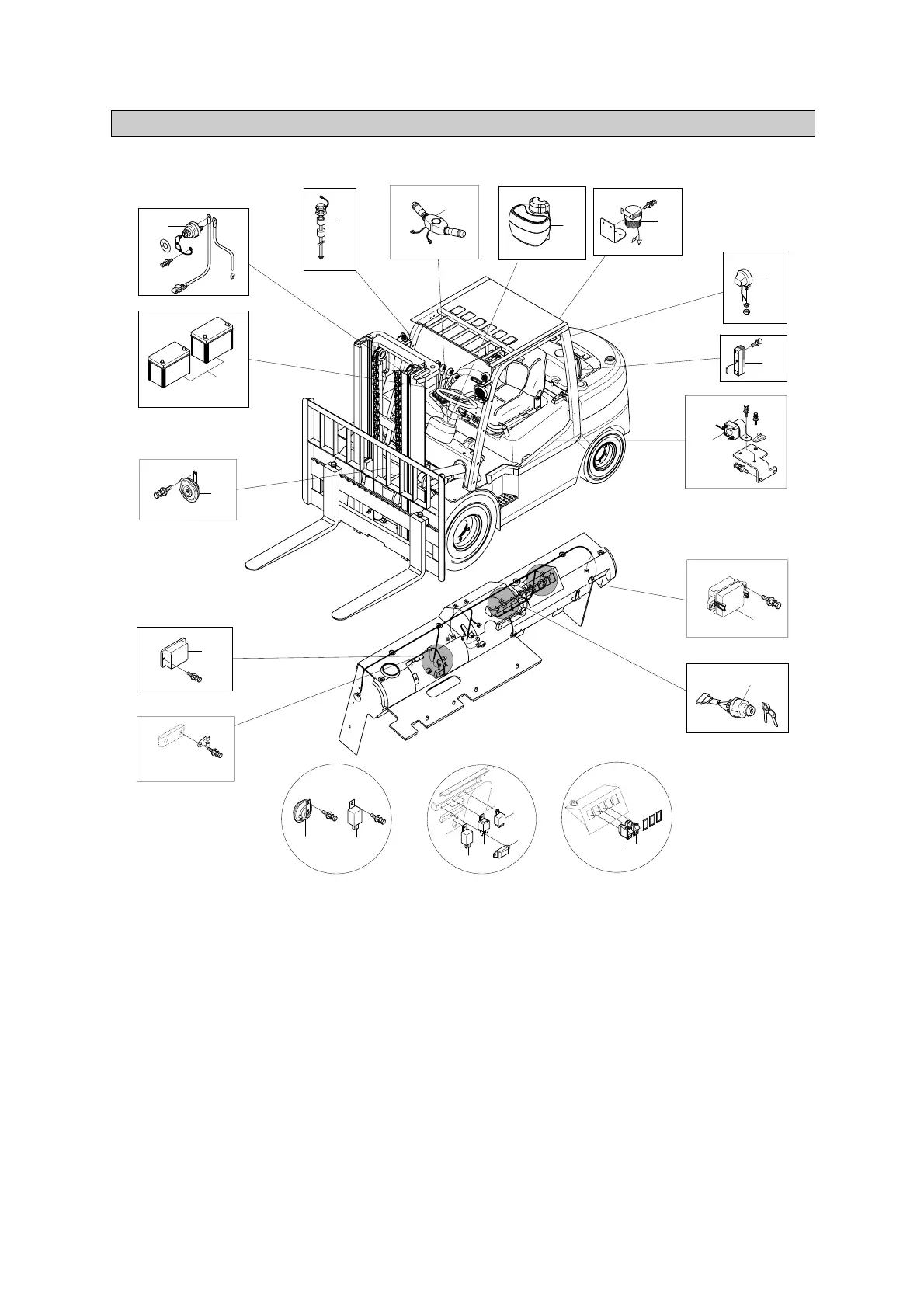

GROUP 1 COMPONENT LOCATION
SECTION 7 ELECTRICAL SYSTEM
WITH OPSS
A
B
C
DETAIL A
DETAIL B
DETAIL C(WITH OPSS)
1
2
3
4
5
6
7
8
9
10
1111
12
13
14
15
16
17
18
19
20
21
WITHOUT OPSS
D357EL06M
1 Fuse box
2 Start switch
3 Work lamp switch(opt)
4 Hazard switch(opt)
5 Flasher unit
6 Relay 4P
7 Glow timer
8 Regulator
9 Relay 5P
10 Buzzer
11 OPS unit
12 High horn
13 Battery
14 Master switch
15 Fuel sender
16 Combination switch
17 Monitor panel
18 Beacon lamp(opt)
19 Rear work lamp(opt)
20 Rear combination lamp
21 Start relay
1. 35DS/40DS/45DS-7(MHI ENGINE)
