6-24
GROUP 3 DISASSEMBLY AND ASSEMBLY

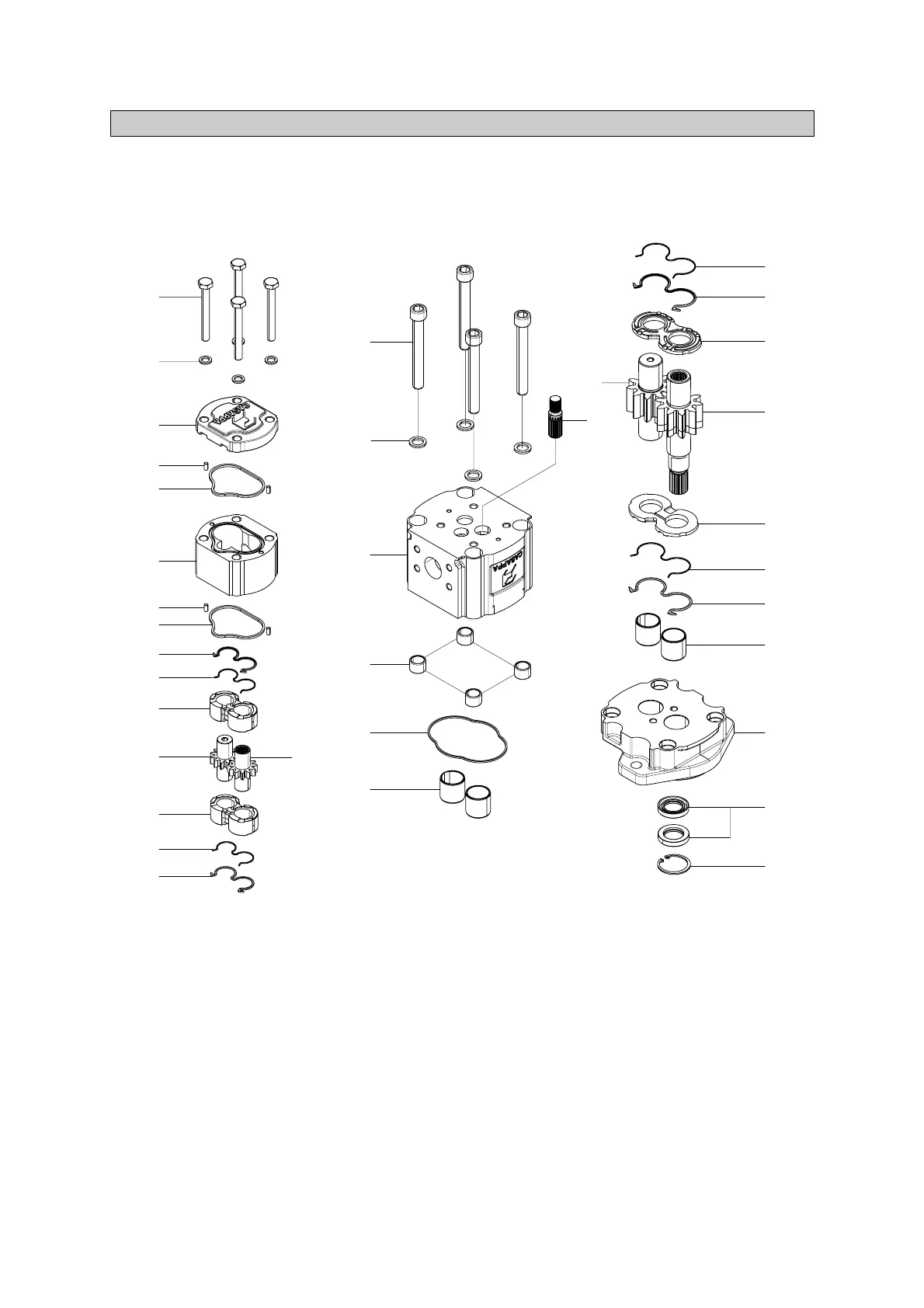

1. MAIN PUMP(35DS/40DS/45DS-7)
STRUCTURE
1)
11
13
2
25
18
1
18
25
15
21
4
6
7
4
15
21
10
14
24
27
26
17
23
22
16
5
8
5
22
16
23
3
19
20
9
D357SHS06
1 Body
2 Rear cover
3 Front cover
4 Thrust plate
5 Thrust plate
6 Drive gear
7 Driven gear
8 Drive shaft
9 Driven gear
10 Screw
11 Screw
12 Grub screw
13 Washer
14 Washer
15 Seal
16 Seal
18 Parker ring
17 Seal
18 Seal
19 Shaft seal
20 Ring
21 Back up ring
22 Ring
23 Sleeve bearing
24 Hub
25 Dowel pin
26 Steel bushing
27 Body
