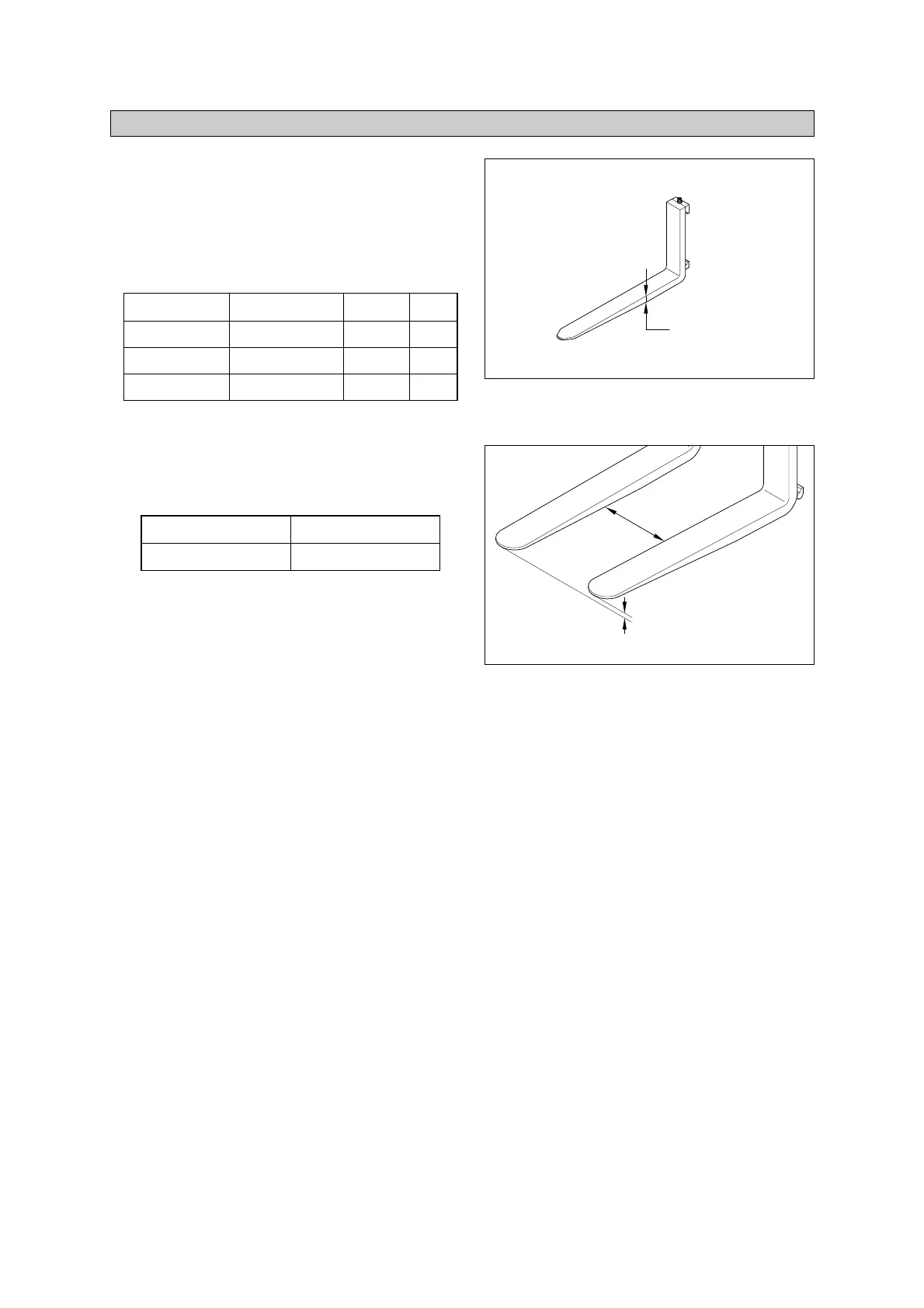

Set forks in middle and measure out of
parallel and difference in height at the top of
forks.
2)
STD Fork assy Applicable model
35D-7, 35DS-7
40D-7, 40DS-7
45D-7, 45DS-7
S173896-02
F13710010
F18393603
Standard
50(2.0)
50(2.0)
50(2.0)
Limit
48(1.9)
48(1.9)
48(1.9)
mm
(
in
)
Difference in height 15(0.6)
Out-of-parallel 35(1.4)
mm
(
in
)
2. MAST
Check for cracks at mast stay, tilt cylinder bracket, guide bar, fork carriage and roller shaft weld.
Check visually or use crack detection method. Repair any abnormality.
Set mast vertical, raise forks about 10
cm
from ground and check front-to-rear clearance and left-to-
right clearance between inner mast and fork carriage, and between outer mast and inner mast.
Use these figures to judge if there is any play at roller or rail.
ÂFront-to-rear clearance : Within 2.0
mm
(0.08
in
)
ÂLeft-to-right clearance : Within 2.5
mm
(0.10
in
)
Check that there is an oil groove in bushing at mast support.
Set mast vertical, raise forks about 10
cm
from ground, and push center of lift chain with finger to
check for difference in tension.
If there is any difference in tension, adjust chain stopper bolt.
Check visually for abnormalities at thread of chain anchor bolt, and at contact surface between
chain wheel and chain.
Rotate chain wheel by hand and check for any play of bearing.
1)
2)
3)
4)
5)
D507FK01
Most force is concentrated at root of fork
and at hook, so use crack detection method
to check cracks.
3)
To Next Page
