RF Data Modem HWC-M100 / HWC-W100 / HWC-W120
13
- UP-LINK : IP Address, Subnet Mask, Gateway Address, MAC Address
(MAC Address is assigned when RF-Master is producted. If RF-Master has no MAC address,
you can re-assign by the address printed on sticker that attached on PCB.)
- LOCAL-LINK : You don't need to set Ethernet network parameter for AP.
It is fixed as following:
IP Address : 192.168.10.1
Subnet Mask : 255.255.255.0
Gateway : 192.168.10.254
MAC Address : 00:0A:1F:00:EC:01

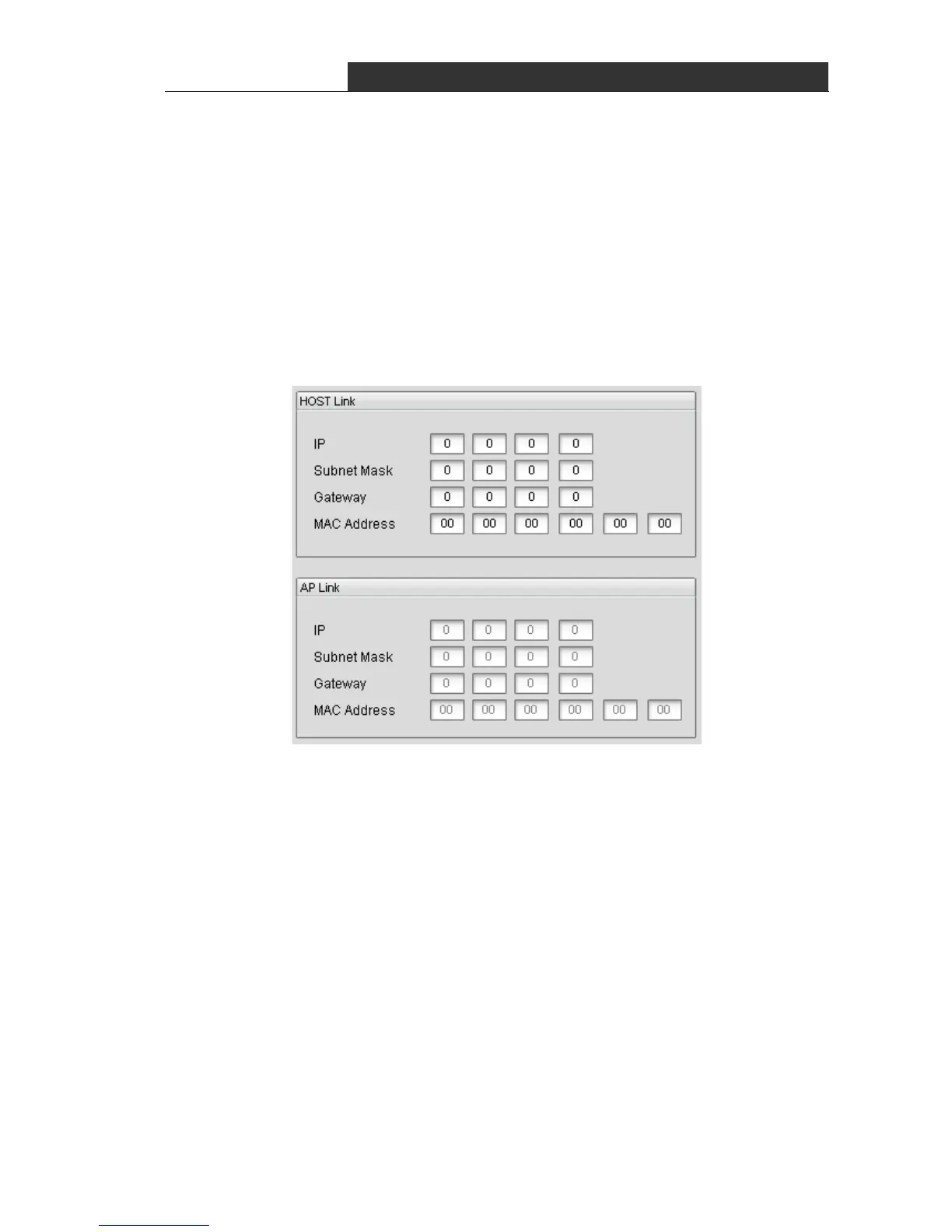

<Network Parameter Window in GUI>
∎ Start-up procedure of RF-Master
① Supply power(8~32VDC)
② Connect ethernet cable to UP-LINK Port(connection with Host)
③ Connect ethernet cable to LOCAL-LINK Port(connection with AP)
④ Turn on the power switch
⑤ Confirm that PWR-LED is ON
⑥ Connect with PC or note-book through Debug-port
⑦ Execute the GUI program.
⑧ Enter the IP Address, Subnet Mask and Gateway Address in Host-Link Window.
⑨ Confirm that UP-LED is ON.(ethernet link with HOST)
⑩ Confirm that LOCAL-LED is ON.(ethernet link with AP)
