5.11 Configure the setting of communication with device
In spite of executing the program after connecting the device with PC, If it is not
communicated, The configuration of communication has to be confirmed.
The following is the usage :

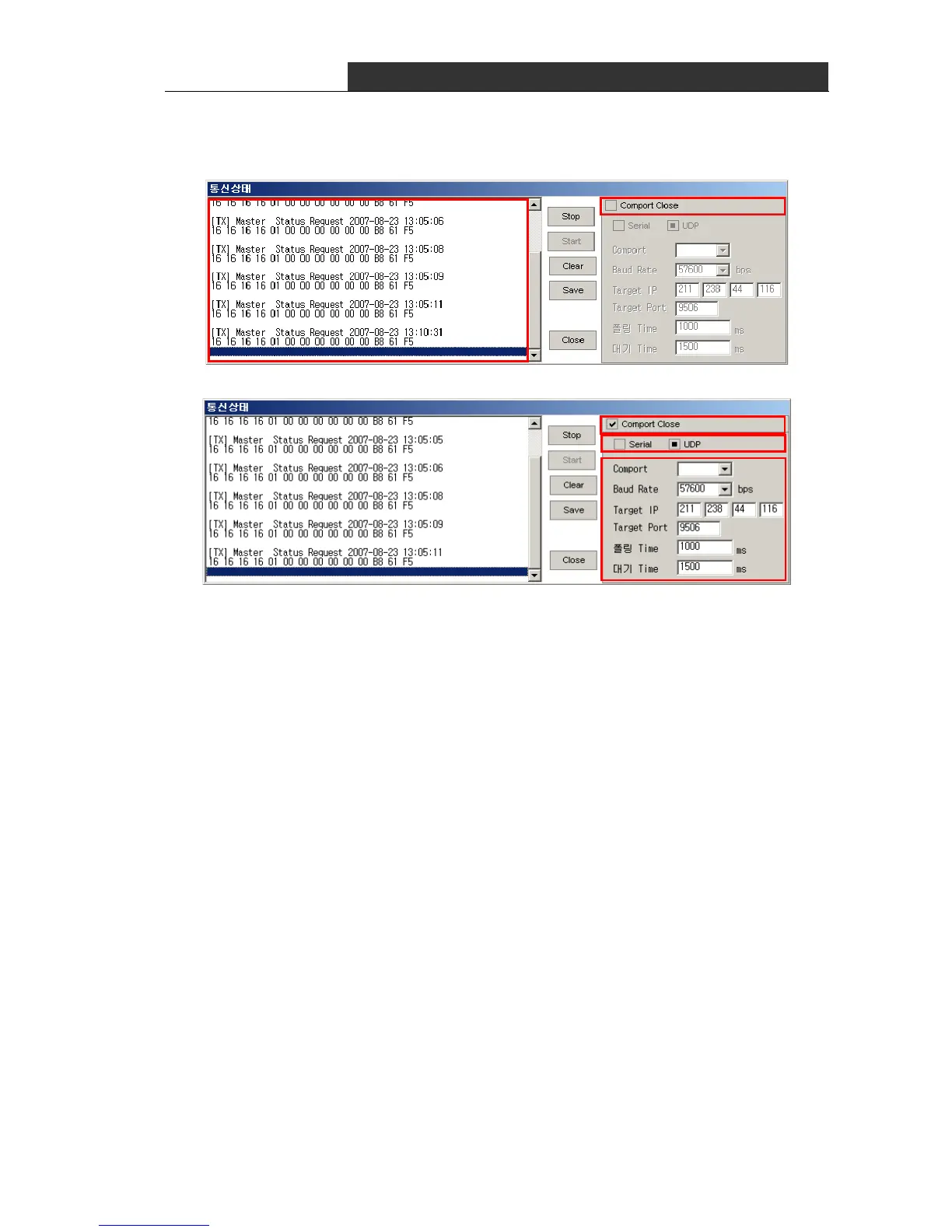

1. Click the 'Debug' button in the main window.
2. Check whether the received data "[RX] -------" is in the left window.
You can use the 'start/stop' to start/stop the communication with the device.
If there is not the received data "[RX] -----", please confirm the hardware connection.
3. After checking the check box "Comport Close", you can change the configuration of
communication.
4. At first, confirm whether the PC is connected with the device through the serial cable
or LAN cable. And select one of Serial/UDP.
5. In case of serial, you must select and confirm the comport and baud-rate.
In case of UDP, you must confirm the Target IP and Target Port. Target IP means the IP
address of the device. Target Port must be always set to '9506'.
The initial value of the polling Time is 1000, and the initial value of the waite time
is 1500. It is recommended that is not changed.
6. After the setting the communication configuration, Be sure to uncheck the check box
'Comport Close' and confirm the received data "[RX] -----" in the left side of the window.
If there is not the received data, confirm whether the 'start' button is activated.
