RF Data Modem HWC-M100 / HWC-W100 / HWC-W120
28
5.5 Status and Control of EP
After selecting EP in device list, please confirm whether the "state/control" is selected
(If "status/control" is not selected, click the tab of "status/control")

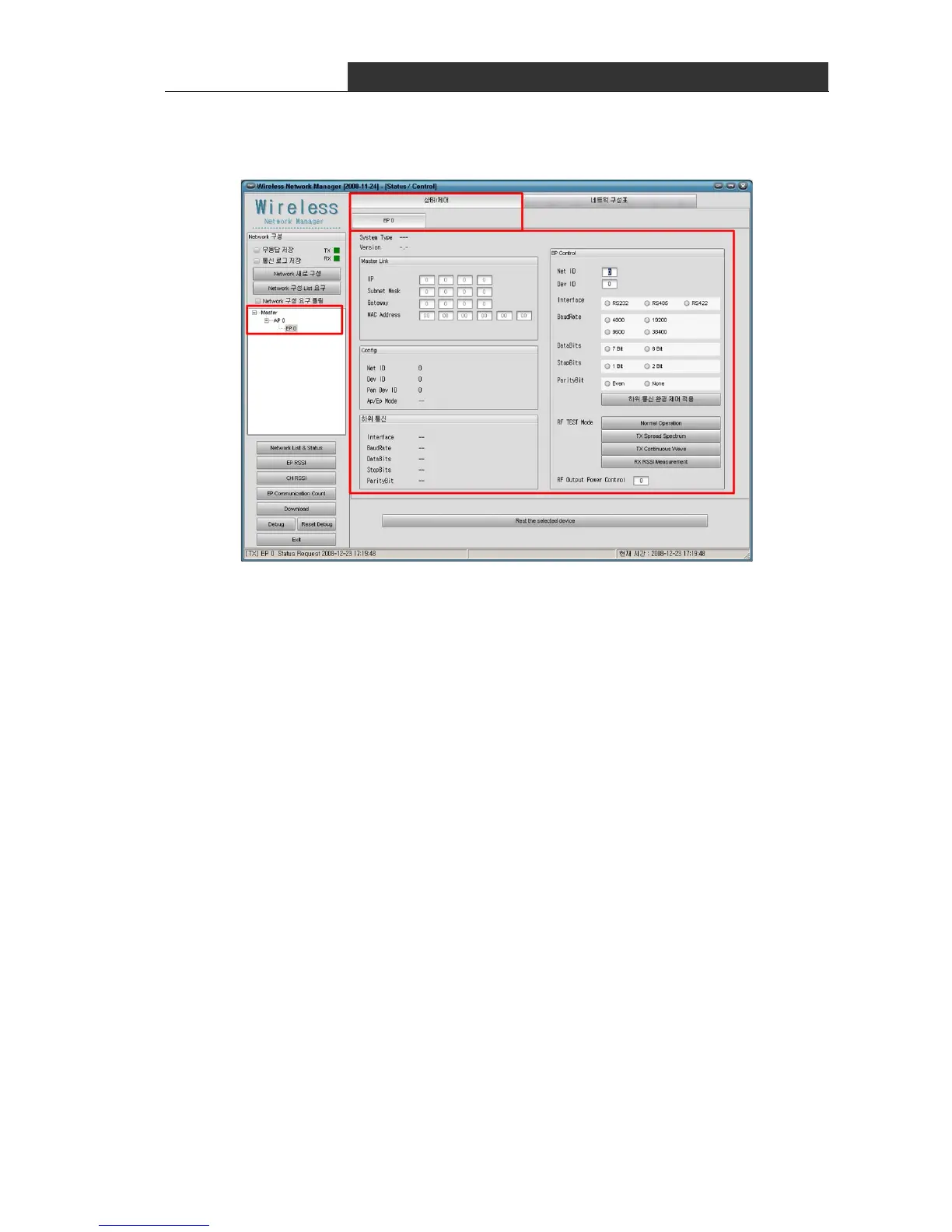

The following is the status information of EP.
∎ System Type : Type of system.
∎ Version : Firmware version of EP.
∎ Master Link : Network information to communicate with Master.
(User do not need to set this information.)
∎ Config : Configuration information of EP
∎ Comm. of End Device : Information of serial port to communicate with End-device
∎ EP Control : Item to control EP.
[Caution.1] When you want to see the status or control the value, "Network Polling" must
not be checked. GUI program requests the network device list when "Network Polling" is
checked and the status of selected device in other case, by periods.
[Caution.2] If you couldn't see the upper screen, please confirm whether you select EP!
