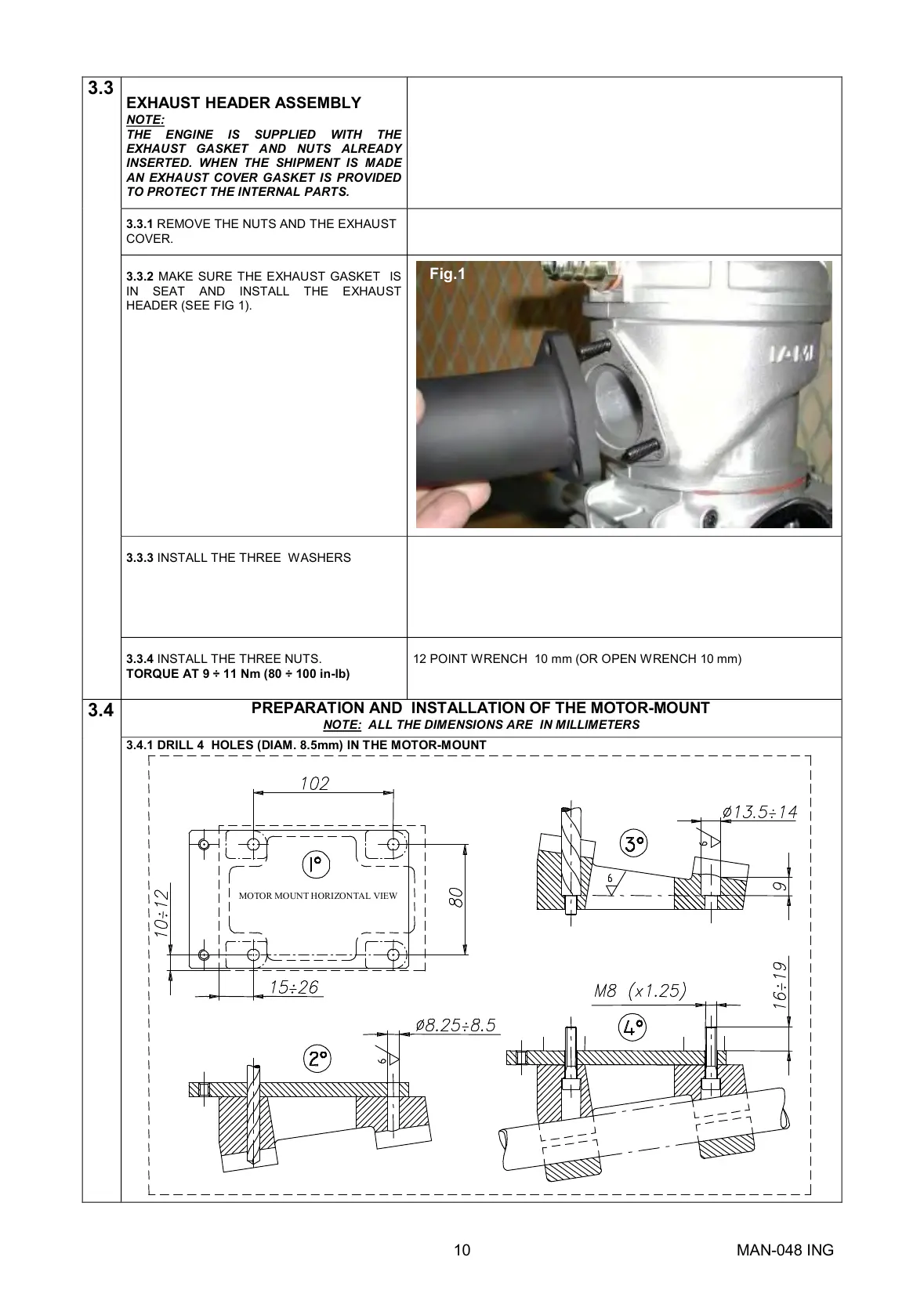

3.3

EXHAUSTHEADERASSEMBLY

NOTE:

THE ENGINE IS SUPPLIED WITH THE

EXHAUST GASKET AND NUTS ALREADY

INSERTED. WHEN THE SHIPMENT IS MADE

AN EXHAUST COVER GASKET ISPROVIDED

TOPROTECTTHEINTERNALPARTS.

3.3.1REMOVETHENUTSANDTHEEXHAUST

COVER.

3.3.2MAKE SURETHEEXHAUSTGASKET IS

IN SEAT AND INSTALL THE EXHAUST

HEADER(SEEFIG1).

3.3.3INSTALLTHETHREE WASHERS

3.3.4INSTALLTHETHREENUTS.

TORQUEAT9÷11Nm(80÷100i nlb)

12POINTWRENCH10mm(OROPENWRENCH10mm)

PREPARATIONANDINSTALLATIONOFTHEMOTORMOUNT

NOTE: ALLTHEDIMENSIONSAREINMILLIMETERS

3.4

3.4.1DRILL4HOLES(DIAM.8.5mm)INTHEMOTORMOUNT

Fig.1

MOTORMOUNTHORIZONTALVIEW
