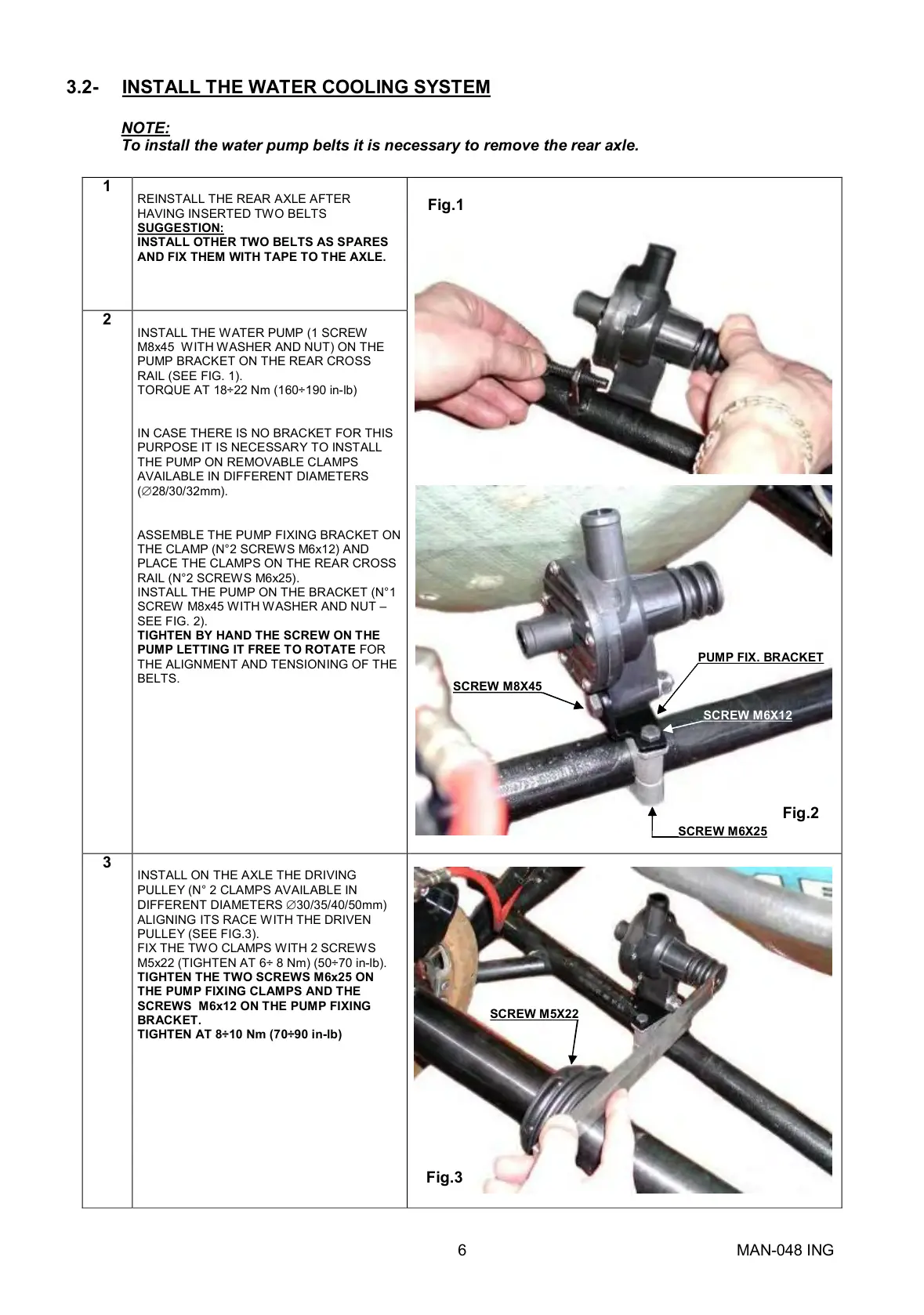

3.2 INSTALLTHEWATERCOOLINGSYSTEM
NOTE:
Toinstallthewaterpumpbeltsitisnecessarytoremovetherearaxle.
1
REINSTALLTHEREARAXLEAFTER
HAVINGINSERTEDTWOBELTS
SUGGESTION:
INSTALLOTHERTWOBELTSASSPARES
ANDFIXTHEM WITHTAPETOTHEAXLE.
2
INSTALLTHEWATERPUMP(1SCREW
M8x45WITHWASHERANDNUT)ONTHE
PUMPBRACKETONTHEREARCROSS
RAIL(SEEFIG.1).
TORQUEAT18÷22Nm(160÷190inlb)
INCASETHEREISNOBRACKETFORTHIS
PURPOSEITISNECESSARYTOINSTALL
THEPUMPONREMOVABLECLAMPS
AVAILABLEINDIFFERENTDIAMETERS
(Æ28/30/32mm).
ASSEMBLETHEPUMPFIXINGBRACKETON
THECLAMP(N°2SCREWSM6x12)AND
PLACETHECLAMPSONTHEREARCROSS
RAIL(N°2SCREWSM6x25).
INSTALLTHEPUMPONTHEBRACKET(N°1
SCREWM8x45WITHWASHERANDNUT–
SEEFIG.2).
TIGHTENBYHANDTHESCREWONTHE
PUMPLETTINGITFREETOROTATEFOR
THEALIGNMENTANDTENSIONINGOFTHE
BELTS.
3
INSTALLONTHEAXLETHEDRIVING
PULLEY(N°2CLAMPSAVAILABLEIN
DIFFERENTDIAMETERS Æ30/35/40/50mm)
ALIGNINGITSRACEWITHTHEDRIVEN
PULLEY(SEEFIG.3).
FIXTHETWOCLAMPSWITH2SCREWS
M5x22(TIGHTENAT6÷8Nm)(50÷70inlb).
TIGHTENTHETWOSCREWSM6x25ON
THEPUMPFIXINGCLAMPSANDTHE
SCREWSM6x12ONTHEPUMPFIXING
BRACKET.
TIGHTENAT8÷ 10Nm(70÷90inlb)
Fig.3
Fig.1
Fig.2
SCREWM6X12
PUMPFIX.BRACKET
SCREWM8X45
SCREWM6X25
SCREWM5X22
