MAN048ING21

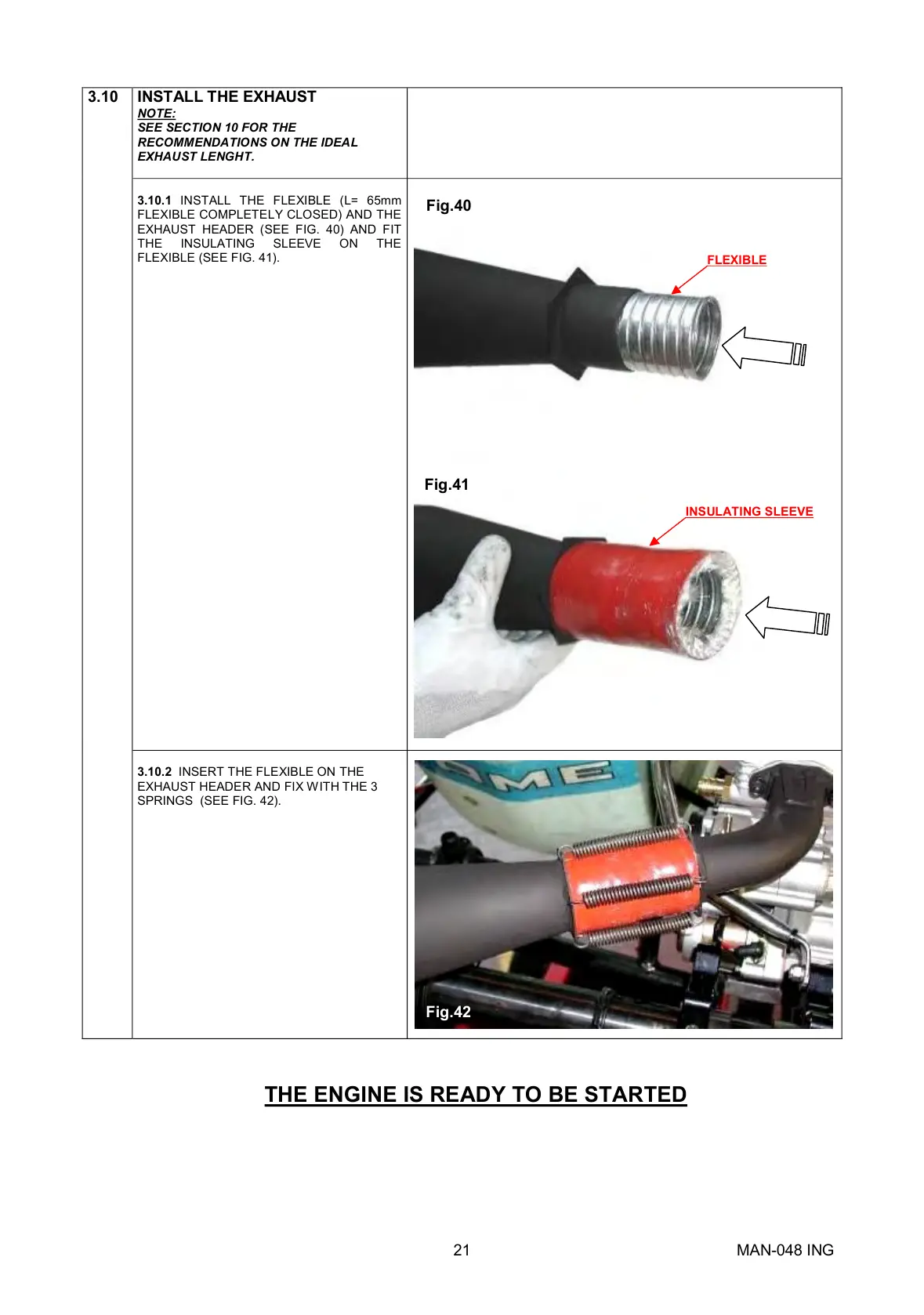

3.10 INSTALLTHEEXHAUST
NOTE:
SEESECTION10FORTHE
RECOMMENDATIONSONTHEIDEAL
EXHAUSTLENGHT.
3.10.1 INSTALL THE FLEXIBLE (L= 65mm
FLEXIBLECOMPLETELYCLOSED)ANDTHE
EXHAUST HEADER (SEE FIG. 40) AND FIT
THE INSULATING SLEEVE ON THE
FLEXIBLE(SEEFIG.41).
3.10.2 INSERTTHEFLEXIBLEONTHE
EXHAUSTHEADERANDFIX WITHTHE3
SPRINGS(SEEFIG.42).
THEENGI NEISREADYTOBESTARTED
Fig.40
Fig.41
Fig.39
INSULATINGSLEEVE
FLEXIBLE
Fig.42
