IBC SFC-199 User Manual

INSTALLATION AND OPERATION INSTRUCTIONS
2-2
SFC BOILER / WATER HEATERS - SFC 199
2.2 CONTROL

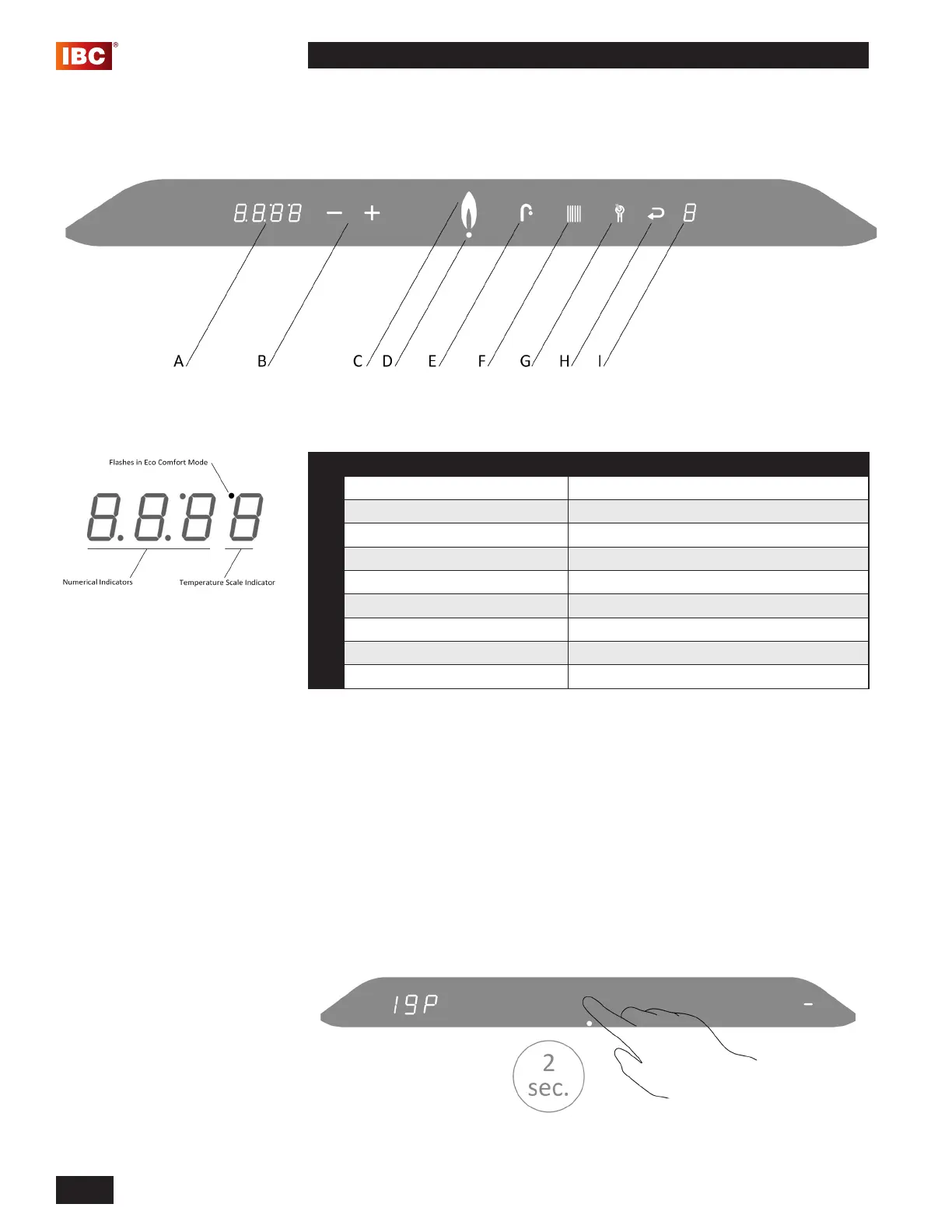

ICON FUNCTION
A
Numerical Display Main Display
B
Plus & Minus Temperature Adjustment
C
Flame Burner ON Indicator
D
Dot Power ON Indicator
E
Faucet DHW Indicator
F
Radiator Heating Indicator
G
Wrench Service / Reset
H
Return Arrow Enter / Save
I
Numerical Display Service Display
Table 9: Controller Indicators and Touch Pad
2.3 INSTALLER INTERFACE
2.3.1 Turning Appliance ON/OFF
To turn on the unit, touch the area above the dot for 2 seconds. Now only the dot is
illuminated.
To turn off the unit, touch the area above the dot for 2 seconds. A dash appears to
the right and the pressure psi displays to the left.
