1. Refer to the documentation that comes with your rack cabinet for additional
information.
Note: Removing the rack doors and side panels might make your Rack PDU
installation easier.
2. Install the Rack PDU 3 on the vertical mounting plate 2 with four M3x5
screws 1 that come with this option. Make sure that the countersink holes in
the mounting plate are facing away from the device.
Note: Align the Rack PDU to one end or the other of the vertical mounting
plate to leave room for a second device.
3. If you have a second M/PDU device to install, install it on the vertical mounting
plate with four M3x5 screws that come with the second device.
4. Install the vertical mounting plate 2 in the side of your rack cabinet with four
M6 screws and nuts that come with this option. Make sure that the
four-connector side of the Rack PDU is facing the rear of your rack cabinet, and
leave room between the vertical mounting plate and the rear EIA mounting
flanges for the cable-management bracket 1.

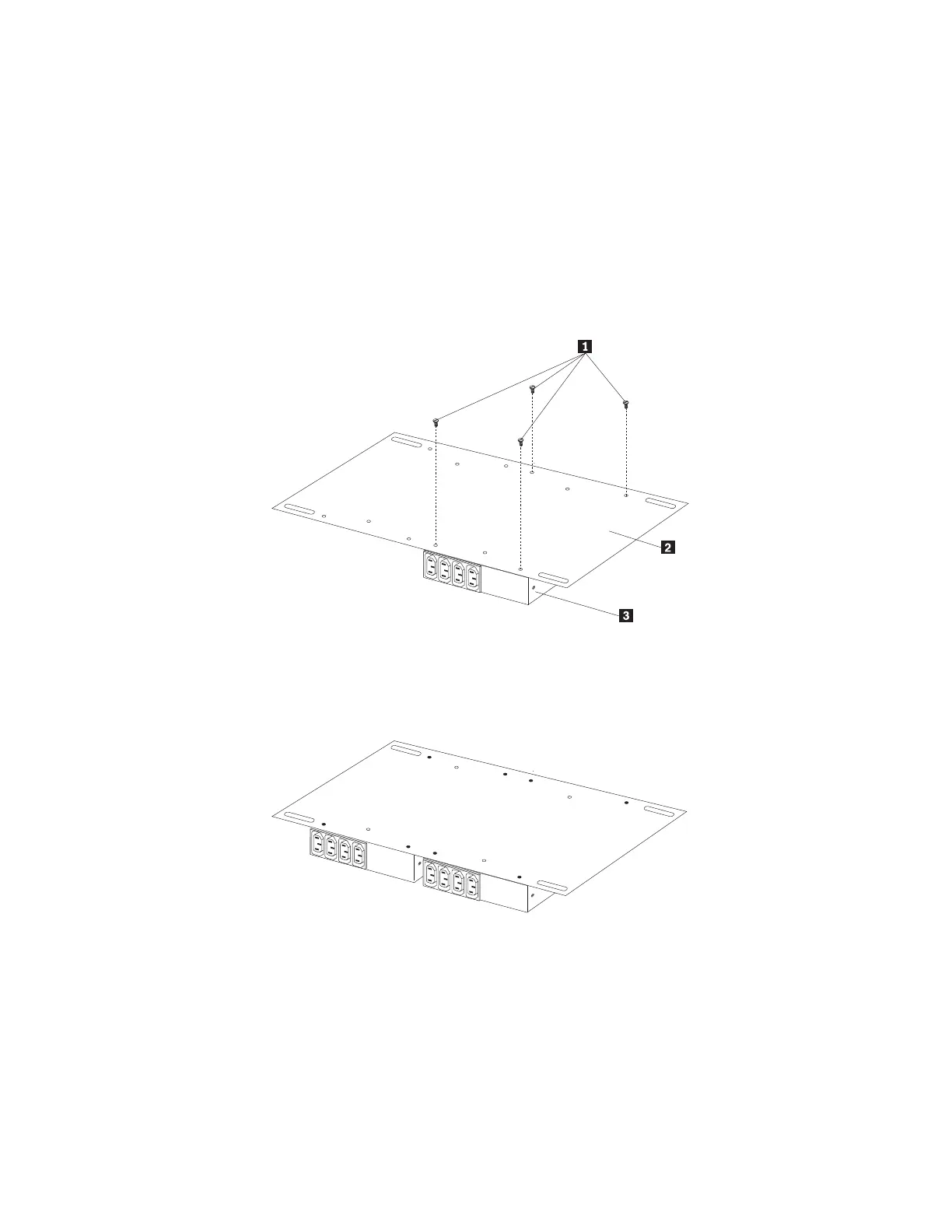

Figure 62. Installing the Rack PDU on the vertical mounting plate
Figure 63. Installing a second Rack PDU
Installing Optional Devices 157
