Icom IC-725 Instruction Manual

3

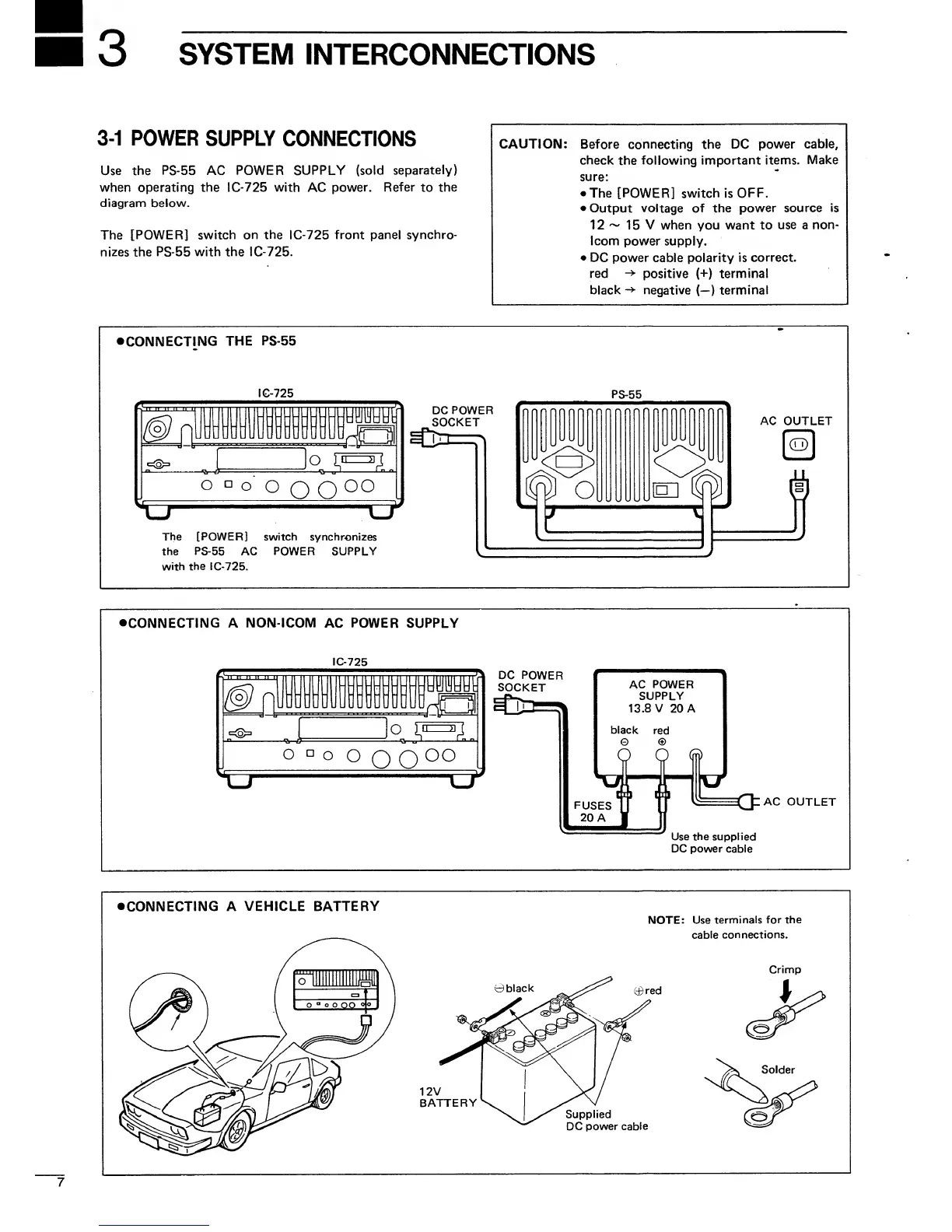

SYSTEM
INTERCONNECTIONS
3-1
POWER
SUPPLY
CONNECTIONS
Use the PS-55 AC
POWER SUPPLY (sold
separately)
when operating
the
IC-725
with
AC
power. Refer
to
the
diagram
below.
The
[POWER] switch on
the
IC-725
front panel synchro-
nizes the PS-55
with the IC-725.
CAUTION:
Before connecting the
DC power
cable,
check
the
following important
items.
Make
sure:
•
The [POWER] switch
is
OFF.
•
Output voltage of the
power source is
12
~
15
V when you want to
use a non-
Icom
power supply.
•
DC
power cable
polarity is
correct,
red
positive
(+)
terminal
black
-»
negative {—
)
terminal
•
CONNECTING
THE PS-55
IC-725
<2>
)(3
[s=^n;
o
n
o
o
o
O
00
-l_r
The [POWER] switch
synchronizes
the
PS-55
AC POWER SUPPLY
with
the IC-725.
PS-55
DC POWER
SOCKET
O
AC
OUTLET
(u)
•CONNECTING A
NON-ICOM
AC POWER SUPPLY
IC-725
o
o
D
o
O
o O
00
(J
AC
OUTLET
Use the supplied
DC power cable
