Icom IC-725 Instruction Manual

3
SYSTEM
INTERCONNECTIONS

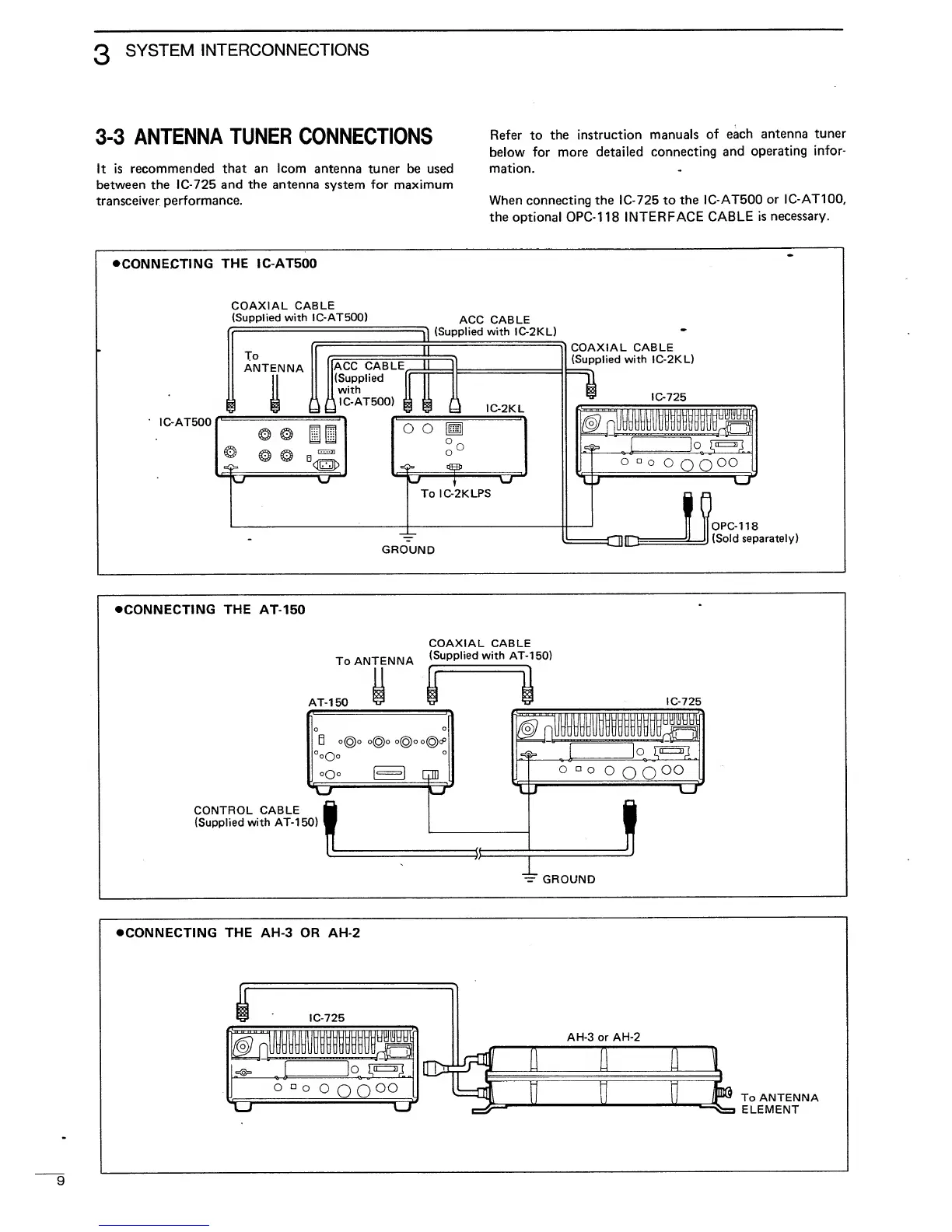

3-3
ANTENNA TUNER CONNECTIONS
It
is
recommended that
an
Icom antenna
tuner be used
between the IC-725
and the antenna
system
for
maximum
transceiver
performance.
Refer to
the instruction
manuals
of
each
antenna
tuner
below for more
detailed
connecting
and
operating
infor-
mation.
When connecting the IC-725 to
the
IC-AT500
or
IC-AT100,
the
optional
OPC-118 INTERFACE
CABLE
is
necessary.
•CONNECTING
THE IC-AT500
COAXIAL
CABLE
(Supplied
with IC-AT500)
To
ANTENNA
IC-AT500
QQ
ACC
CABLE
(Supplied
[|
with
IC-AT500)
£
ACC
CABLE
(Supplied with IC-2KL)
Q
IC-2KL
P
1
U
To
IC-2KLPS
GROUND
COAXIAL CABLE
(Supplied
with
IC-2KL)
IC-725
IIUl
II
j__
O
a
O
O
oo
oo
[
OPC-118
J
(Sold separately)
•CONNECTING THE
AT-150
COAXIAL
CABLE
To
ANTENNA
(Supplied with AT-1
50)
IC-725
CONTROL
CABLE
(Supplied
with AT-1
50)
—
GROUND
•CONNECTING
THE AH-3 OR AH-2
To ANTENNA
ELEMENT
