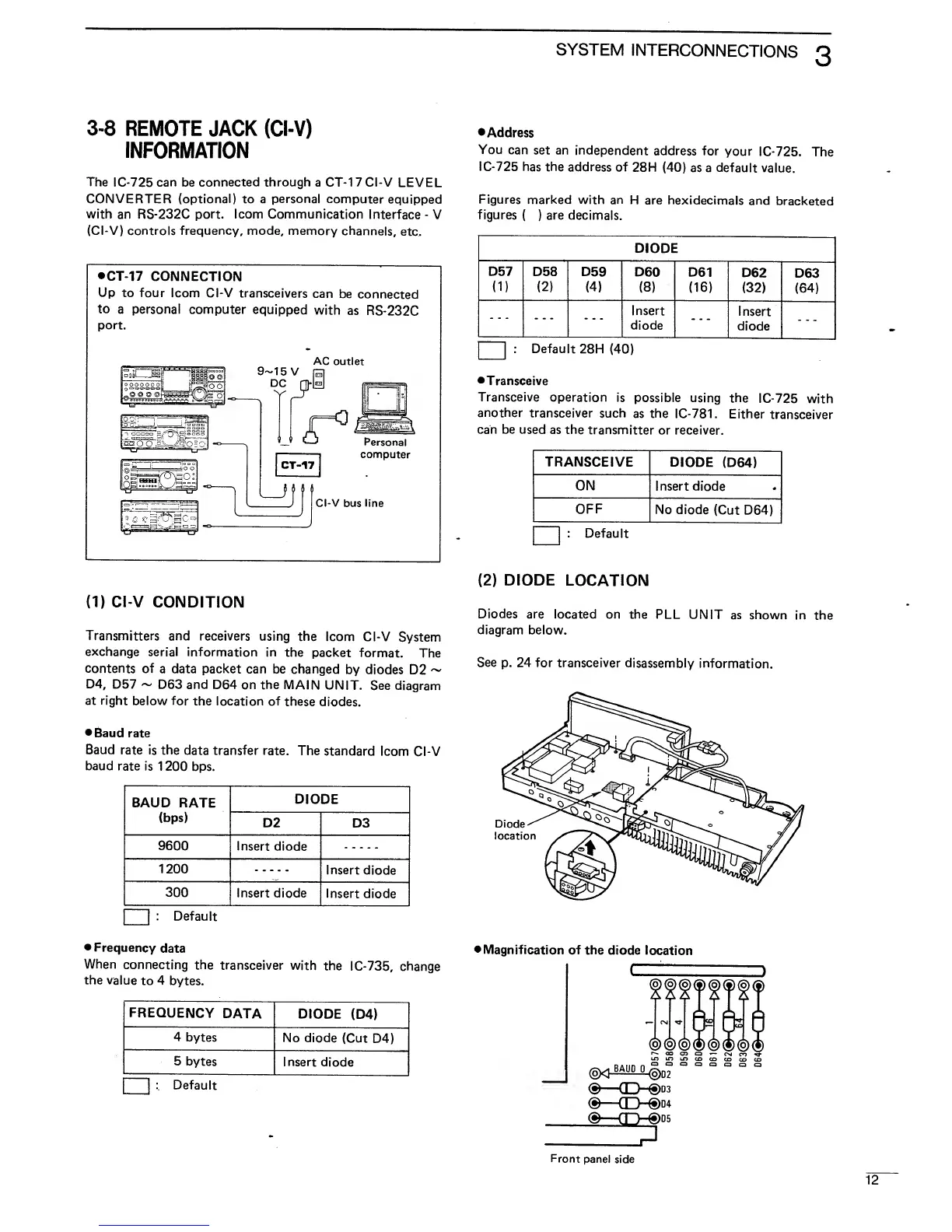

SYSTEM
INTERCONNECTIONS
3-8
REMOTE
JACK
(Cl-V)
INFORMATION
The
IC-725
can
be
connected through
a CT-17CI-V
LEVEL
CONVERTER (optional)
to a
personal
computer
equipped
with
an RS-232C
port. Icom Communication
Interface
-
V
(Cl-V) controls frequency, mode, memory
channels,
etc.
•
CT-17
CONNECTION
Up
to four
Icom Cl-V
transceivers
can
be
connected
to
a personal
computer
equipped
with
as
RS-232C
port.
AC
outlet
Personal
computer
Cl-V bus line
(1)
Cl-V
CONDITION
Transmitters and
receivers using
the
Icom
Cl-V
System
exchange
serial information
in
the
packet
format.
The
contents of
a data packet
can be changed
by diodes
D2
~
D4,
D57
~
D63 and
D64 on the
MAIN
UNIT.
See diagram
at right
below for
the location of
these
diodes.
•
Baud
rate
Baud
rate
is
the
data
transfer rate.
The
standard
Icom
Cl-V
baud
rate is
1
200 bps.
BAUD RATE
(bps)
DIODE
D2
D3
9600
Insert
diode
1200
Insert
diode
300
Insert
diode
Insert
diode
|
:
Default
•
Frequency
data
When
connecting
the
transceiver
with
the
IC-735,
change
the
value
to
4
bytes.
FREQUENCY
DATA
DIODE
(D4)
4 bytes
No diode
(Cut
D4)
5 bytes
Insert
diode
Default
•Address
You
can
set an
independent
address for
your
IC-725.
The
IC-725
has the
address of
28H
(40)
as a default
value.
Figures marked
with an
H are
hexidecimals
and
bracketed
figures
(
)
are
decimals.
DIODE
D57
(1)
D58
(2)
D59
(4)
D60
(8)
D61
(16)
D62
(32)
D63
(64)
Insert
diode
Insert
diode
Default
28H
(40)
•Transceive
Transceive
operation
is
possible using
the
IC-725
with
another
transceiver
such
as the
IC-781.
Either
transceiver
can be used
as the
transmitter
or receiver.
TRANSCEIVE
DIODE
(D64)
ON
Insert
diode
OFF
No diode
(Cut D64)
Default
(2)
DIODE
LOCATION
Diodes
are
located on
the PLL
UNIT
as shown
in
the
diagram below.
See
p.
24
for
transceiver
disassembly
information.
•
Magnification
of the
diode
location
c
©4
BAUD
<§)02
@
CD-®D3
@
CD-®D4
©
d>Q
05
mmirtcDeococDco
Front
panel
side
