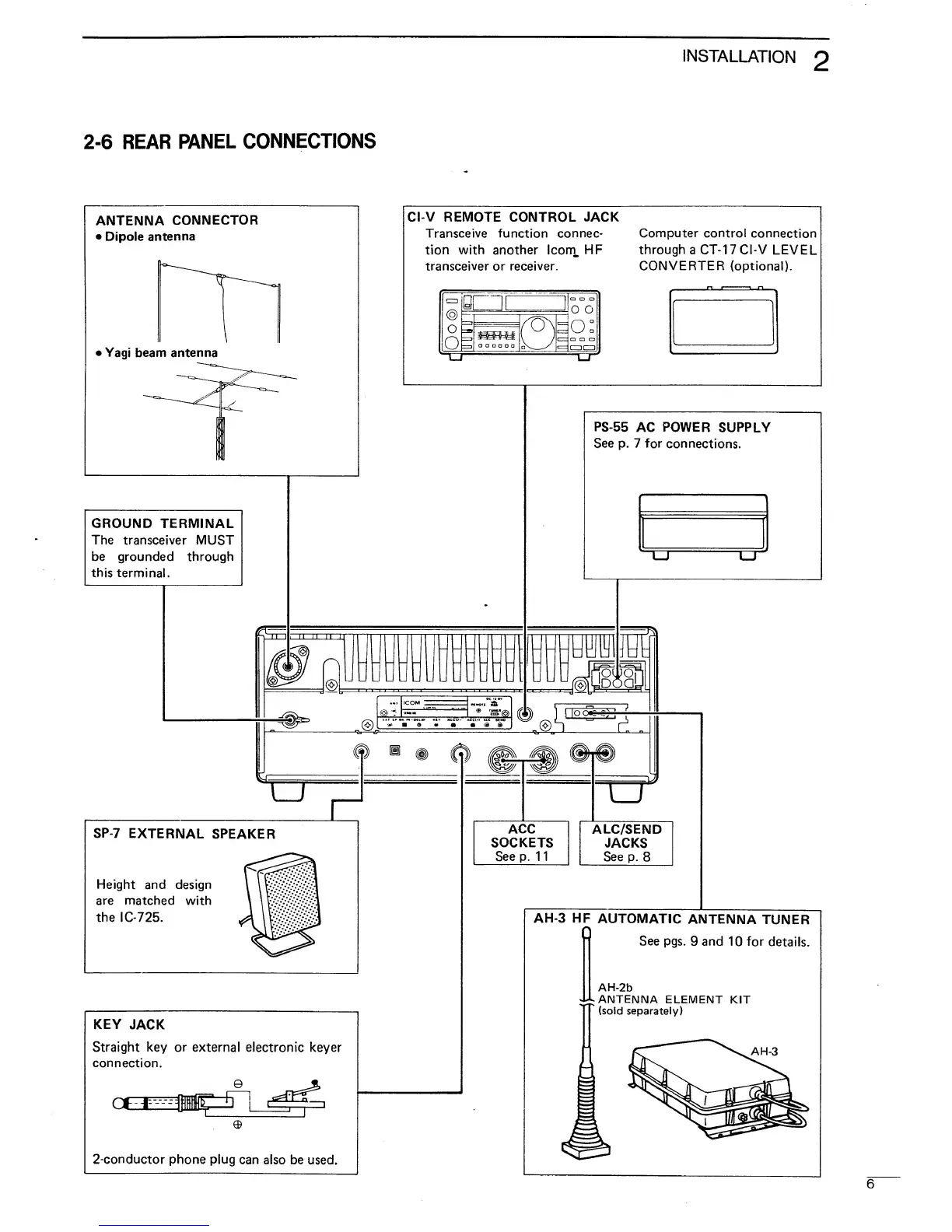

INSTALLATION
2
2-6
REAR
PANEL
CONNECTIONS
ANTENNA
CONNECTOR
Dipole
antenna
\
Yagi beam antenna
GROUND TERMINAL
The transceiver
MUST
be grounded through
this
terminal.
CI
V
REMOTE CONTROL
JACK
Transceive function connec-
Computer control
connection
tion with another
I
com.
HF through
a CT-1
7
Cl-V
LEVEL
transceiver or receiver.
CONVERTER
(optional).
CZ3
©
y ii i
o
o:
a
o
O
PS-55
AC
POWER
SUPPLY
See
p.
7
for
connections.
XT
5
SP-7
EXTERNAL
SPEAKER
Height and design
are matched
with
the
IC-725.
KEY
JACK
Straight key or
external electronic keyer
connection.
2-conductor
phone plug
can
also be
used.
ACC
SOCKETS
Seep. 11
ALC/SEND
JACKS
See
p.
8
AH-3 HF
AUTOMATIC
ANTENNA
TUNER
^
See
pgs.
9
and
10
for
details.
AH-2b
ANTENNA
ELEMENT
KIT
(sold separately)
