2-1

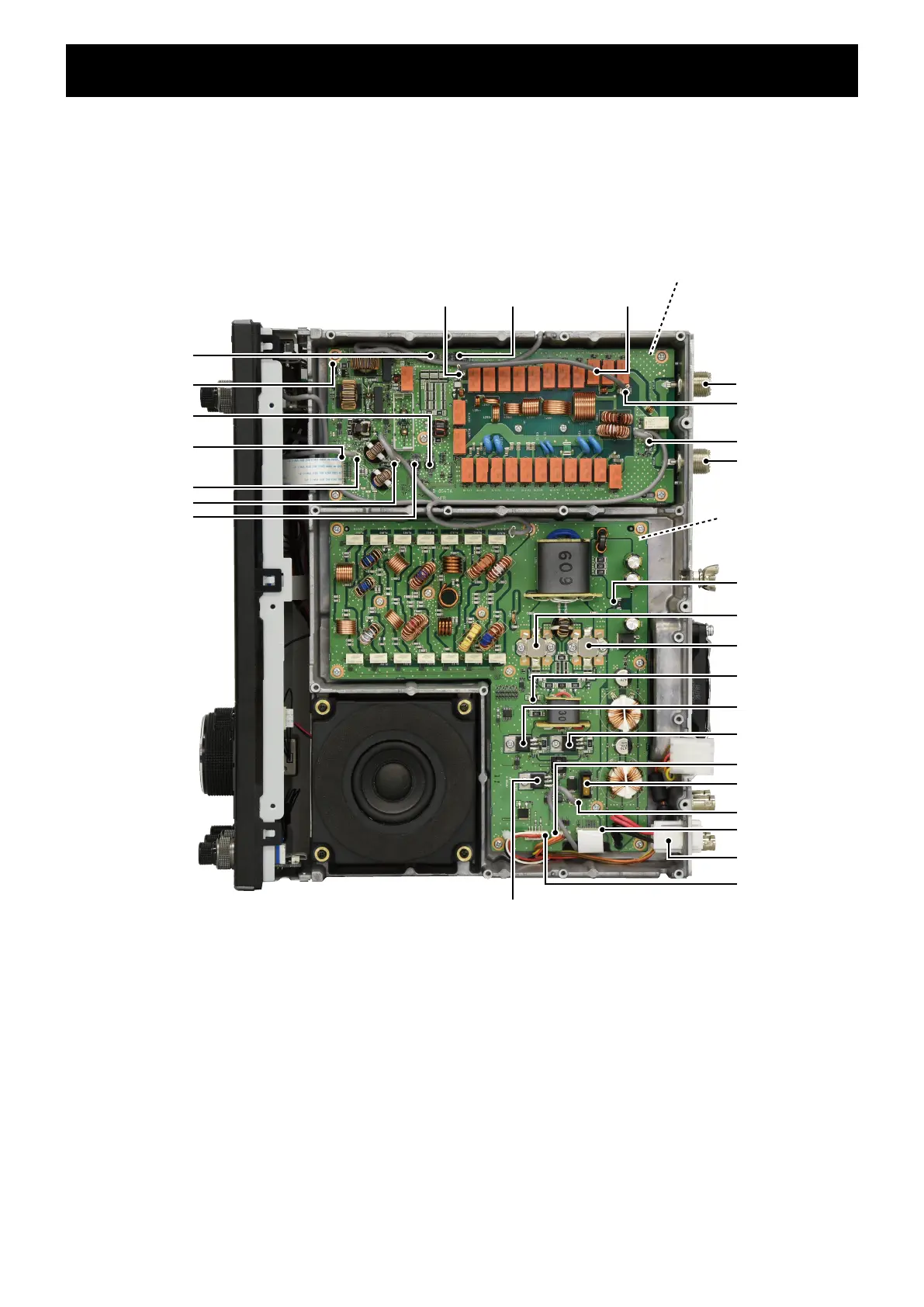

SECTION 2 INSIDE VIEWS
• PA/TUNER (TOP VIEW)
T/R CTRL
(Q503)
SHIFT REGISTER
(IC2831)
SHIFT REGISTER
(IC2821)
SHIFT REGISTER
(IC2841)
SHIFT REGISTER
(IC2811)
ANT1
ANT2
J2003
CURRENT DET
(IC401)
CURRENT DET
(IC411)
PWR AMP
(Q302)
PWR AMP
(Q301)
DRIVE AMP
(Q202)
DRIVE AMP
(Q201)
FUSE
(F432)
J101
J2002
W2001J2001
J1003
J1801
J1001
W1
J701
J591
PRE DRIVE
(Q101)
TUNER UNIT
J721
PA UNIT
