Icom iC-FR5000 Service Manual

6 - 1

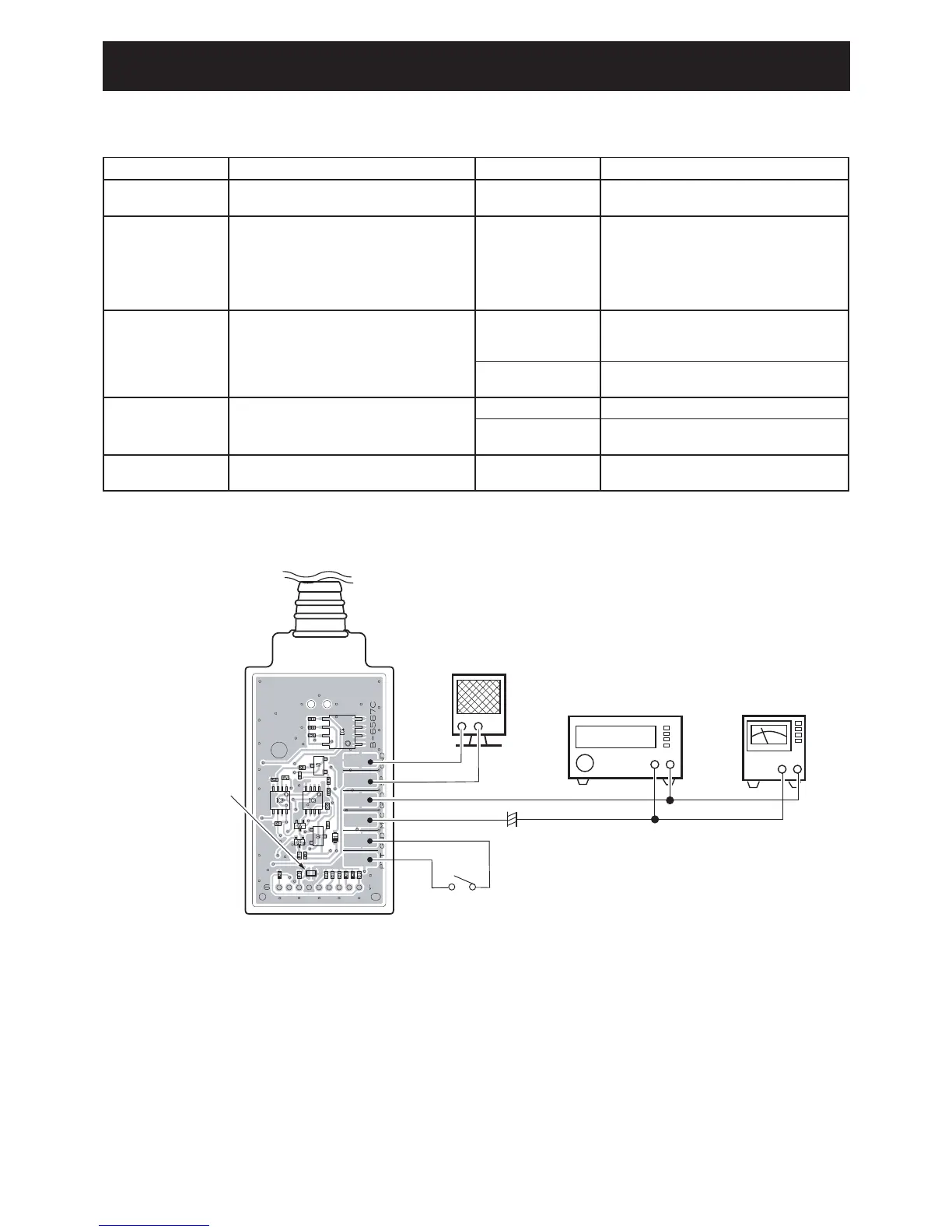

SECTION 6 ADJUSTMENT PROCEDURE
6-1 PREPARATION
¤ REQUIRED EQUIPMENTS
EQUIPMENT
SPECIFICATION
EQUIPMENT SPECIFICATION
Adjustment
Software
"CS-FR5000" (Revision 1.0 or later) JIG cable
Modifi ed OPC-1122U (USB type)
(see the illust below)
Power Supply
Output voltage : 13.6 V DC [FR5000]
13.2 V DC [FR5100]
Current capacity : More than 20 A
[FR5000]
More than 10 A
[FR5100]
Attenuator
Power attenuation : 40 dB
Capacity : More than 60 W
[FR5000]
More than 30 W
[FR5100]
RF Power Meter
(terminated type)
Measuring range :
1–60 W [FR5000]
1–30 W [FR5100]
Frequency range : 100–300 MHz
Impedance : 50
Ω
SWR : Less than 1.2 : 1
Standard Signal
Generator (SSG)
Frequency range : 0.1–300 MHz
Output level : 0.1 mV to 32 mV
(–127 to –17 dBm)
Audio Generator
Frequency range : 300–3000 Hz
Output level : 1–500 mV
Frequency Counter
Frequency range : 0.1–300 MHz
Frequency accuracy : ±1 ppm or better
Input level : Less than 1 mW
AC Millivoltmeter Measuring range : 10 mV to 10 V
Oscilloscope
Frequency range : DC–20 MHz
Measuring range : 0.01–20 V
Modulation
Analyzer
Frequency range : 30–300 MHz
Measuring range : 0 to ±10 kHz
External Speaker
Input impedance : 4
Ω
Capacity : More than 5 W
¤ JIG CABLE
Add a jumper wire here
OPC-1122U
(USB type Cloning cable)
+
GND
MIC
PTT
GND
PTT
4.7 µF
+−
AC MILLIVOLT METER
(10 mV to 10 V)
AUDIO GENERATOR
(300–3000 Hz/1–100 mV)
+−
GND
SP
+−
EXT. SPEAKER
(5 W/4 Ω)
