Icom iC-FR5000 Service Manual

11 - 5
CD6125SA1J0 J602
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
47P
C619
47P
C603
47P
C601
47P
C608
47P
C606
47P
C605
47P
C620
NC
47P
C616
47P
C618
47P
C617
47P
C607
47P
C609
47P
C610
47P
C611
47P
C612
47P
C613
47P
C614
47P
C615
IMSA-9631S-28Y921
J601
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
MINISMDC150F
S1
22P
C602
22P
C604
47P
C621
IO9
EXAD
RXD
IO5
IO7
DISC
EXDA
MODIN
CTS
IO4
TXD
GND
IO3
GND
AFOUT
RTS
IO8
IO1
IO6
D-SUB25 pins
CONNECT UNIT
DATAIN
VCC
VCC
VCC
VCC
VCC
IO2
GND
SpecificationDescriptionPin NamePin No.
NC
TXD
RXD
RTS
CTS
NC
GND
MOD IN
DISC OUT
EXT. D/A
VCC
EXT. A/D
NC
GND
EXT.I/O 15
EXT.I/O 16
EXT.I/O 17
EXT.I/O 18
EXT.I/O 19
DATA I N
EXT.I/O 21
AF OUT
EXT.I/O 23
EXT.I/O 24
EXT.I/O 25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
No connection
Output terminal for serial communication data.
Input terminal for serial communication data.
Output terminal for request-to-send data.
Input terminal for clear-to-send data.
No connection
Serial/digital signal ground
Modulator input from an external terminal unit.
Output terminal for AF signals from the AF detector circuit.
Output level is fixed, regardless of [AF] control.
The desired function can be assigned.*
(Default: Null)
13.6 V DC output
Customize A/D input (Not used)
No connection
Ground
The desired function can be assigned.*
(Default: Null)
The desired function can be assigned.*
(Default: P0 Monitor Output)
The desired function can be assigned.*
(Default: Busy Output)
The desired function can be assigned.*
(Default: Null)
The desired function can be assigned.*
(Default: EPTT Input)
Input terminal for data.
The desired function can be assigned.*
(Default: Analog Audible Output)
The AF detector Output.
The desired function can be assigned.*
(Default: Mic Mute Output)
The desired function can be assigned.*
(Default: Null)
The desired function can be assigned.*
(Default: Mic Hanger Output)
—
—
—
—
—
—
—
Input level: 300 mV rms
Output level: 300 mV rms
—
Output current: Less than 1 A
—
—
—
+5 V pull up, Active=L
+5 V pull up, Active=L
+5 V pull up, Active=L
+5 V pull up, Active=L
+5 V pull up, Active=L
—
+5 V pull up, Active=L
—
+5 V pull up, Active=L
+5 V pull up, Active=L
+5 V pull up, Active=L
* The desired function can be assigned using the optional CS-FR5000 CLONING SOFTWARE. Ask your dealer for details.
q!3
!4 @5

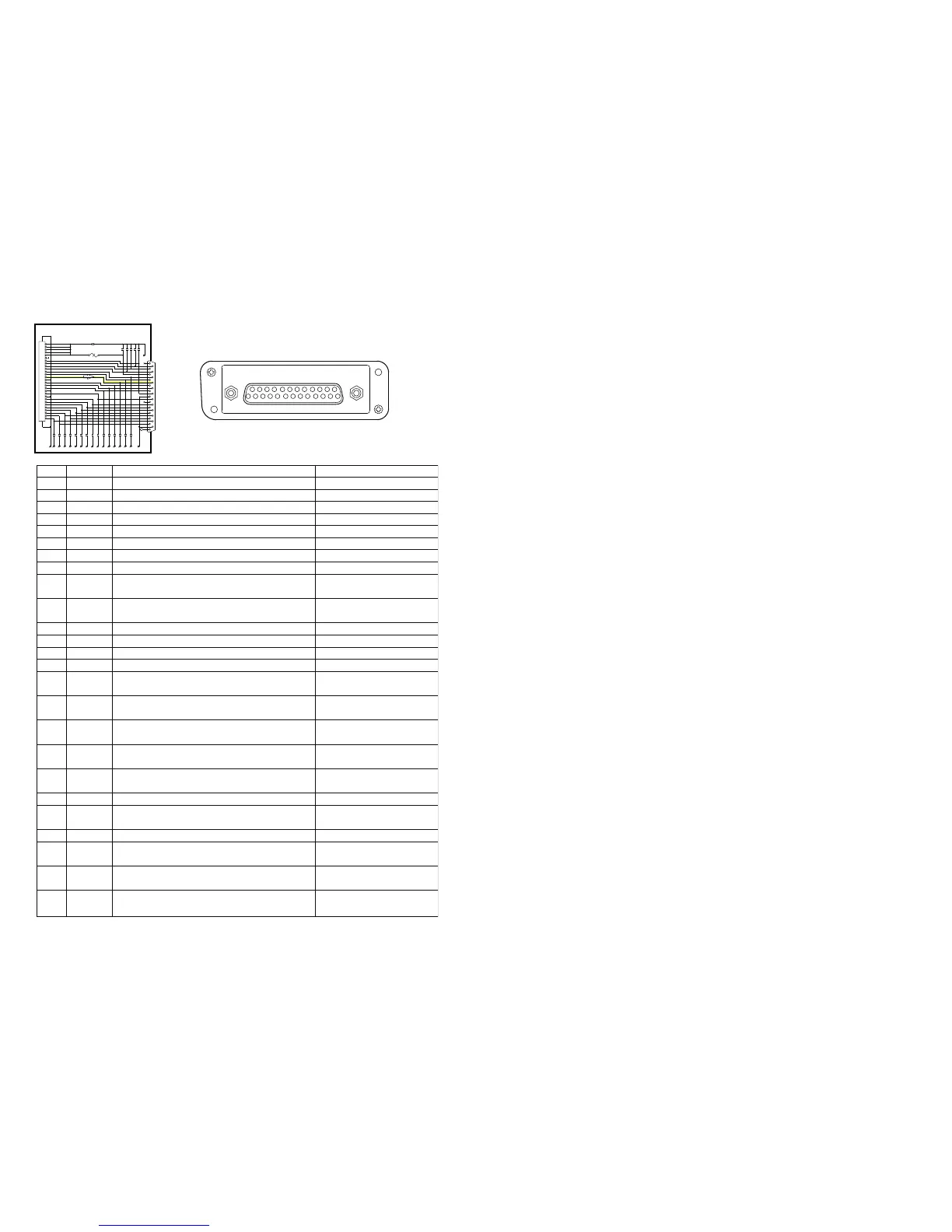

• ACCESSORY CONNECTOR (CONNECT UNIT) INFORMATION

Icom iC-FR5000 Specifications

General

Brand	Icom
Model	iC-FR5000
Category	Repeater
Language	English
