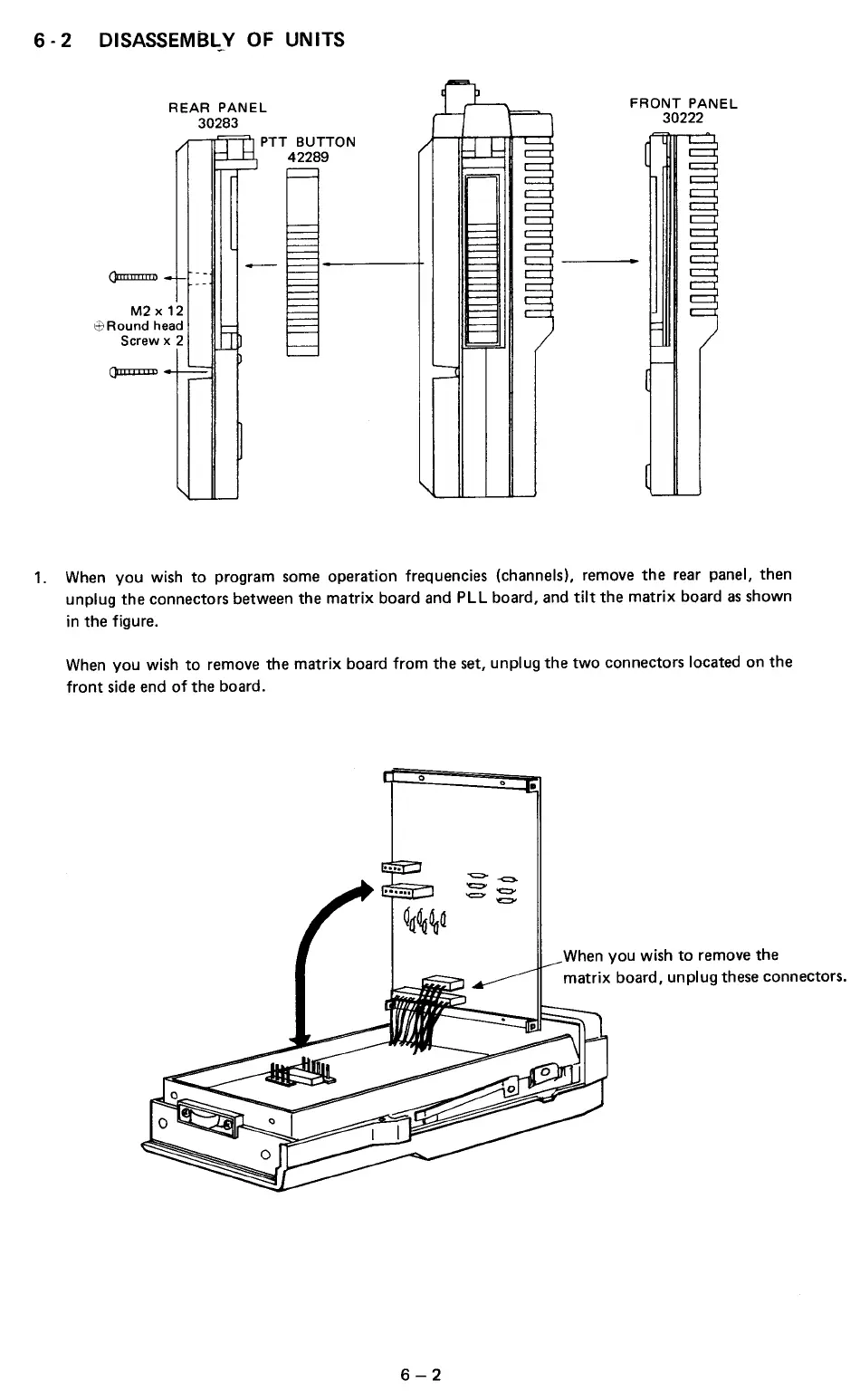

6 - 2 DISASSEMBLY
OF
UNITS
REAR
PANEL
30283
M2
x 12
ifJRound head
Screw x 2
~__.,..,:;==;::>,
PTT BUTTON
42289
FRONT
PANEL
30222
1. When you wish
to
program some operation frequencies (channels), remove
the
rear panel,
then
unplug
the
connectors between
the
matrix board and PLL board, and tilt
the
matrix board
as
shown
in
the
figure.
When you wish
to
remove
the
matrix board from
the
set, unplug
the
two connectors located on
the
front
side end
of
the
board.
When you wish
to
remove
the
matrix board, unplug these connectors.
6-2
