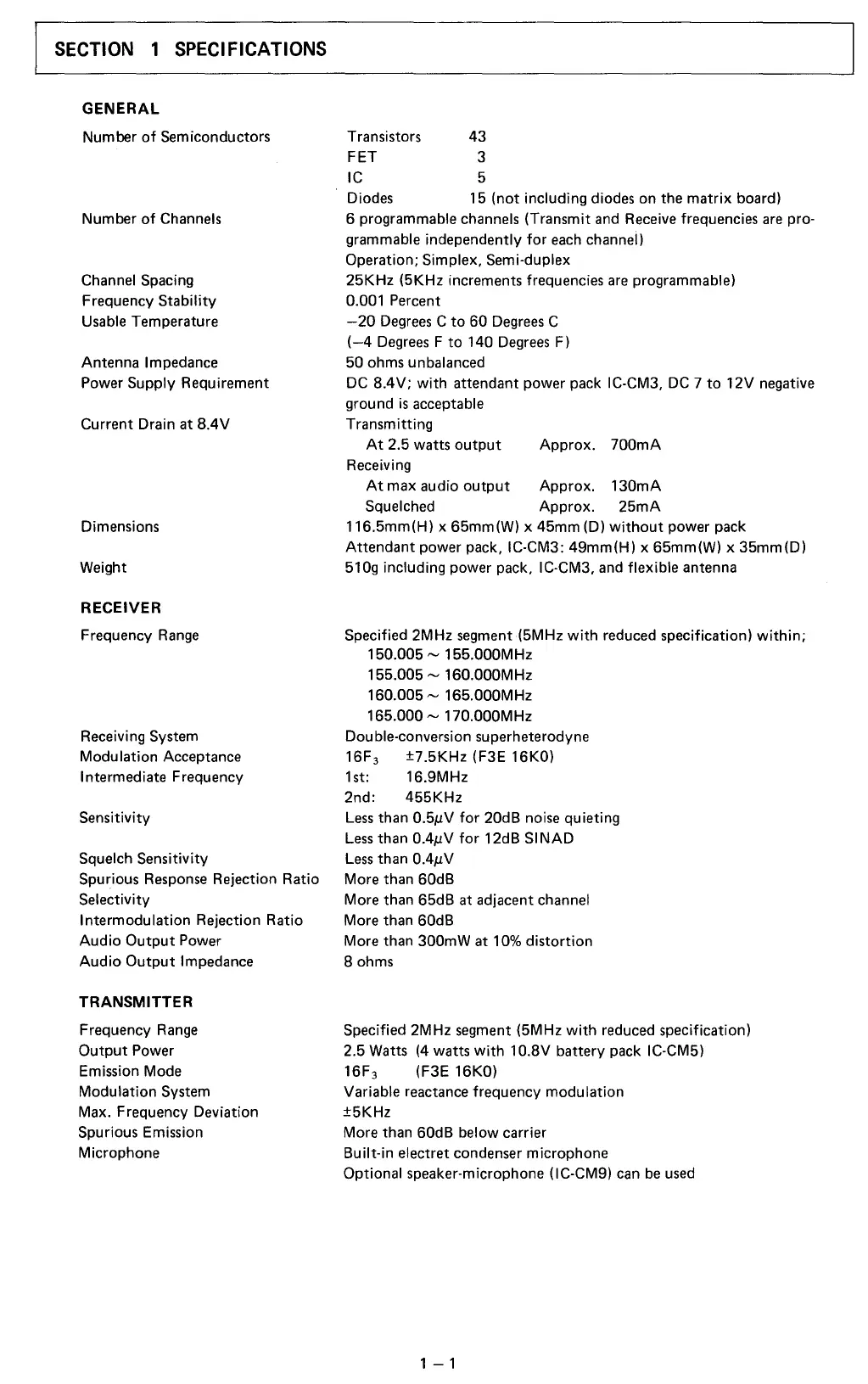

SECTION 1 SPECIFICATIONS
GENERAL
Number
of
Semiconductors
Number
of
Channels
Channel
Spacing
Frequency
Stability
Usable Temperature
Antenna
Impedance
Power Supply Requirement
Current Drain at 8.4V
Dimensions
Weight
RECEIVER
Frequency
Range
Receiving System
Modulation Acceptance
Intermediate Frequency
Sensitivity
Squelch Sensitivity
Spurious
Response
Rejection Ratio
Selectivity
Intermodulation
Rejection Ratio
Audio
Output
Power
Audio
Output
Impedance
TRANSMITTER
Frequency
Range
Output
Power
Emission Mode
Modulation System
Max. Frequency Deviation
Spurious Emission
Microphone
Transistors
FET
IC
43
3
5
Diodes 15 (not including diodes on the
matrix
board)
6 programmable
channels (Transmit
and
Receive frequencies
are
pro-
grammable independently
for
each
channel)
Operation; Simplex, Semi-duplex
25KHz
(5KHz increments frequencies
are
programmable)
0.001 Percent
-20
Degrees
C
to
60
Degrees
C
(-4
Degrees
F
to
140
Degrees
F)
50 ohms unbalanced
DC
8.4
V;
with
attendant power pack I C-CM3,
DC
7
to
12V negative
ground
is
acceptable
Transmitting
At
2.5 watts
output
Approx.
700mA
Receiving
At
max audio
output
Approx.
130mA
Squelched Approx.
25mA
116.5mm(H) x 65mm(W) x 45mm (D)
without
power pack
Attendant
power pack, IC-CM3:
49mm(H)
x 65mm(W) x
35mm(D)
510g including power pack, IC-CM3,
and
flexible antenna
Specified 2MHz segment (5MHz
with
reduced specification)
within;
150.005 ~ 155.000MHz
155.005
~ 160.000M Hz
160.005
~
165.000MHz
165.000
~ 170.000MHz
Double-conversion superheterodyne
16F
3
±7 .5KHz ( F3E 16KO)
1st: 16.9MHz
2nd:
455KHz
Less
than 0.5µV
for
20dB noise quieting
Less
than 0.4µV
for
12dB
SI
NAD
Less
than 0.4µV
More than 60dB
More than 65dB at adjacent
channel
More than 60dB
More than
300mW at
10%
distortion
8 ohms
Specified 2MHz segment (5MHz
with
reduced specification)
2.5 Watts
(4
watts
with
10.BV battery pack IC-CM5)
16F
3
(F3E 16KO)
Variable reactance frequency modulation
±5KHz
More than 60dB below carrier
Built-in electret condenser microphone
Optional speaker-microphone (IC-CM9)
can
be
used
1 - 1
