Icom IC-H2 Service Manual

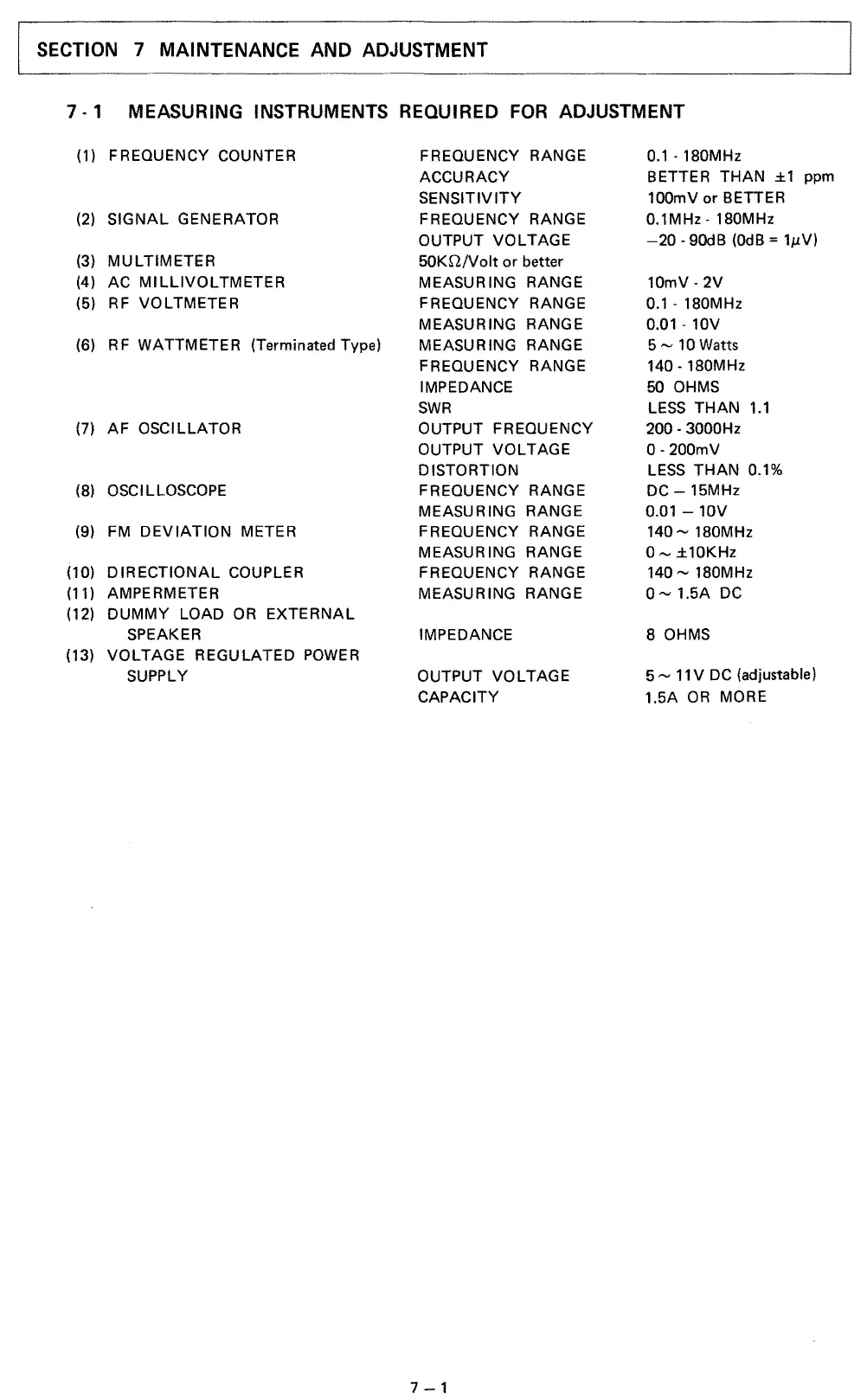

SECTION 7 MAINTENANCE AND ADJUSTMENT
7 -1 MEASURING INSTRUMENTS REQUIRED FOR ADJUSTMENT
(1) FREQUENCY COUNTER
(2) SIGNAL GENERATOR
(3) MULTIMETER
(4) AC MILLIVOLTMETER
(5) RF VOLTMETER
(6) RF WATTMETER (Terminated Type)
(7) AF OSCILLATOR
(8)
OSCILLOSCOPE
(9)
FM DEVIATION METER
(10)
DIRECTIONAL COUPLER
(11)
AMPERMETER
(12)
DUMMY LOAD OR EXTERNAL
SPEAKER
(13)
VOLTAGE REGULATED POWER
SUPPLY
FREQUENCY
RANGE
ACCURACY
SENSITIVITY
FREQUENCY
RANGE
OUTPUT VOLTAGE
50Krl/Volt or better
MEASURING RANGE
FREQUENCY RANGE
MEASURING RANGE
MEASURING RANGE
FREQUENCY RANGE
IMPEDANCE
SWR
OUTPUT FREQUENCY
OUTPUT VOLTAGE
DISTORTION
FREQUENCY
RANGE
MEASURING RANGE
FREQUENCY RANGE
MEASURING RANGE
FREQUENCY RANGE
MEASURING RANGE
IMPEDANCE
OUTPUT VOLTAGE
CAPACITY
7-1
0.1·180MHz
BETTER THAN ±1 ppm
100mV or BETTER
0.1MHz · 180MHz
-20 · 90dB (OdB = 1µV)
10mV · 2V
0.1·180MHz
0.01·10V
5 - 10 Watts
140 -180MHz
50 OHMS
LESS THAN 1.1
200- 3000Hz
0- 200mV
LESS THAN 0.1 %
DC - 15MHz
0.01 - 10V
140- 180MHz
0- ±10KHz
140- 180MHz
0-1.5A DC
8 OHMS
5"' 11 V DC (adjustable)
1.5A OR MORE
