Page #14 background imageLoading...
Page #14 background image

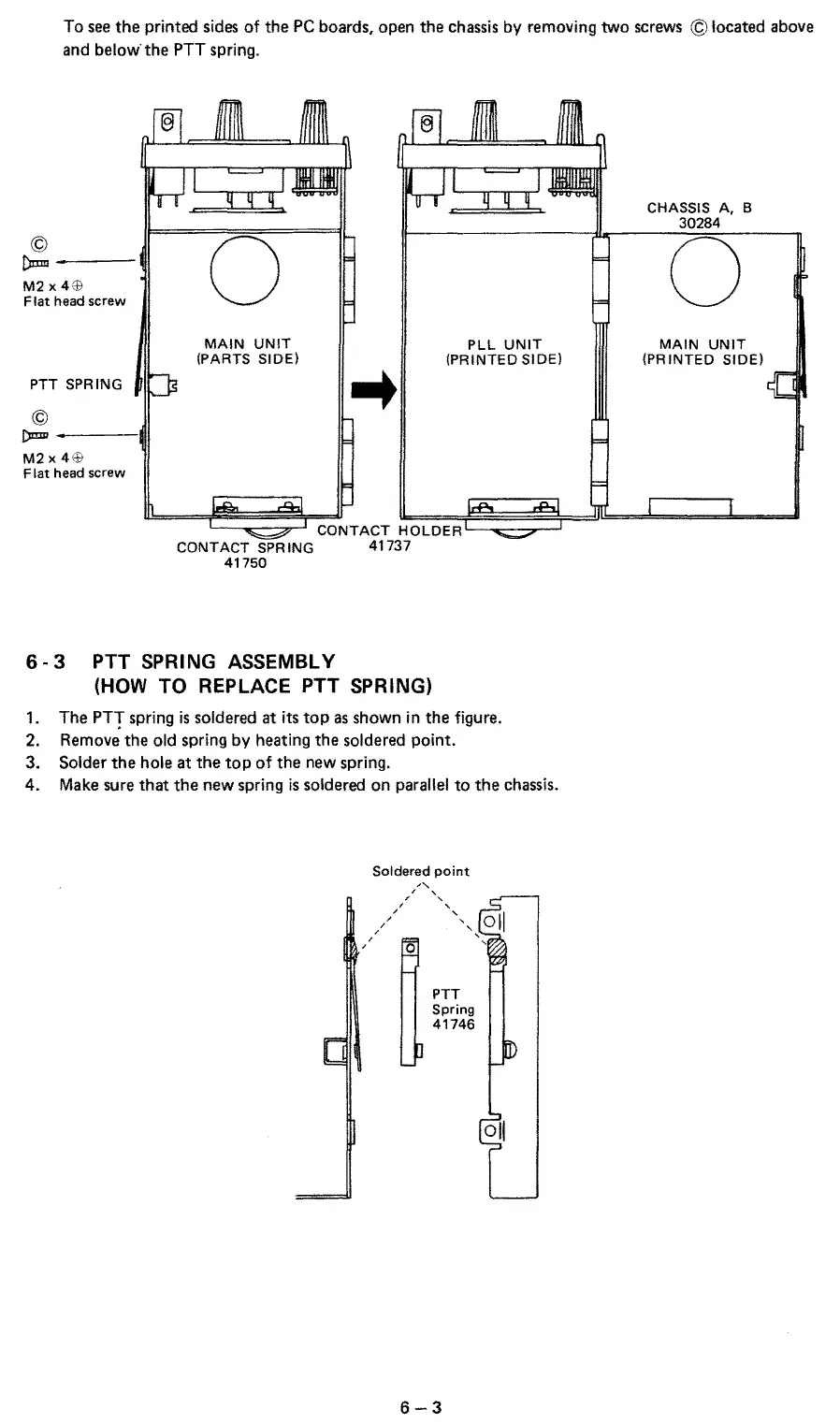

To see
the
printed sides of the
PC
boards, open
the
chassis by removing two screws
©located
above
and below· the
PTT
spring.
©
Dmn----
M2x4l'B
Flat
head
screw
PTT SPRING
©
l)mi----111
M2x4C-f!
F lat head screw
0
MAIN
UNIT
(PARTS SIDE)
PLL
UNIT
(PRINTED SIDE)
~-,...-.....,.,,..~
CONTACT
HOLDER~.....,.__,-~
CONTACT
SPRING 41737
41750
6 - 3 PTT SPRING ASSEMBLY
(HOW TO
REPLACE PTT SPRING)
1. The
PTf
spring
is
soldered at its
top
as
shown
in
the figure.
2. Remove the old spring by heating the soldered point.
3. Solder
the
hole at
the
top
of
the new spring.
4.
Make
sure
that
the
new spring
is
soldered on parallel
to
the
chassis.
Soldered
point
,
,,
, '
, '
, '
, '
, '
/ '
PTT
Spring
41746
6-3
CHASSIS
A,
B
30284
0
MAIN
UNIT
(PRINTED
SIDE)
