Icom IC-M36 Service Manual

5 - 5
ADJUSTMENT
ADJUSTMENT
ITEM
TRANSCEIVER’S
CONDITION
OPERATION VALUE
TX POWER
-High power-
(Using BP-250)
1
[RF Power
(High)]
• CH. : 16
• TX power : High
• Transmitting
1) Connect an RF power meter to the
antenna connector.
2) Adjust the TX power.
5.6 W
Except [AUS]
4.7 W
[AUS]
(Using BP-251;
With alkaline
batteries)
1
[RF Power
(A_High)]
• CH. : 16
• TX power : High
• Transmitting
2.0 W
-Low power-
(Except [FRG])
2
[RF Power
(Low)]
• CH. : 16
• TX power : Low
• Transmitting
0.75 W
(For [FRG]) 2
[RF Power
(E-Low)]
• CH. : 16
• TX power : Low
• Transmitting
0.45 W

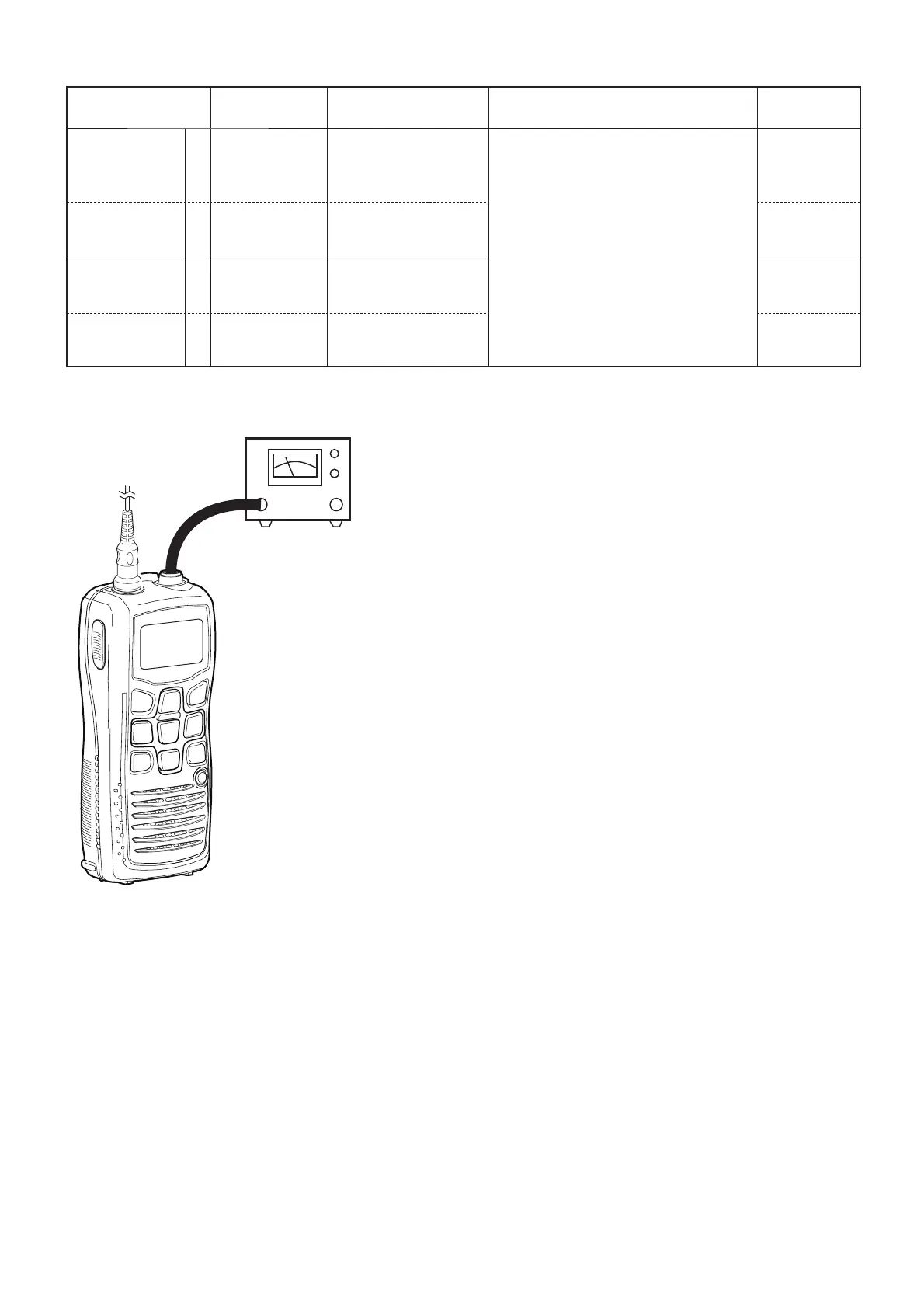

RF POWER METER
(10 W/50 Ω)
JIG cable
Select an adjustment item using [
↑
] / [
↓
] keys, then set to the specifi ed value using [
←
] / [
→
] keys on the connected PC’s keyboard.
5-4 TRANSMIT ADJUSTMENTS

Icom IC-M36 Specifications

General

Purpose	Marine Radio Service
Operating frequency	156.025 – 157.425 MHz
Antenna connector type	FA-SC58V
Number of antenna connectors	1
Battery type	BP-252
Battery life (max)	8 h
Battery low indication	Yes
Product color	Black
Waterproof up to	1 m
International Protection (IP) code	IP57
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	43 mm
Width	62 mm
Height	139.5 mm
Weight	295 g
