Installation and Servicing

SECTION 3 - SERVICING

3.2 BOILER FRONT PANEL REMOVAL / REPLACEMENT

3.3 FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING

REMOVAL

1. Loosen the two screws retaining the front panel.

2. Pull the two clips down to disengage and pull panel forward

and upward and remove.

REPLACEMENT

3. Hook the panel onto the top retaining clips.

4. Push the panel until the 2 bottom spring clips engage

ensuring the 4 control knobs line up with the holes in the

front panel.

5. Re-tighten the two retaining screws.

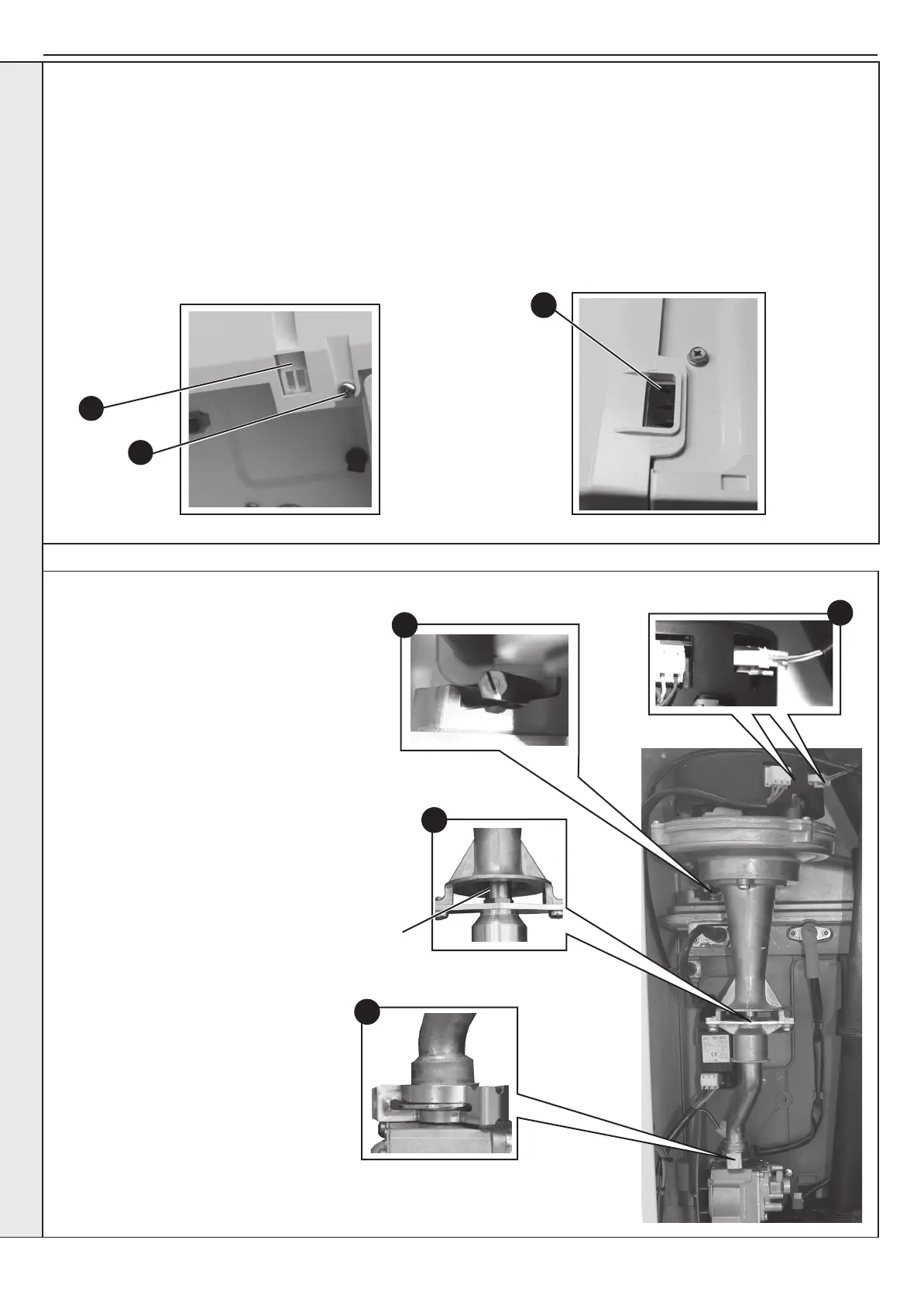

view from bottom of boiler

view from top of boiler

1. Disconnect the electrical leads from the

fan.

2. Remove the clip from the gas control

valve outlet and ease the pipe upwards.

Rotate and then ease down to remove.

3. Remove the extended nut on the fan

mounting bracket.

4. Lift off fan and venturi assembly.

5. Undo the two M4 screws and release the

nozzle assembly.

6. Inspect the injector for blockage or

damage.

7. Inspect fan outlet sealing gasket and

replace if necessary.

Injector

SERVICING
