Mexico Super RS 3/100 & 3/125 - Installation

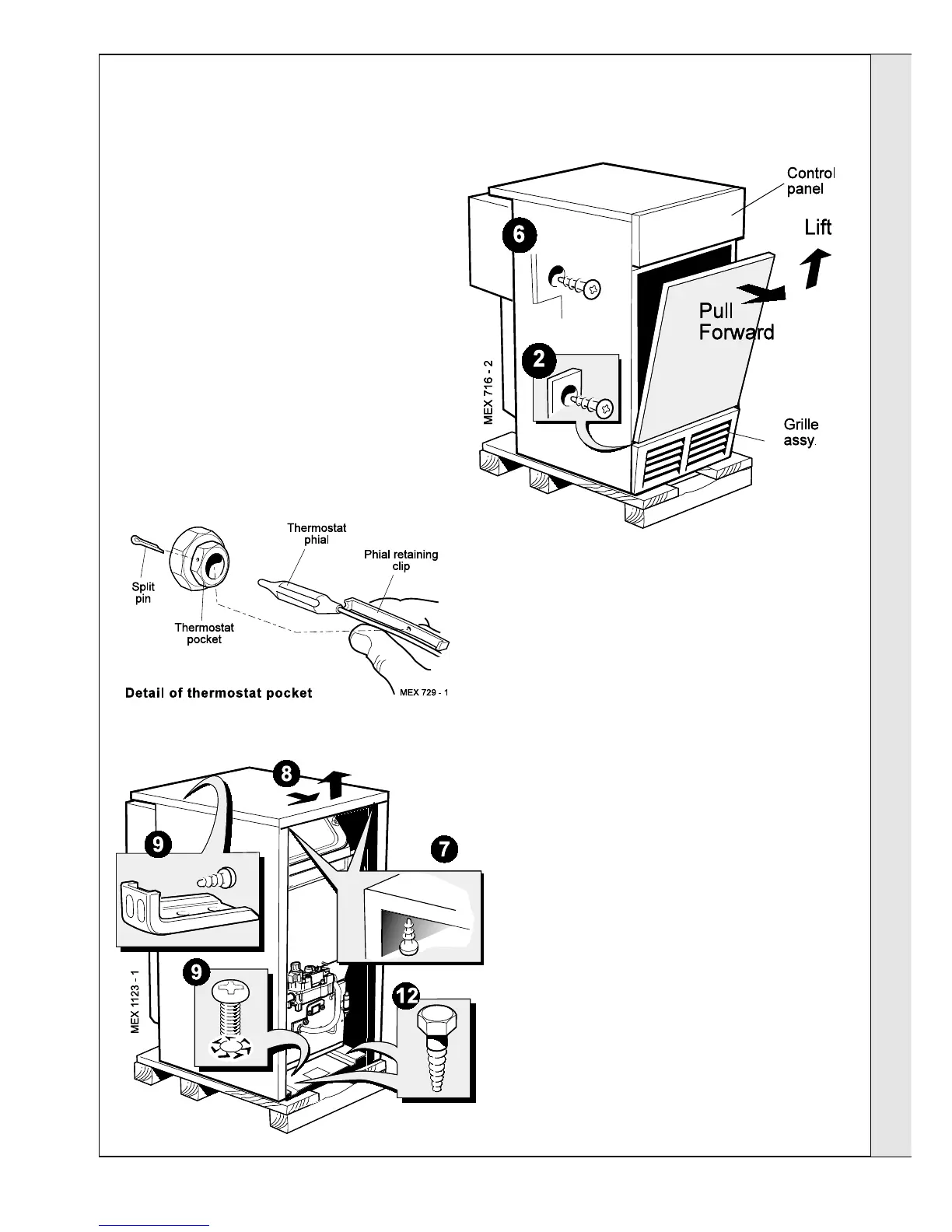

BOILER CASING REMOVAL

INSTALLATION

To install the boiler the casing MUST be removed.

INSTALLATION

1. Lift off the lower front panel.

2. Remove 2 screws and lift off grille assembly.

3. Remove the gas valve cover by removing

the retaining screw. Disconnect the

electrical leads.

4. Release the gas valve lead from the

retaining clip.

5. Remove the thermostat phial from the

pocket as shown.

6. Remove the 2 screws securing the control

panel and disengage the panel by lowering

and pulling it forward.

7. Remove the 2 screws securing the top

panel to the side.

8. Draw the top panel forward and lift it off the

boiler.

9. Remove the 2 screws securing LH side

panel to the flue collector and baseplate.

10. Pull the panel forward, lifting it clear of the

locating peg and remove.

11. Repeat steps 7 and 8 to remove the RH

panel.

12. The boiler is held to the packaging base by

4 M6 hex head screws. Remove the front

screws, slacken the rear screws and

remove the boiler from the packaging base.
