Mexico Super RS 3/100 & 3/125 - Installation

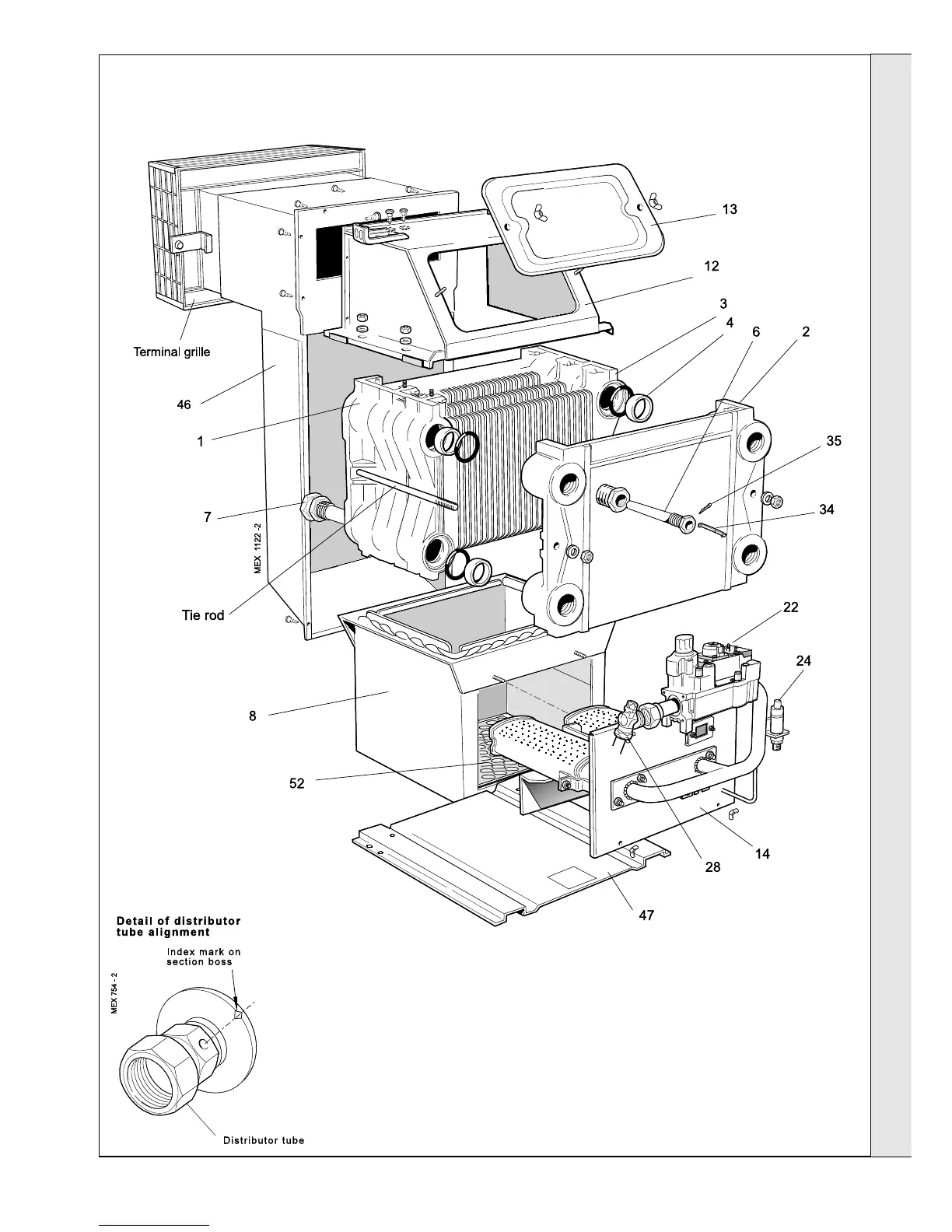

BOILER ASSEMBLY - Exploded View

Mexico Super RS with casing removed - RS 3/100 shown.

INSTALLATION

13. Cleanout cover.

14. Front plate.

22. Gas control valve.

24. Piezo unit.

28. Gas cock.

34. Phial clip.

35. Split pin.

46. Air/flue duct assy.

47. Baseplate.

52. Heat shield.

LEGEND

1. Heat exchanger assy.

2. Front section.

3. Middle section.

4. Section alignment rings & 'O' rings

6. Thermostat pocket.

7. Distributor tube.

8. Combustion chamber.

12. Collector hood.
