hipot.com 31

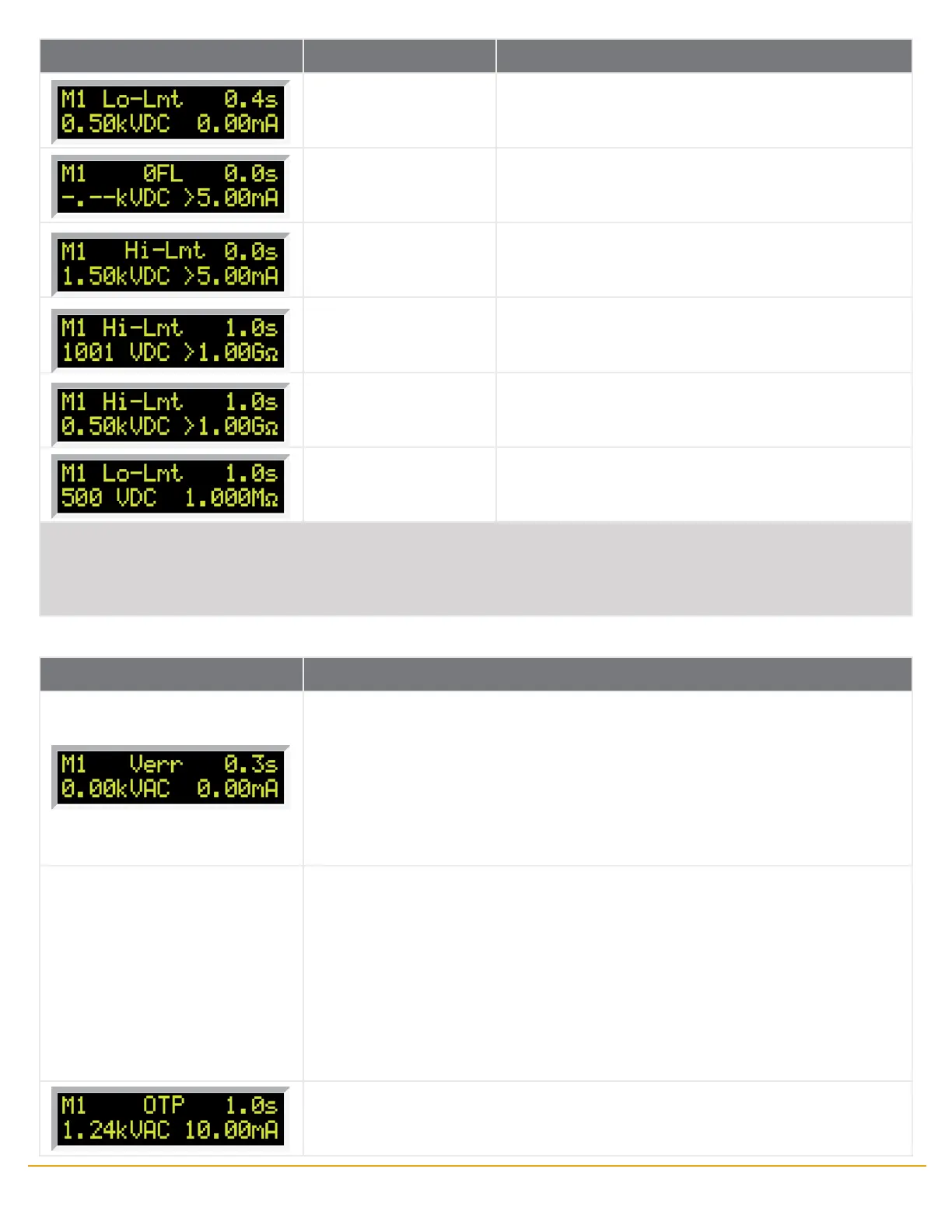

Failure Mode Display* Test Type Description
DC Hipot Displayed if the leakage current does not exceed the low
limit setting.
DC Hipot Displayed if there is a short circuit in the DUT during the
test.
DC Hipot Displayed if the leakage current exceeds the metering
range and either a short or ashover has occurred during
the test.
IR Displayed if the insulation resistance exceeds the high
limit setting, but does not exceed the metering range.
IR Displayed if the insulation resistance exceeds the high
limit setting, and exceeds the metering range.
IR Displayed if the leakage current does not exceed the low
limit setting and is within the metering range.
*For all failures, the red RESET button will illuminate and an alarm will be activated. To stop the alarm, please press the RESET
button once. The alarm will stop and the display will retain the failure information. The tester is now ready for the next test. If
the RESET button is pressed again, the failure information will be cleared and the display will indicate the setting data of the
executed test.
Error Messages
Display Description
This message appears on the display, if the tester’s output reading does not match the
setting. When the tester has an output problem and the TEST button is pressed, the
Output Error screen will appear. The failure light will illuminate and an alarm will be
heard.
Pressing the RESET key will allow you to return to the test mode. The failure light and
alarm can be cleared by pressing the RESET button. If Output Error occurs please call
the Slaughter Company Customer Support Center at 1-800-504-0055 for assistance.
All of the buttons and keys are not active in this situation. This type of failure
permanently locks the tester in the Fatal Error mode and required that the tester be
serviced by a SCI authorized service center. Contact the SCI Customer Support Center
at 1-800-504-0055 to receive further instruction.
FATAL ERROR 9002 will appear on the display, if the tester’s System data or the
Model/Option data are corrupted and do not match the setting.
FATAL ERROR 9003 will appear on the display, if the tester’s Calibration data is
corrupted.
This message appears on the screen if the tester detects an over-temperature
condition on the power amplier. The fail light will illuminate and the alarm will
be heard. The Reset key can be used to clear this failure condition.
