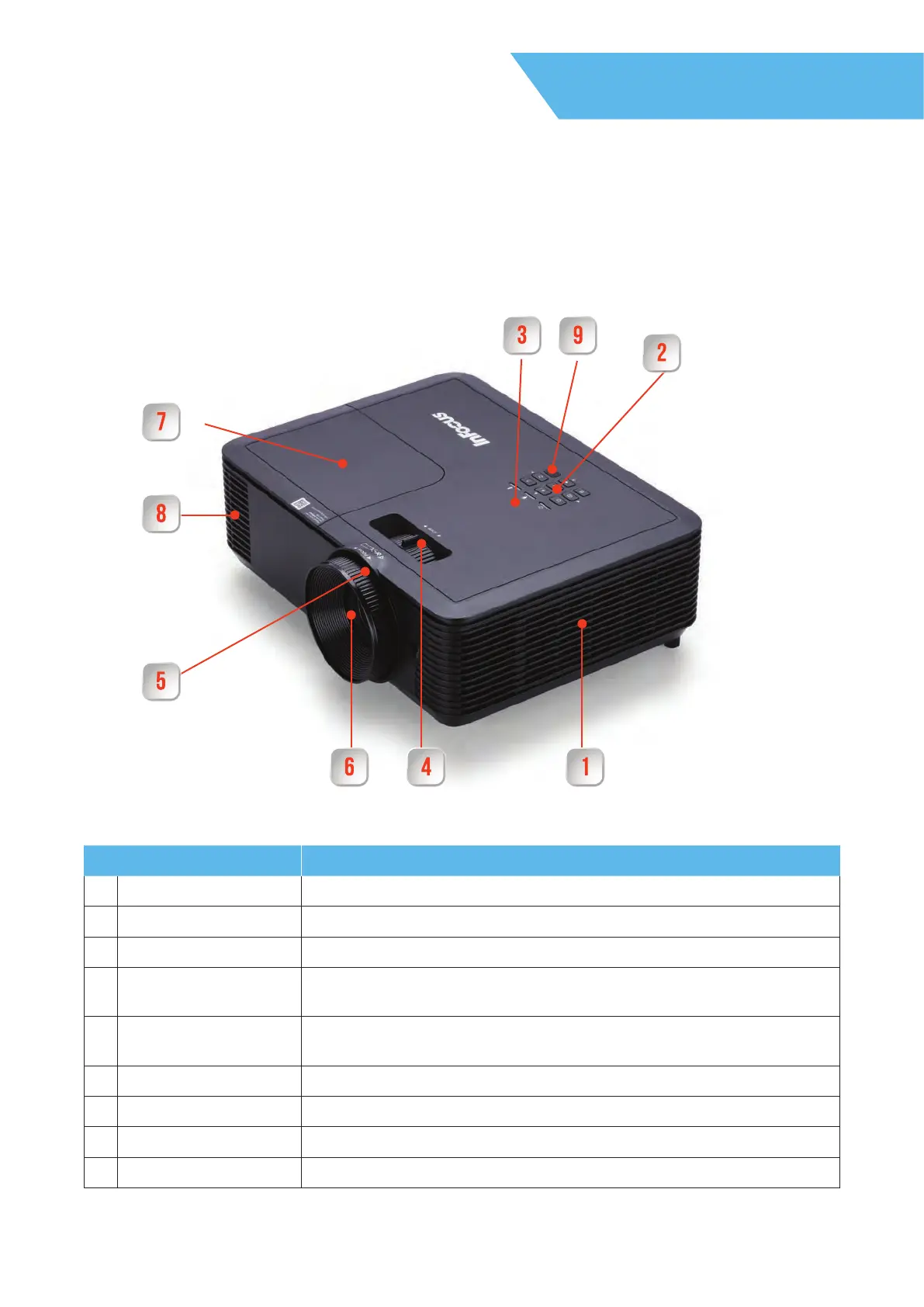

Parts and functions
Parts and functions
Name Function
1 Air Intake Vent Air to cool the projector enters here
2 Keypad Keys to operate the projector on screen display
3 Status and Warning LED’s Provide information on the status of the projector and error codes
4 Focus Ring Used to focus the image
(Not Applicable for P132 Short-Throw Models)
5 Optical Zoom Ring Used to adjust the image size using optical zoom
(Not Applicable for P132 Short-Throw Models)
6 Projector Lens Images are projected from here
7 Lamp Door Housing Housing for the projector lamp
8 Air Exhaust Vent Hot air from the projector exits here
9 IR Remote Receiver Receives commands from the remote control
Front
P130, P131, P132 6 & 9 Input/Output Models
Projector parts and functions
