4 Installation and Fixing
AC800 Series Intelligent Machine Controller Hardware User Guide
4.1.3 Safety Precautions
Precautions when installing the controller:
■ Before installation, ensure that the controller is powered o󶍽;
■ To avoid damage to the controller, do not drop or impact the controller's housing, terminal
block,and connector;
■ Do not disassemble the controller, otherwise the controller may be damaged;
■ To avoid damage to the terminal and controller, tighten all fasteners to the speci󶍾ed torque;
■ The left panel of the controller is equipped with an aluminum plate for heat dissipation. Exert
extreme caution to avoid burn.
4.2 Installation
4.2.1 Installation Dimensions

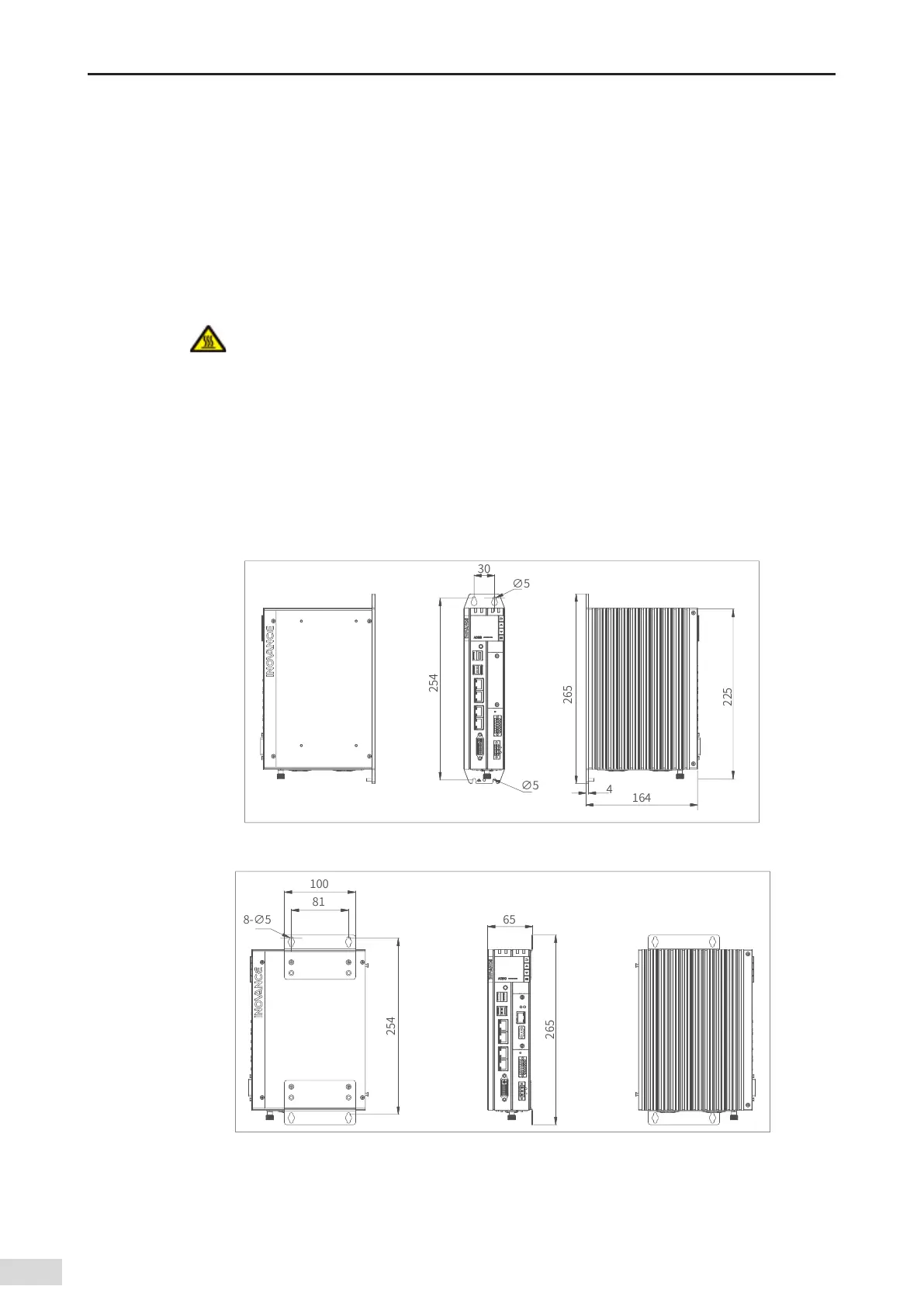

The installation dimensions of the controller are shown in the following 󶍾gure:
30
∅5
254
265
∅5
164
4
225
Figure 4-2 Installation dimensions (rear earhook)
100
254
81
8-∅5
265
65
Figure 4-3 Installation dimensions (side earhook)
