IS580 User Manual Chapter 7 Selection
- 85 -
7.5 Mounting Dimensions of Power Terminals and Recommended Cable Diameter
Note
•
The data and models recommended in the table are for reference only. The diameter of the cable the
use selects must not exceed the terminal dimensions in the gure.
•
The prerequisite of cable selection is the recommended value of PVC insulated cooper wire or cable
diameter at the ambient temperature of 40°C in the steady state. For details, refer to section 12.4 in the
IEC 60204-1-2005.

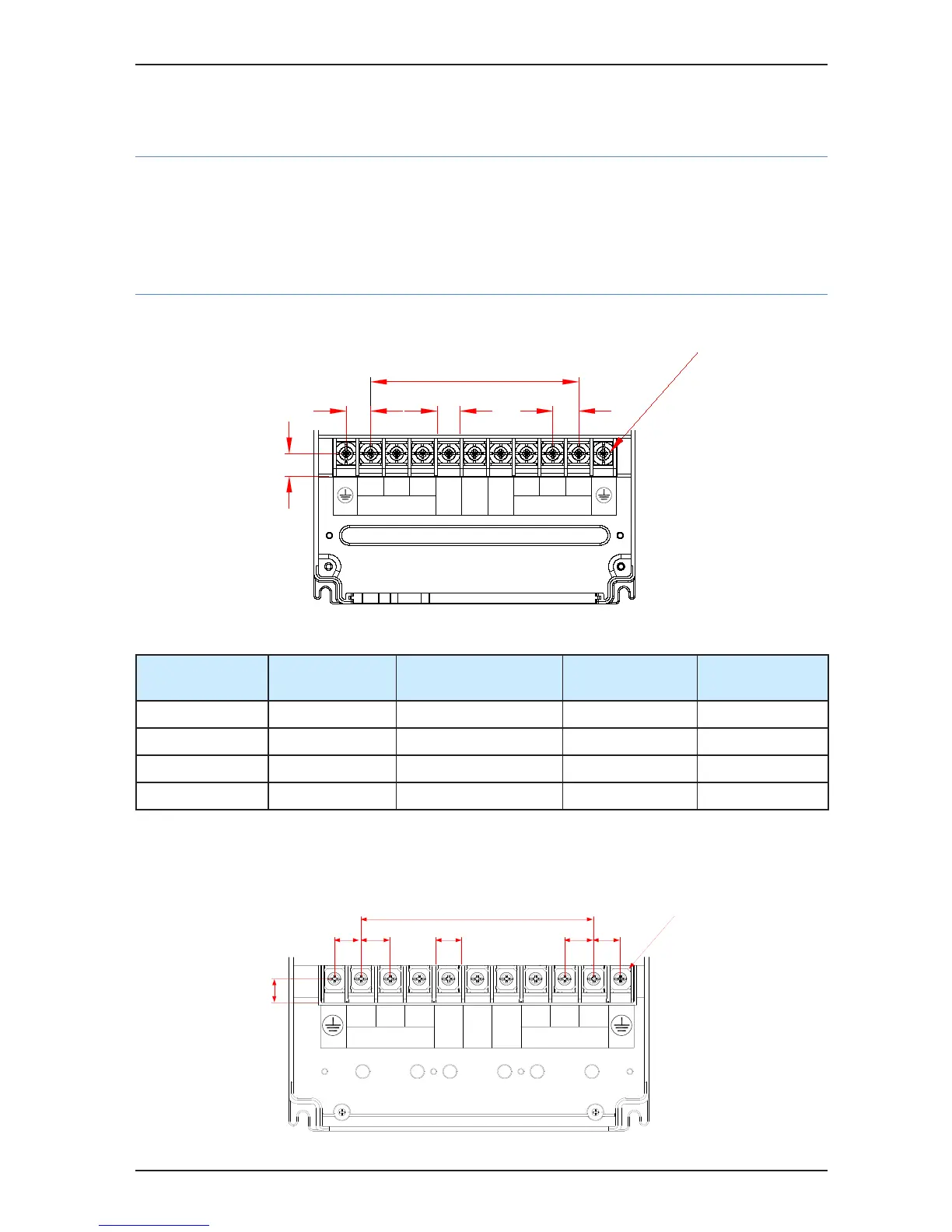

Figure 7-4 Terminal dimensions of the IS580T020/030/035/040
136
M
1516
15
17
6
Combination screw
R S T U V W
POWER MOTOR
BR
(+) -
Table 7-2 Cable dimensions and tightening torque of the IS580T020/030/035/040
Servo drive Model Rated Input
Current (A)
Recommended Cable
Diameter (mm
2
)
Tightening Torque
(N·m)
Recommended
Cable Lug Model
IS580T020-R1-1 36.3 6 4.0 GTNR6-5
IS580T030-R1-1 45.1 10 4.0 GTNR10-6
IS580T035-R1-1 49.5 10
4.0 GTNR10-6
IS580T040-R1-1 59 16 4.0 GTNR16-6
Figure 7-5 Terminal dimensions of IS580T050/070
16.5
18.4
18
20.2
20.2
18.4
161.6
M
6
combination screw
R S T U V W
POWER MOTOR
BR
(+) (-)
